Model:
BL-2300CBrand:
JINYING| Product Parameter | Parameter Descr1ption |
| Product Name | Narrow Electric Bolt Lock |
| BL-2300C | 5 Wires, Fail-safe type (Power to lock) |
| BL-2300D | 6 Wires,Fail-secure type (Power to unlock) |

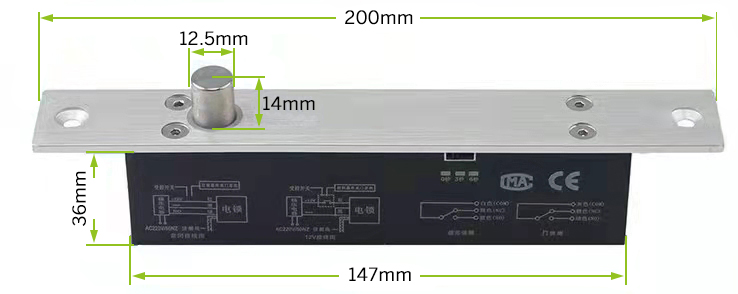

| Lock Size | 200L*28W*39H ( mm ) |
| Lock cylinder size | diameter 12.5mm, extension length 16mm |
| Sinnal Output BL-2300C | +, -, COM, NO, NC |
| Sinnal Output BL-2300D | +, -, COM, NO, NC, OPEN |
| Input | DC12V/24V |
| Working current | 150mA |
| Starting current | 1.2A |
| Holding force | 1000KG |
| Time Delay | 0/3/6 second |
