| Product Parameter | Parameter Description |
| JINYINGModel | BL-2400 |
| Product Name | Fail-Secure Electric Bolt Lock with Single Cylinder 5pcs Brass Keys |
| Feature | Fail-secure type (Power to unlock) |

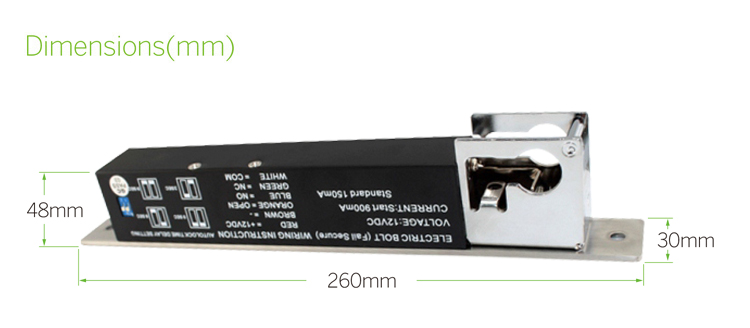

| Lock body | 260x30x38mm |
| Strike size | 100x25x2.7mm |
| Bolt | 16mm(diameter), stainless steel 16mm throw |
| Lock bolt | 16mm |
| Working Voltage | 12VDC |
| Standby Current | 150mA |
| Working current | 1350mA |
| Auto lock Time Delay | adjustable 0,3,6,9 seconds With signal output function |
| Feature | Low temperature |
| Solid Bolt | stainless steel housing, 2000Kg holding force |
| Special Designed | tested to 200,000 cycles |
| Suitable For | Wooden Door, Glass Door, Metal Door |
| Operating temperature | -10~+55°C(14~131F) |
| Operating Humidity | 0~95%(non-condensing) |
