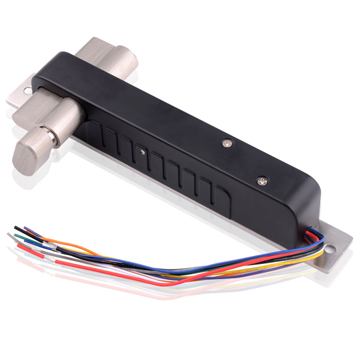

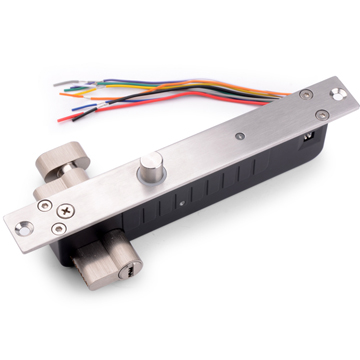

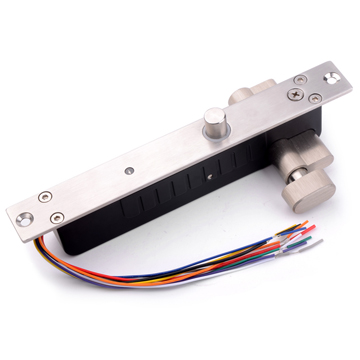

BL-2900 Dropbolt Lock Key Open Fail Secure Sturdiness Electric Manual Open Cylinder with LED indicator

Inquiry now

Parameters

Dimensions

Diagram

> Power-on unlocking type

> Door magnetic feedback signal NO/COM

> Unlocking with mechanical keys in design

> Lock core have pick-proof function in design

> Ultra-low power design, and holding current less than 0.2A

> Have LED display when open/close the door, read for open the door and green for close the door

> Super long working life, pass 200 thousand life test.

Product Parameter	Parameter Description
JINYINGModel	BL-2900
Product Name	Electric Bolt Lock With Cylinder

Lock Size	L215 * W30 * H37mm
Lock Tongue Size	Protrude Length 14mm, Diameter 12.5mm
Inbuilt Size	L170 * W25 * H34mm
Working Voltage	DC12V/24V
Working Current	Start 1.2A Holding 0.2A
Delay Function	0/3/6/9 delay can be selected

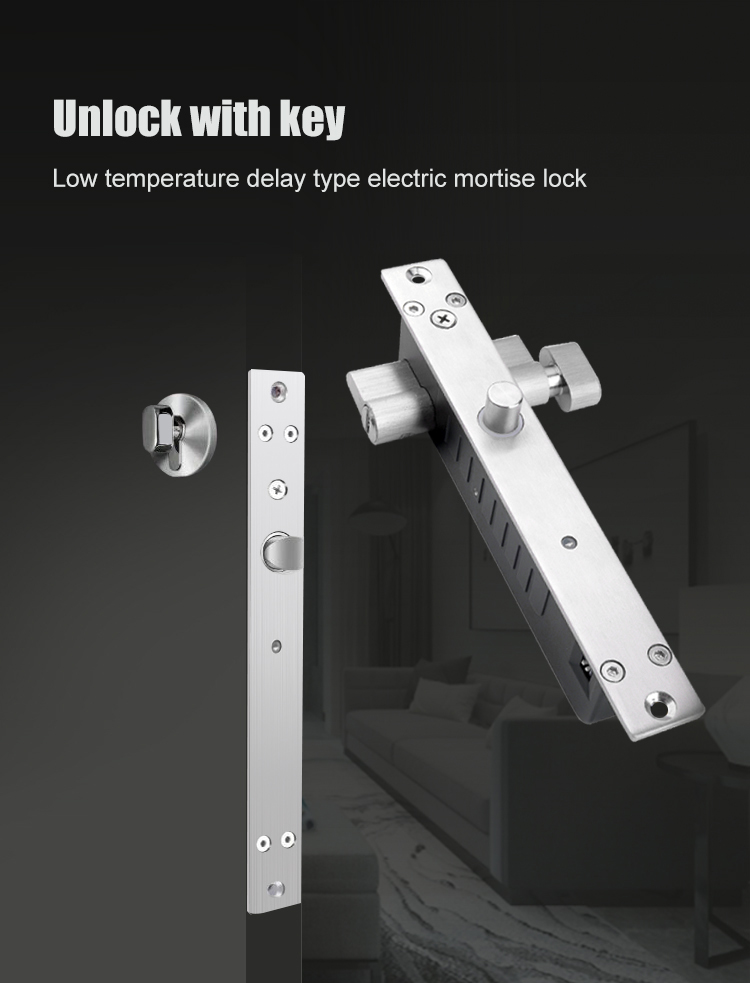

Drop Bolt Lock Key Open Fail Secure Sturdiness Electric Manual Open Cylinder with LED indicator-1.jpg

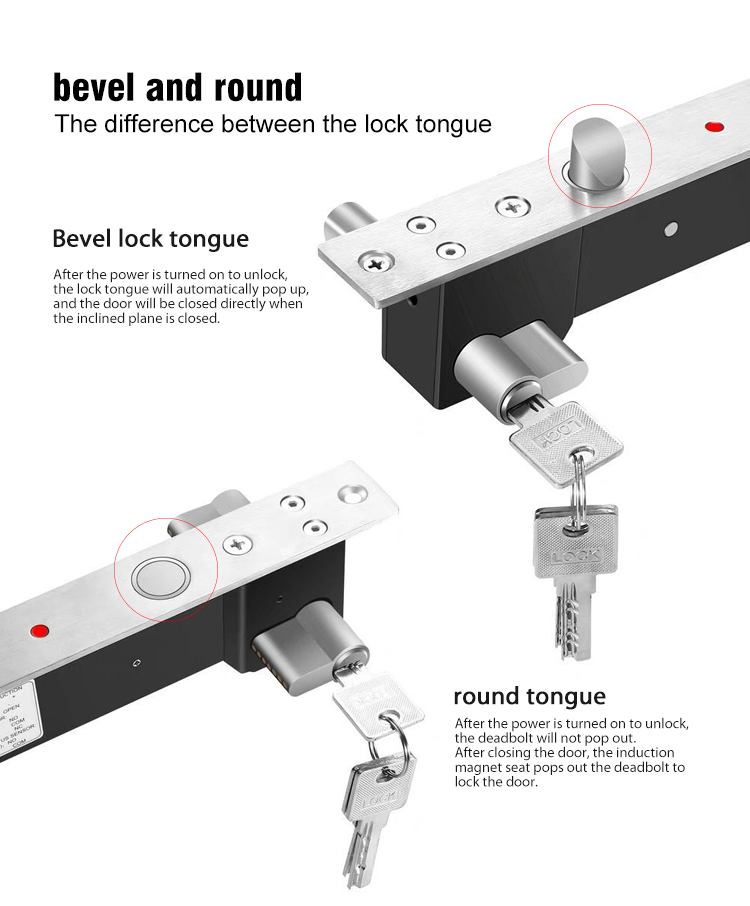

Drop Bolt Lock Key Open Fail Secure Sturdiness Electric Manual Open Cylinder with LED indicator-2.jpg

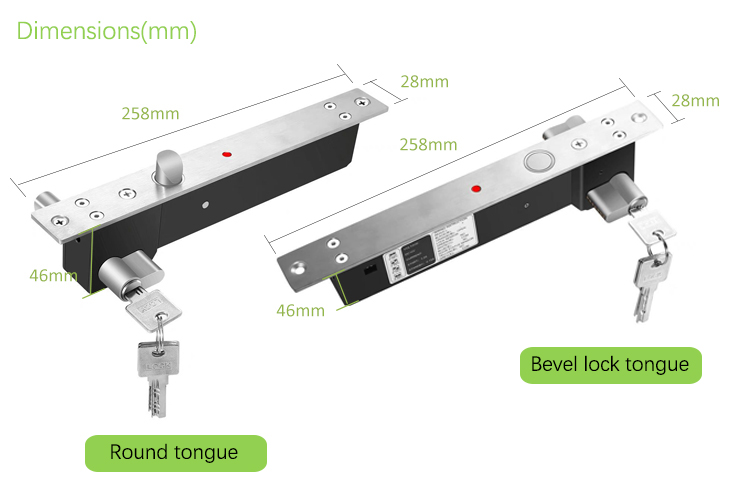

Drop Bolt Lock Key Open Fail Secure Sturdiness Electric Manual Open Cylinder with LED indicator (3).jpg

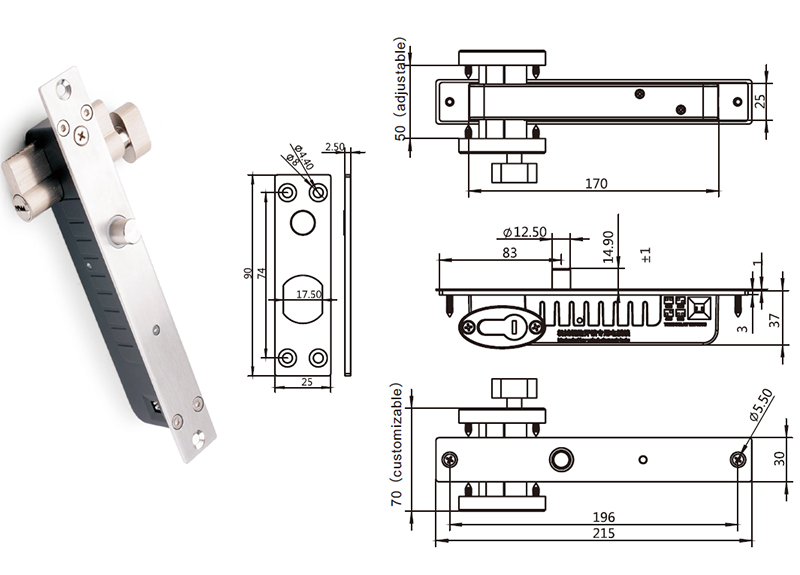

Electric Bolt Lock With Cylinder Dimension.jpg

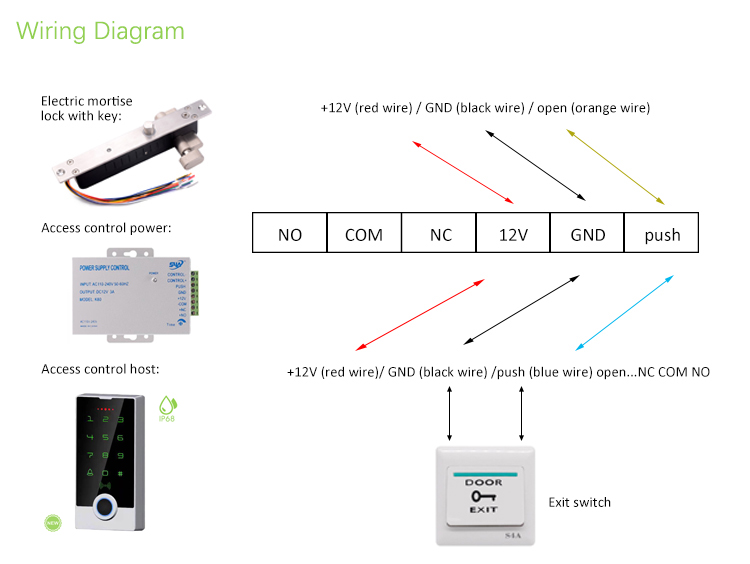

Drop Bolt Lock Key Open Fail Secure Sturdiness Electric Manual Open Cylinder with LED indicator (2).jpg

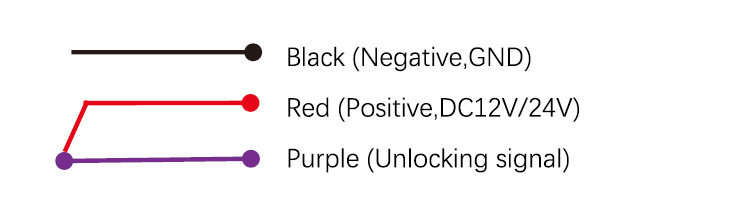

5 wires Electric Bolt Lock Power-On unlocking

The lock will unlocking when purple wire contact with red wire after plug in power supply.

Bolt Lock diagram.jpg

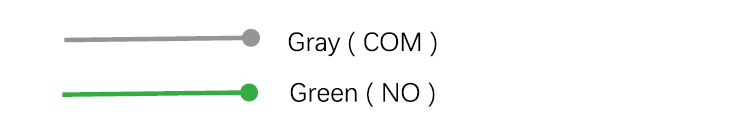

Green wire and gray wire in a closed state when the door magnetic iinduction.

and in a off state when magnetic move away.

Bolt Lock diagram-.jpg
