| Product Parameter | Parameter Description |
| JINYINGModel | ES-130 series |

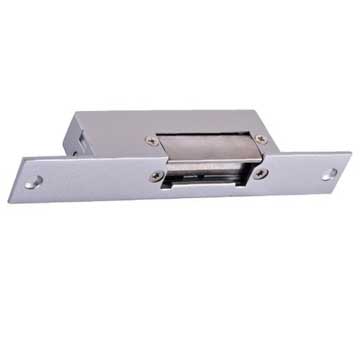

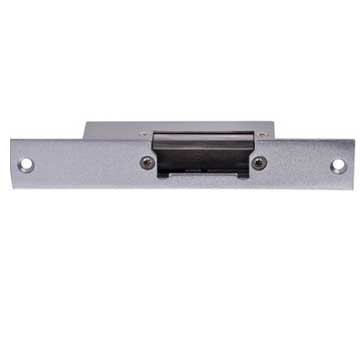

| Product Name | Narrow-type Electric Strike lock |
| ES-130A | Fail-secure type (Power to unlock) |
| ES-130B | Fail-safe type (Power to lock) |

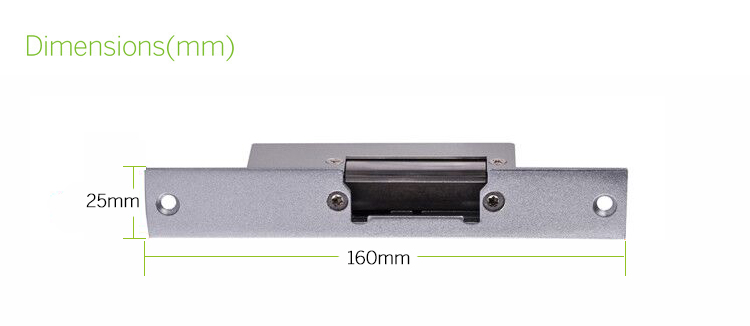

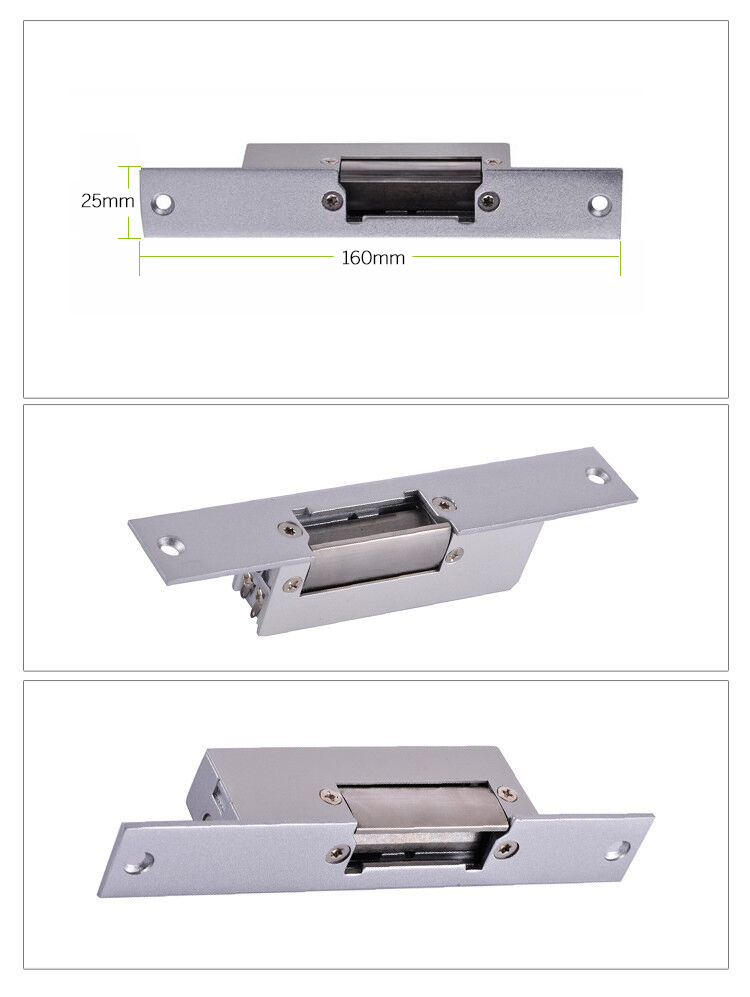

| Lock Size | 160Lx25Wx31H(mm) |
| Holding Strength | 800kg |
| Bolt structure | Stainless Steel |
| Voltage | 12VDC |
| Current | 450mA(ES-130A) / 200mA(ES-130B) |
| Feature | ES-130A |
| Fail-secure type (Power to unlock),ES-130B | Fail-safe type (Power to lock) |
| Surface Temperature | Within +20°C |
| Suitable Temperature | -10~+25°C(14-131F) |
| Face plate Housing | Painted Steel |
| Bolt Housing | Stainless steel,Draw the Polishing of silk |
| Function | Built-out MOV |
| Suitable For | Wooden Door,Metal Door,PVC Door |
| Opening Mode | 90 Degree Swinging Door |
| Unit Weight | 0.38KG |
| Standard Package | 30PCS |
| Carton Weight | 11.5KG |
| Carton Size | 55*31*21 (cm) |
