| Product Parameter | Parameter Description |
| JINYINGModel | ES-180 |

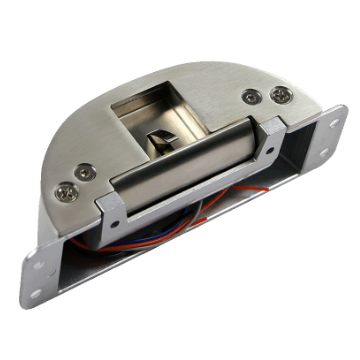

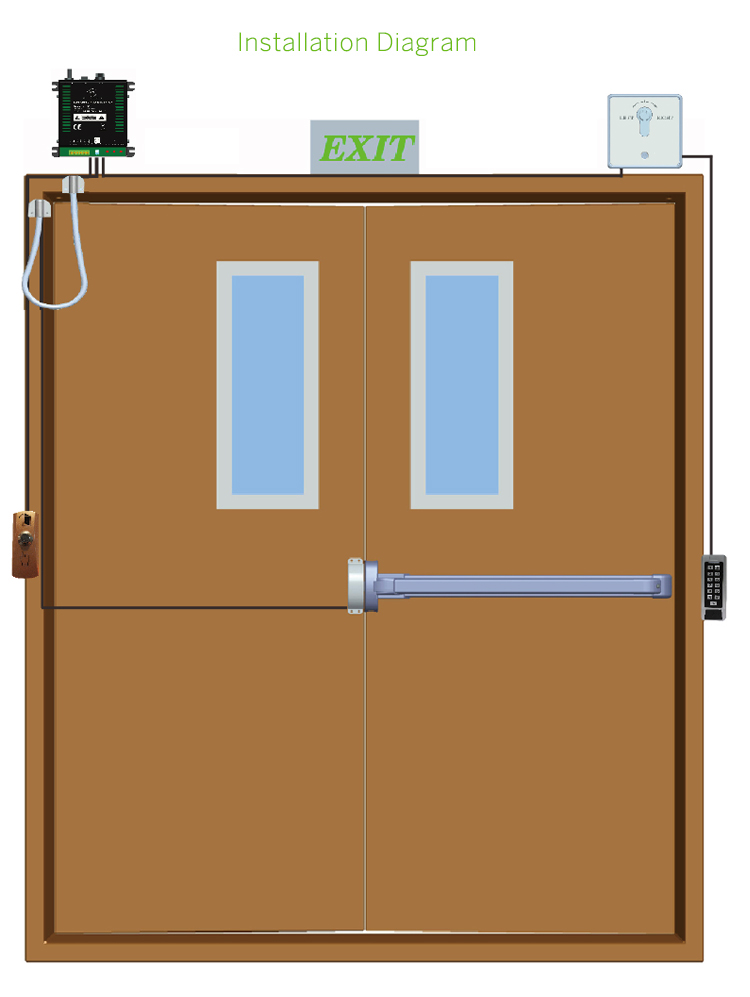

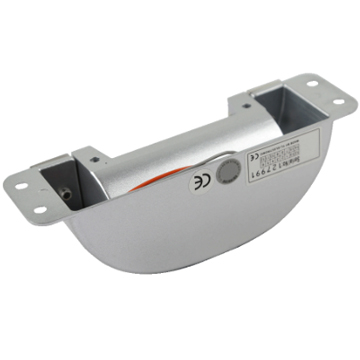

| Product Name | Electric Strike for Push Bar (Double Door) |

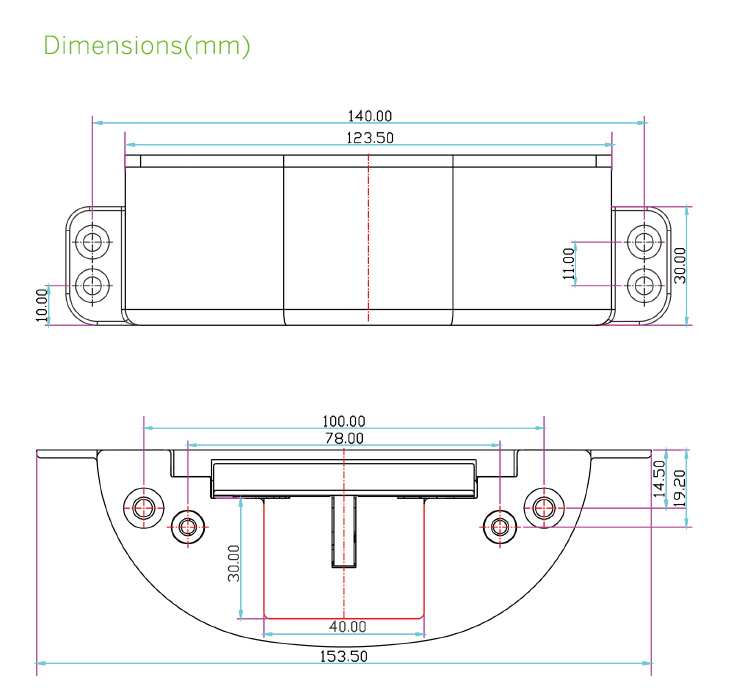

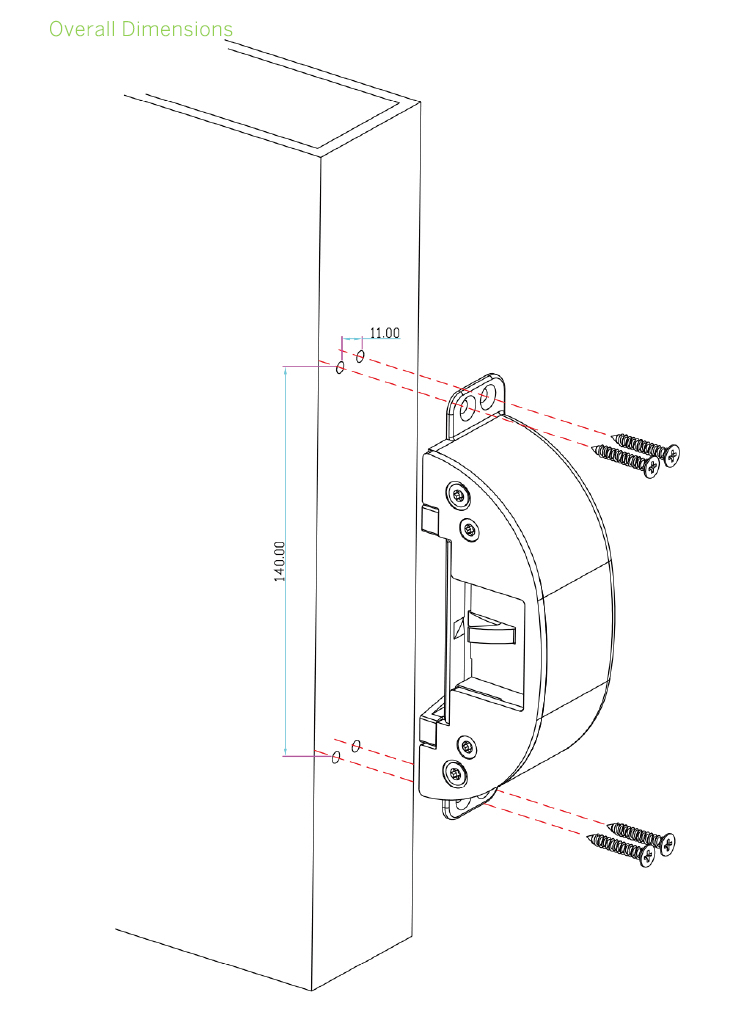

| Lock Size | 153.5Lx43Wx49H(mm) |
| lock tongue structure | 304 Stainless Steel |
| Holding Force | 1000kg |
| Voltage | DC12C (24V need order) |
| Current | 12V/220mA |

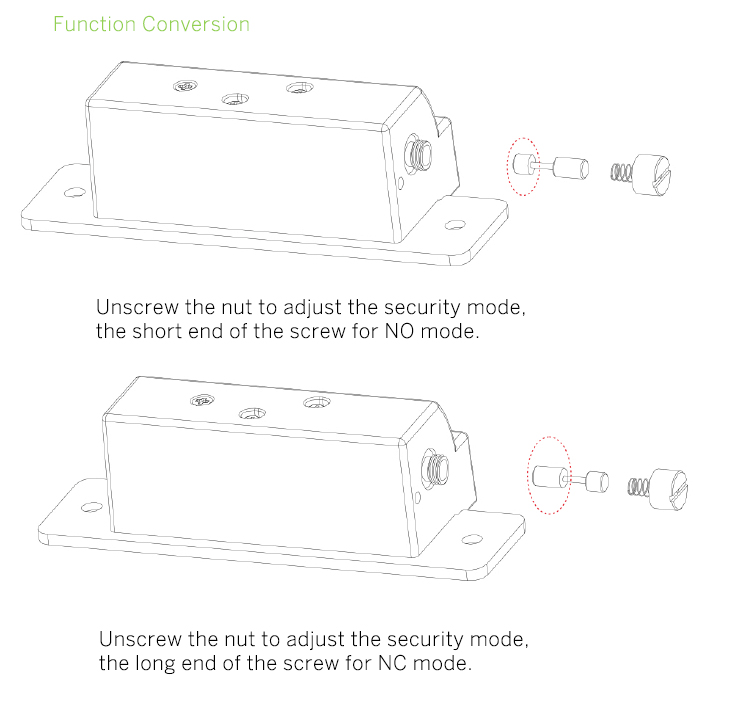

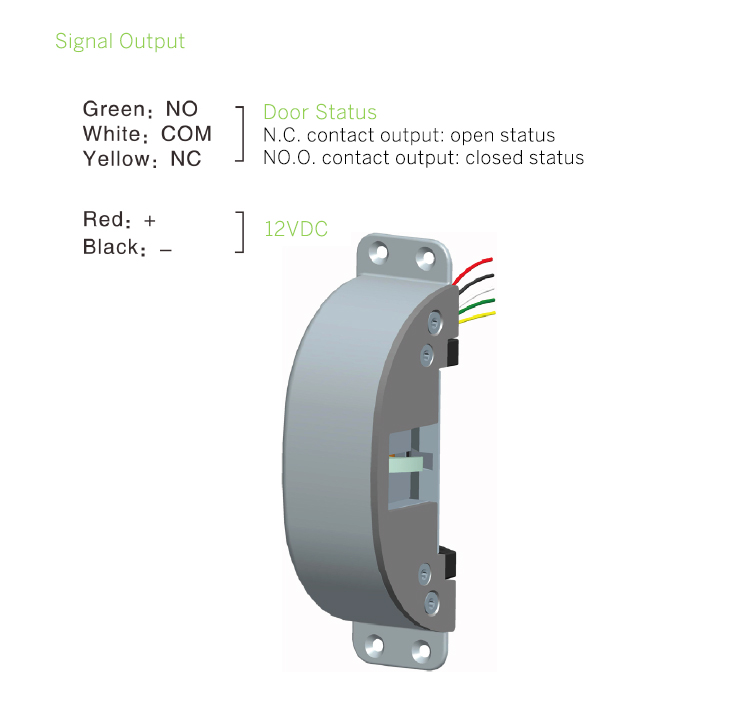

| Signal Output | Door sensor NO/NC/COM |
| specialdesign | applies to all brands offirepush rod lock |
| Suitable For | European & American fire push bar |
| Surface Temperature | Within +20℃ |
| Suitable Temperature | -10~+55℃(14-131F) |
| Operating Humidity | 0～90%(non-condensing) |
| Face plate Housing | High temperature paint |
| Lock tongue | Surface by coating nickel |
| The dooropen | 90 degrees |
| Weight | 0.52kg |
