| Product Parameter | Parameter Description |
| JINYINGModel | ES-190 |

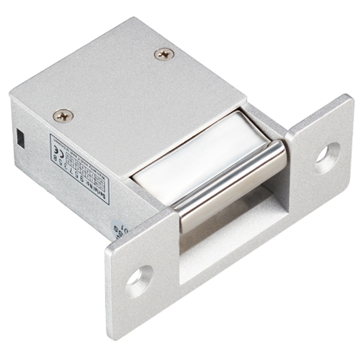

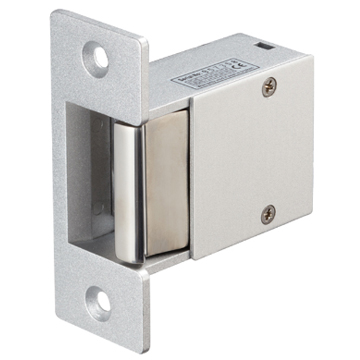

| Product Name | European Type Electric Strike Lock |

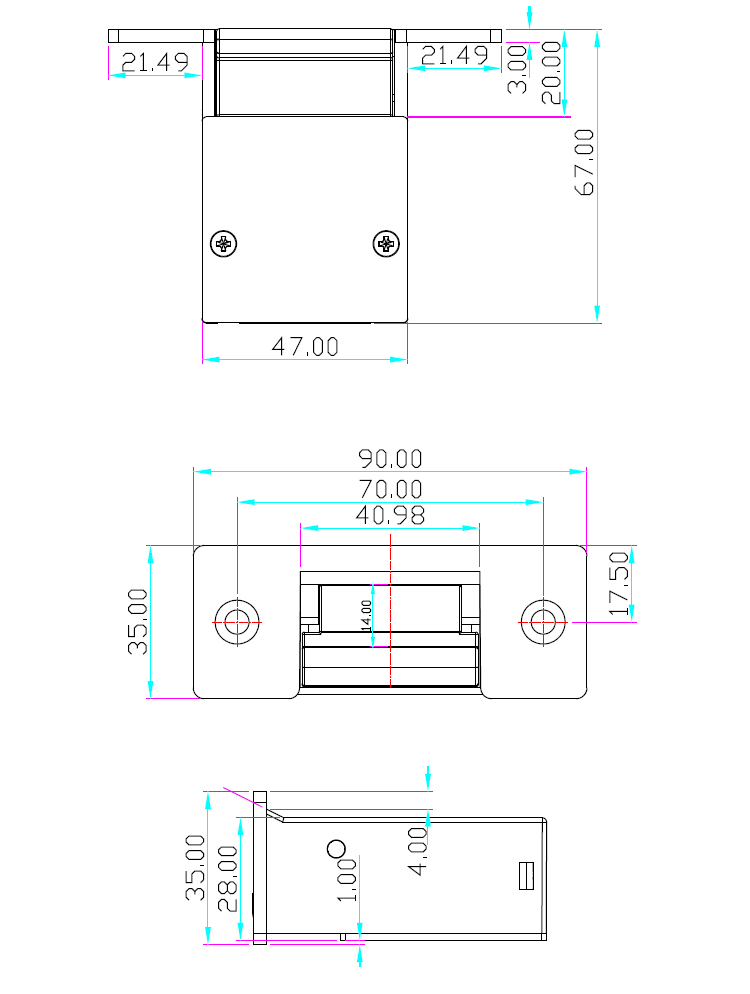

| Lock Size | 90Lx35Wx67H(mm) |
| Strike Structure | Stainless Steel |
| Holding Force | 500kg |
| Voltage | 12/24 VDC/AC |
| Current | 12V/550mA; 24V/1100mA |
| Feature | Fail Secure |
| Suitable For | Wooden Door,Metal Door,PVC Door |
| Surface Temperature | Within +20℃ |
| Suitable Temperature | -10~+55℃(14-131F) |
| Operating Humidity | 0～95%(non-condensing) |
| Face plate Housing | Painted Steel |
| Function | Built-out MOV |
| Applicable temperature | -10～55°C(14-131F) |
| Weight | 0.3kg |
Electric Strike Lock is suitable for Wooden doors, Metal doors and PVC doors etc.

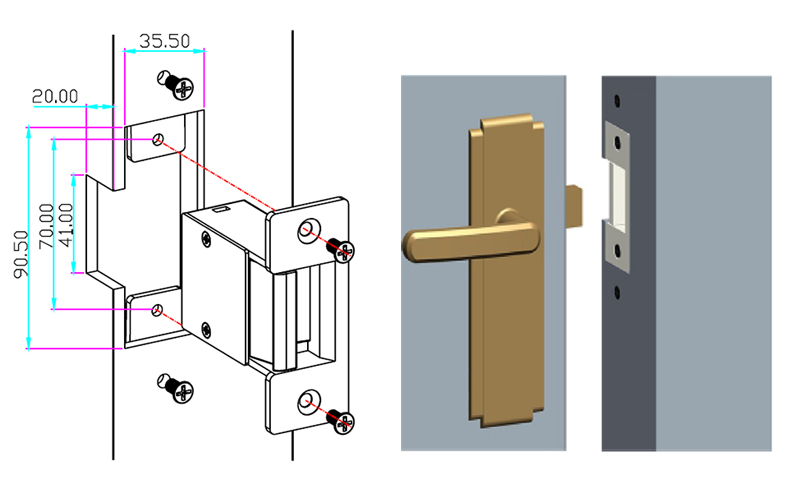

Installation:
1. Open hole based on lock's size
2. Install lock into the hole,electrify it, then test it.
3. Screw up, fasten it.
4. Running
Wiring:
Two white wires connect with 12VDC /AC or 24VDC/AC
Attention:
For electric lock ( Fail secure ), setup in access control of unlocking time should not exceed 10secs,
should not let electric lock keeps being electrified all the time.
