Model:
ER-D3LBrand:
JINYING| Product Parameter | Parameter Description |
| JINYINGModel | ER-D3L |

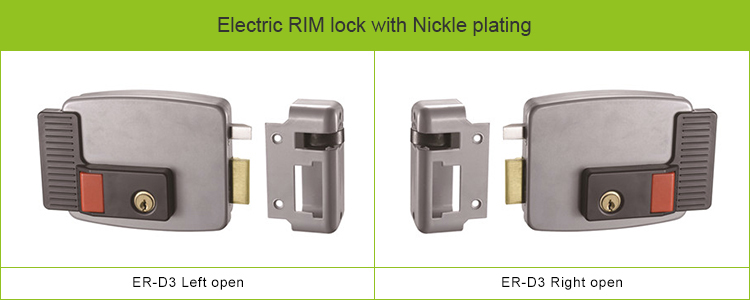

| Product Name | CISA Lock with Nickle |
| Double connected cylinders electric rim lock Brass connected lock cylinders Lock body: steel Brass big latch; Brass small bolt With strike plate With plastics roller With press button With NC/NO function | |
| Surface finished | silver gray painted |
| Lock thickness | 2mm |
| Keys | 5pcs brass keys with nickel plated |

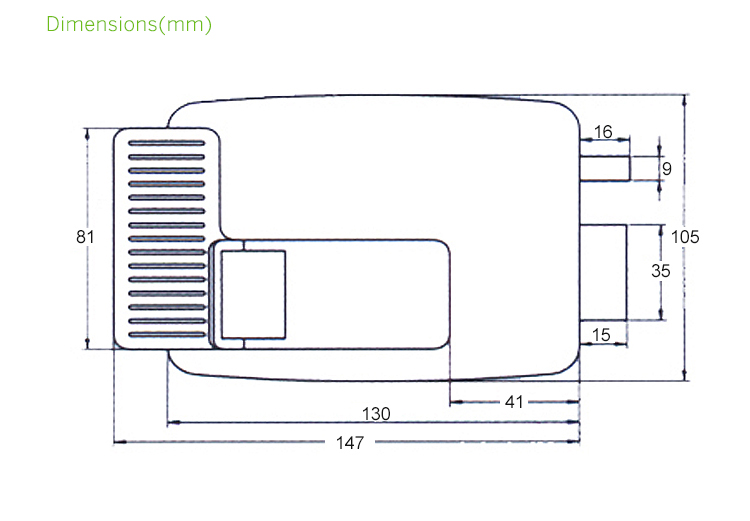

| Lock size | 148x107x35mm |
| Voltage | 12-18VDC |
| Current | 3A |
| Keys | 5 pieces, brass and nickle plating |
| Working voltage | 12V DC |
| Working current | 3A |
| Operation time | 0.5s |
| Suitable for | Metal door, wooden door, Stainless steel door |
| Warranty | 2 years or >200,000 times |
| Door thicknesses | 35 to 50mm |
| Cylinder | brass |
| Use of electronically controlled, key or manually to open door | |
| JINYINGModel | ER-D3 |
| Packing Quantity | 12 PCS/CTN |
| Packing Size(L*W*H) | 36.7*34.2*23.5 (cm) |
| Gross Weight | 20KG |
