Model:
FR-002Brand:
JINYING| Product Parameter | Parameter Description |
| JINYINGModel | FR-002 |

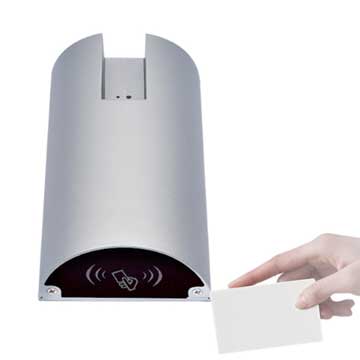

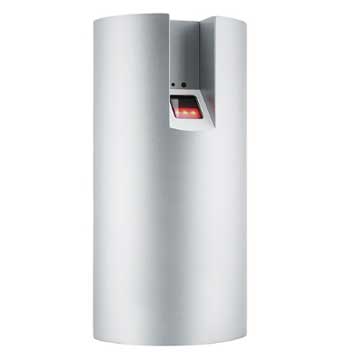

| Product Name | Fingerprint RFID Reader Built In Wiegand Output And TCP/IP |
| Support | Mifare cards 13.56MHz + Finger |
| Input Voltage | 12VDC |
| Static current | ≤150mA |
| Working current | ≤300mA |
| Fingerprint capacity | 1000 |
| Fingerprint resolution | 450DPI |
| Fingerprint research time | <1.0s |
| Fingerprint recognition false rate | <0.001% |
| False Reject Rate | <1.0% |
| Output format | Wiegand |
| Working temperature | -20℃ ~ 50℃ |
| Working humidity | 20% ~ 95% |

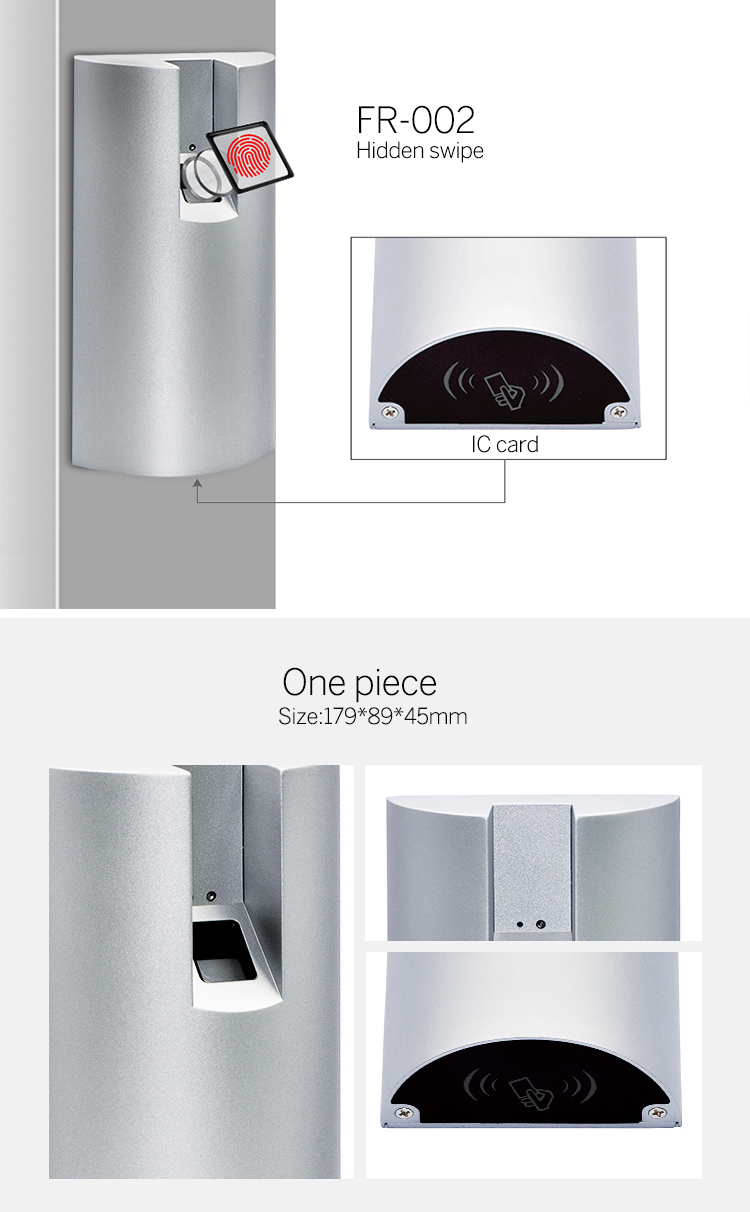

| Dimension | 179 * 89 * 45mm |

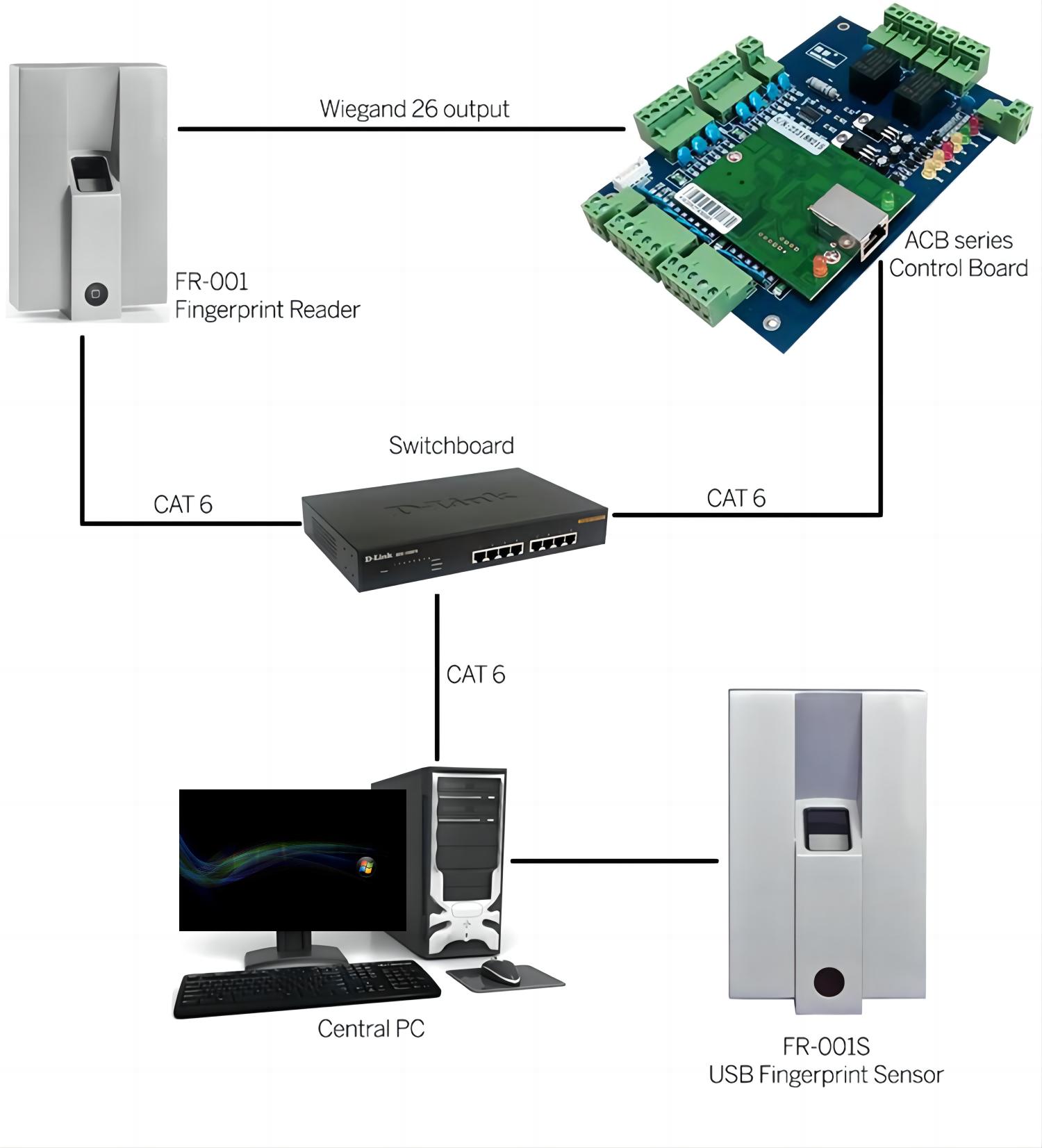

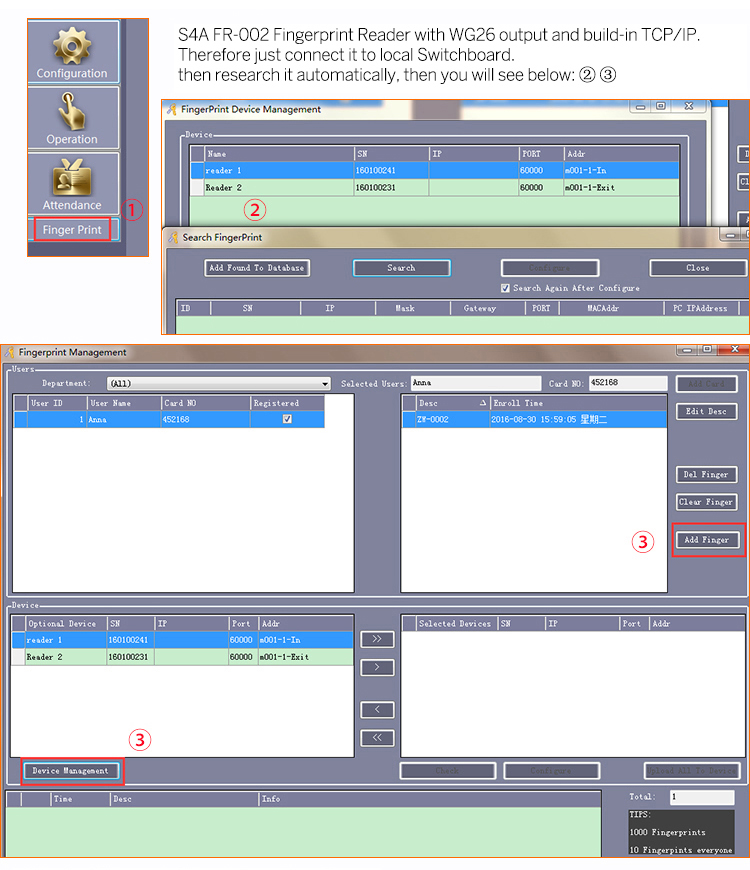

JINYINGwill guide you How to activate this function:
Fingerprint Reader/Sensor Function, What we could get:
IF there are 10pcs Fingerprint Reader,
as before, We need to enroll it one by one or enroll it by USB then upLoad/download.
Here now, We will do it in a simple way, as below:
IF we take JINYINGFingerprint Reader/Sensor.

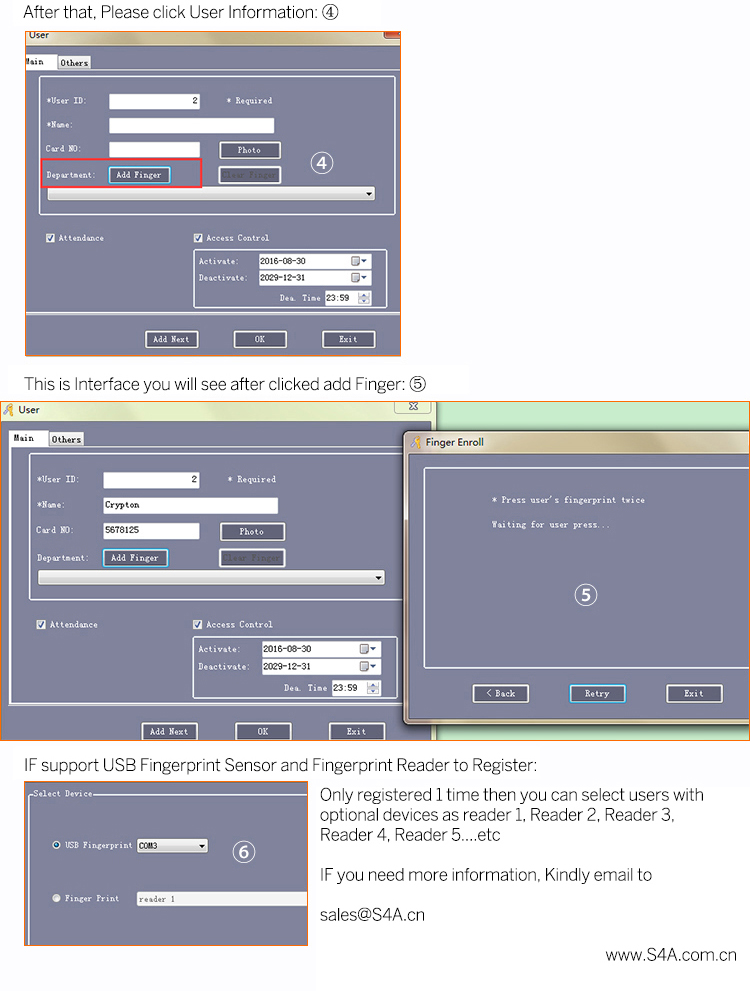

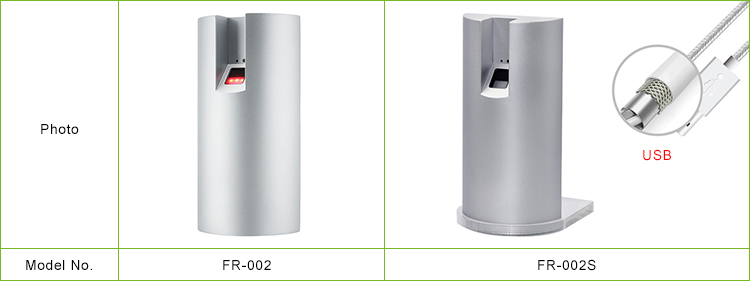

Just enroll it via FR-002S USB Fingerprint Sensor then upload to A,B,C,D,E,F etc units.
Very simple and friendly to manage users by ACB Software.
