Model:
FR-002SBrand:
JINYING| Product Parameter | Parameter Description |
| JINYINGModel | FR-002S |

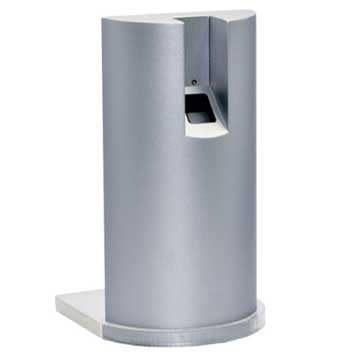

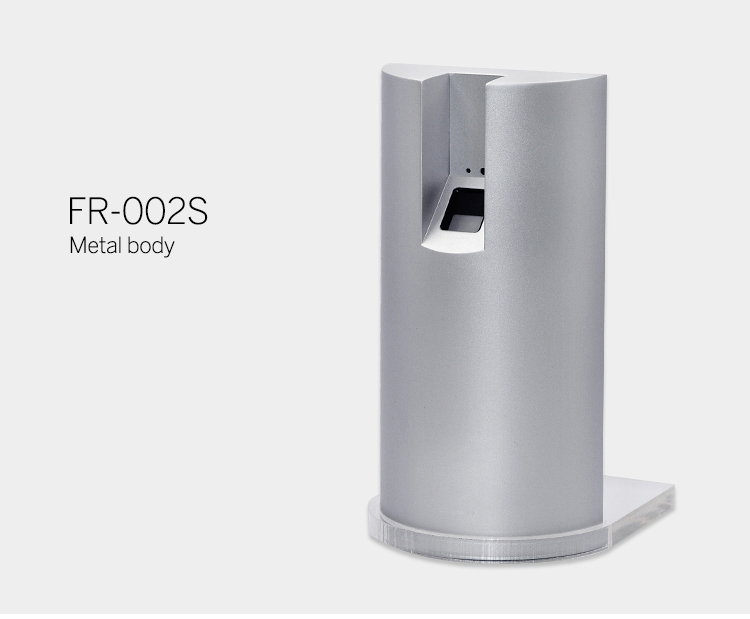

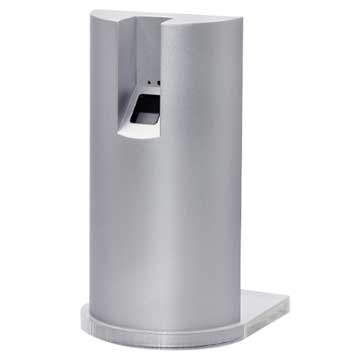

| Product Name | USB Fingerprint Reader Issuing Device |
| Operating Voltage | 5VDC USB |
| Working current | ≤100mA |
| Fingerprint capacity | 1000 |
| Fingerprint resolution | 450DPI |
| Fingerprint research time | <1.0s |
| Fingerprint recognition false rate | <0.001% |
| False Reject Rate | <1.0% |
| Working temperature | -20℃ ~ 50℃ |
| Working humidity | 20% ~ 95% |
| Dimension | 179 * 89 * 45mm |

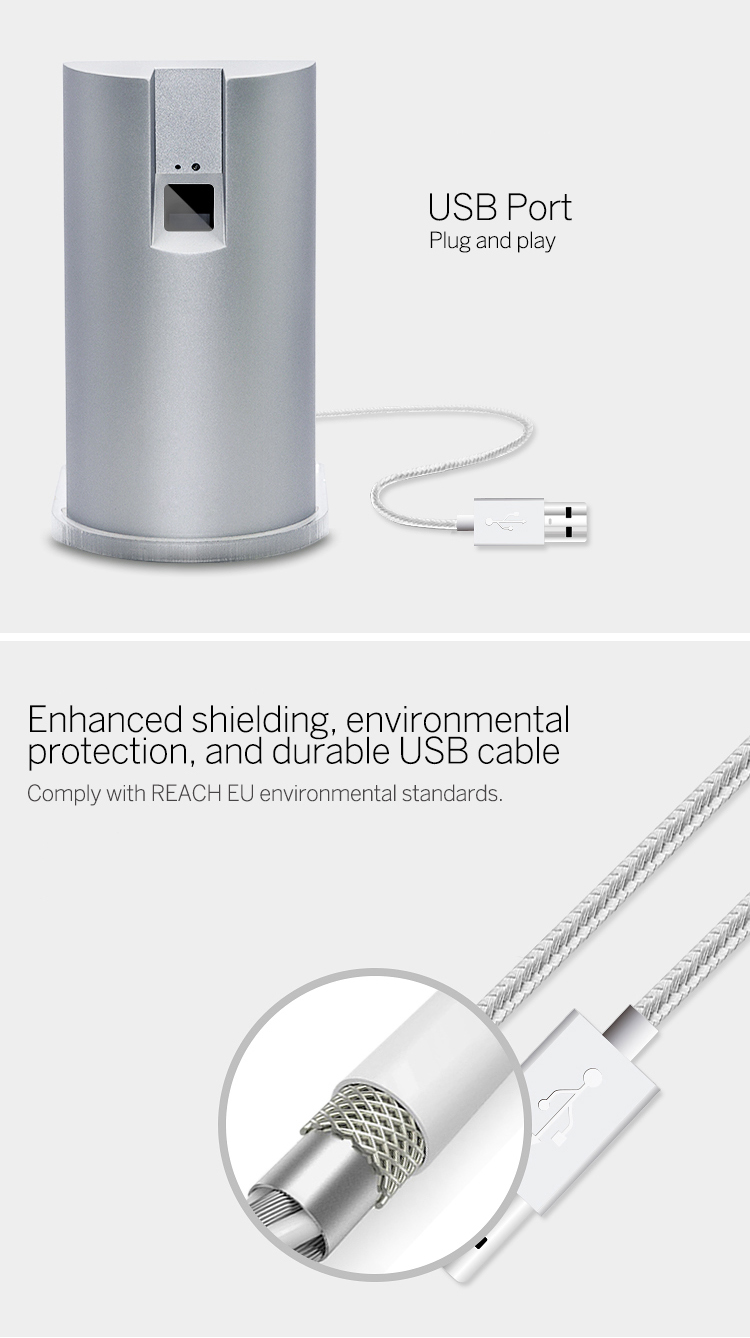

| Communication method | USB |
| Operating system | XP / Windows7 / Windows8 / Windows10 |
| Weight | 0.8KG |
| Standard Package | 39PCS/CTS |
| Carton Weight | 31.2KG |
| Carton Size | 41*56*38 (cm) |

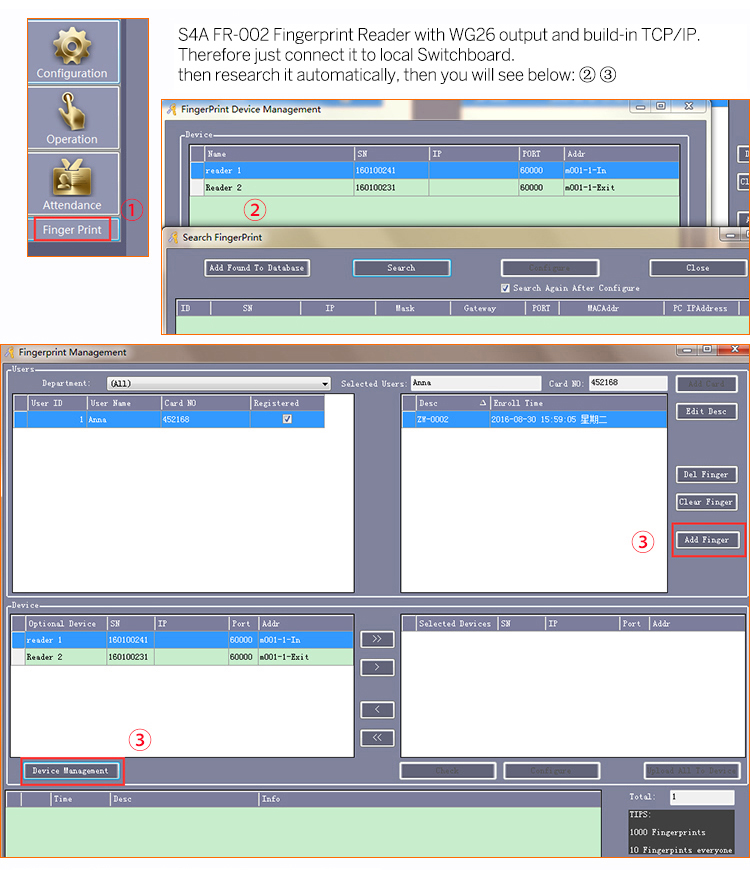

JINYINGwill guide you How to activate this function:
Fingerprint Reader/Sensor Function, What we could get:
IF there are 10pcs Fingerprint Reader,
as before, We need to enroll it one by one or enroll it by USB then upLoad/download.
Here now, We will do it in a simple way, as below:

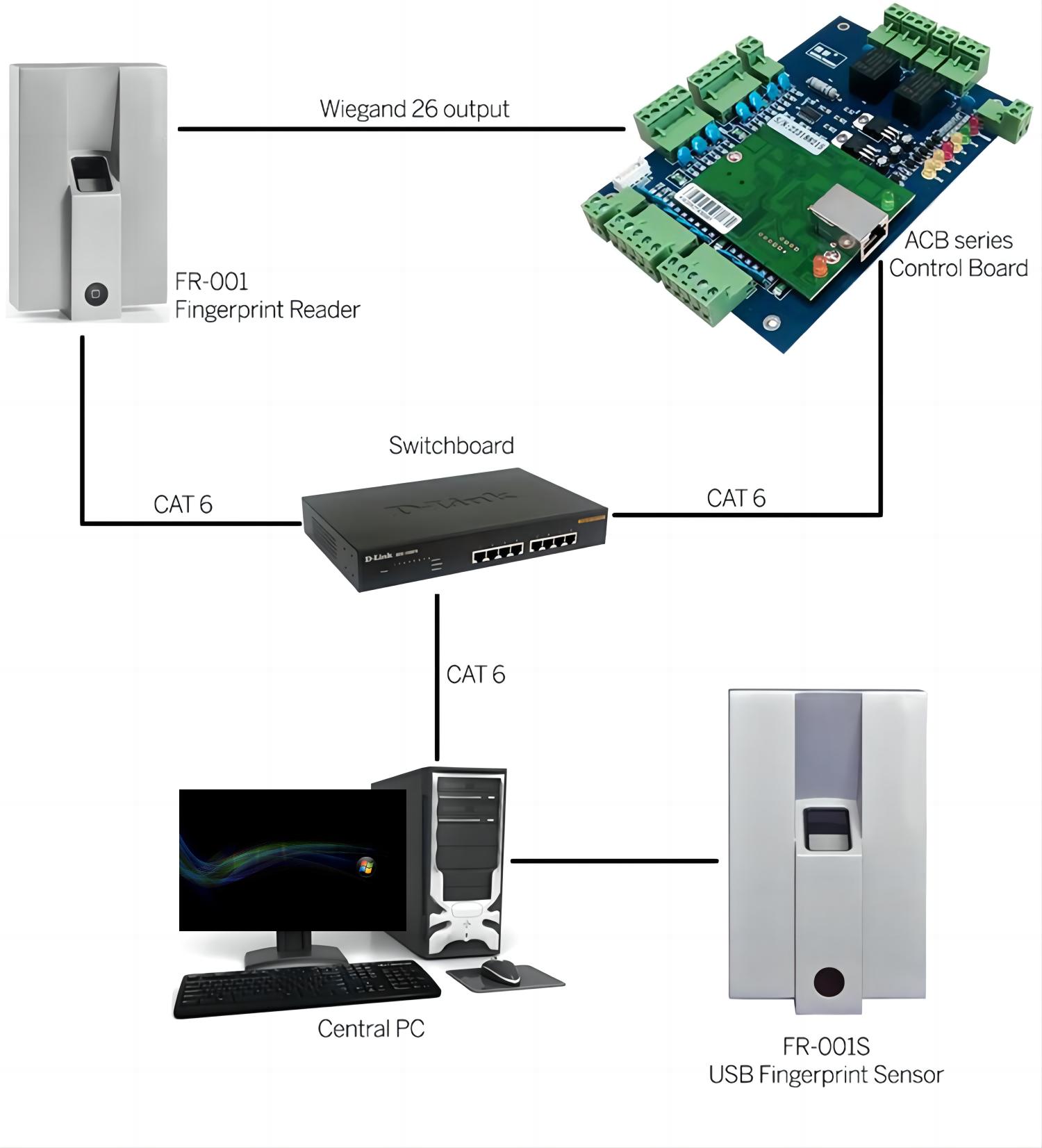

IF we take JINYINGFingerprint Reader/Sensor.

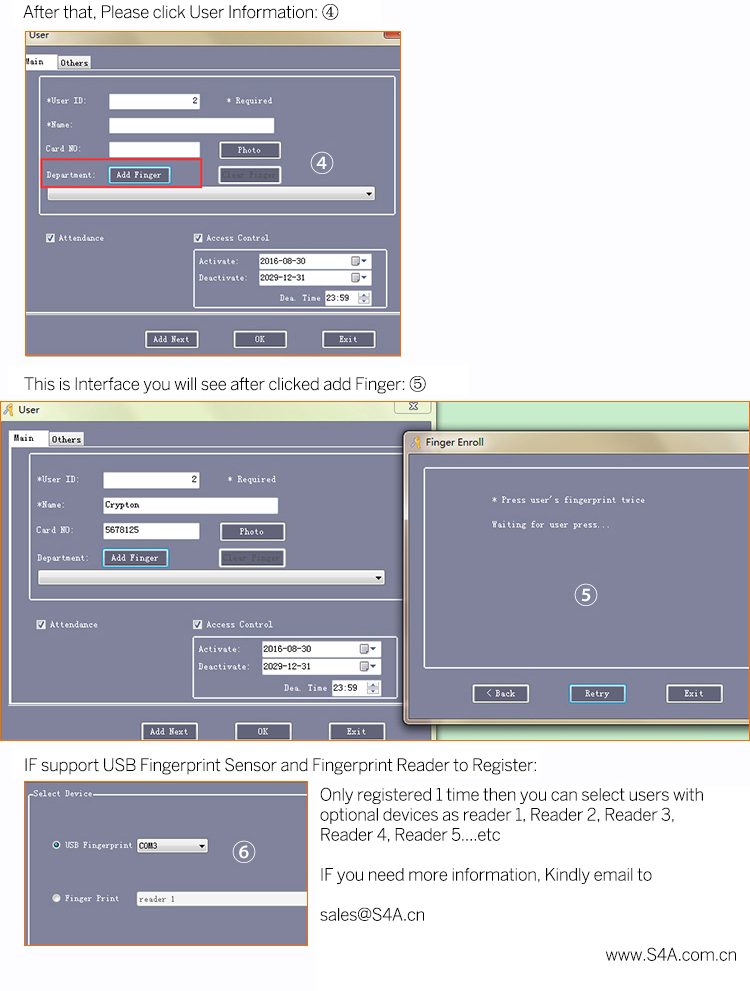

Just enroll it via FR-002S USB Fingerprint Sensor then upload to A,B,C,D,E,F etc units.
Very simple and friendly to manage users by ACB Software.
