Model:
SboardBrand:
JINYING| Product Parameter | Parameter Description |
| JINYINGModel | Sboard |

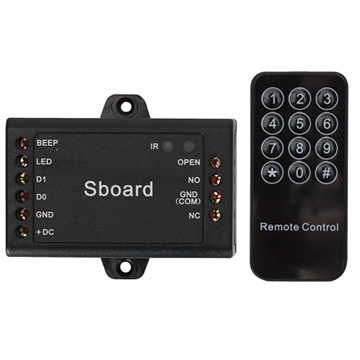

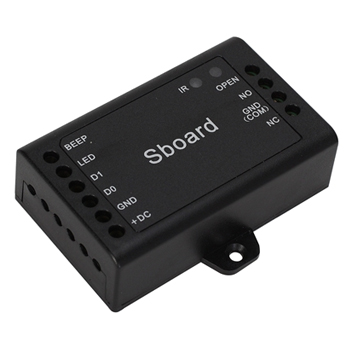

| Product Name | Mini Single Door Controller |
| User Capacity | 1,000 |
| Operating Voltage | 9~24V DC |
| Idle Current | < 20mA |
| Relay | One (NO, NC, Common) |
| Adjustable Relay Output Time | 0~99 Seconds (5 seconds default) |
| Lock Output Load | 2 Amp Maximum |

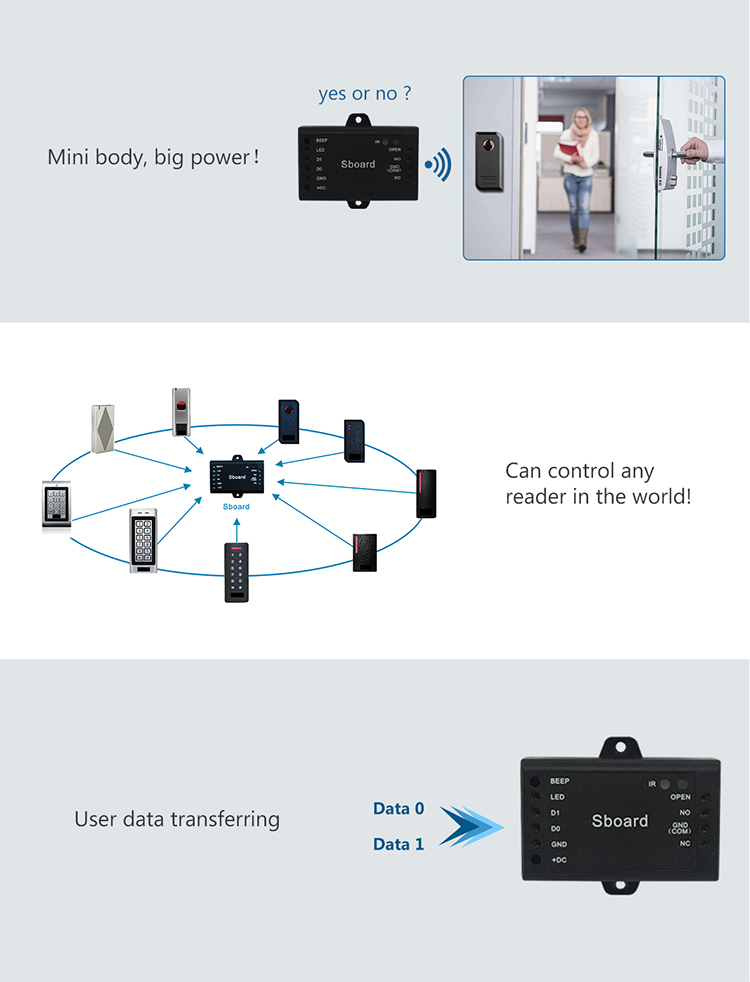

| Wiegand Input | Wiegand 26~37 bits |
| Wiegand Output | Wiegand 26~37 bits (for user transfer) |
| Environment | Indoor |
| Operating Humidity | 0 ~ 90%RH |
| Physical | ABS Shell |
| Colour | Black |
| Unit Weight | 0.1KG |
| Standard Package | 82pcs/carton |
| Carton Weight | 8.2KG |

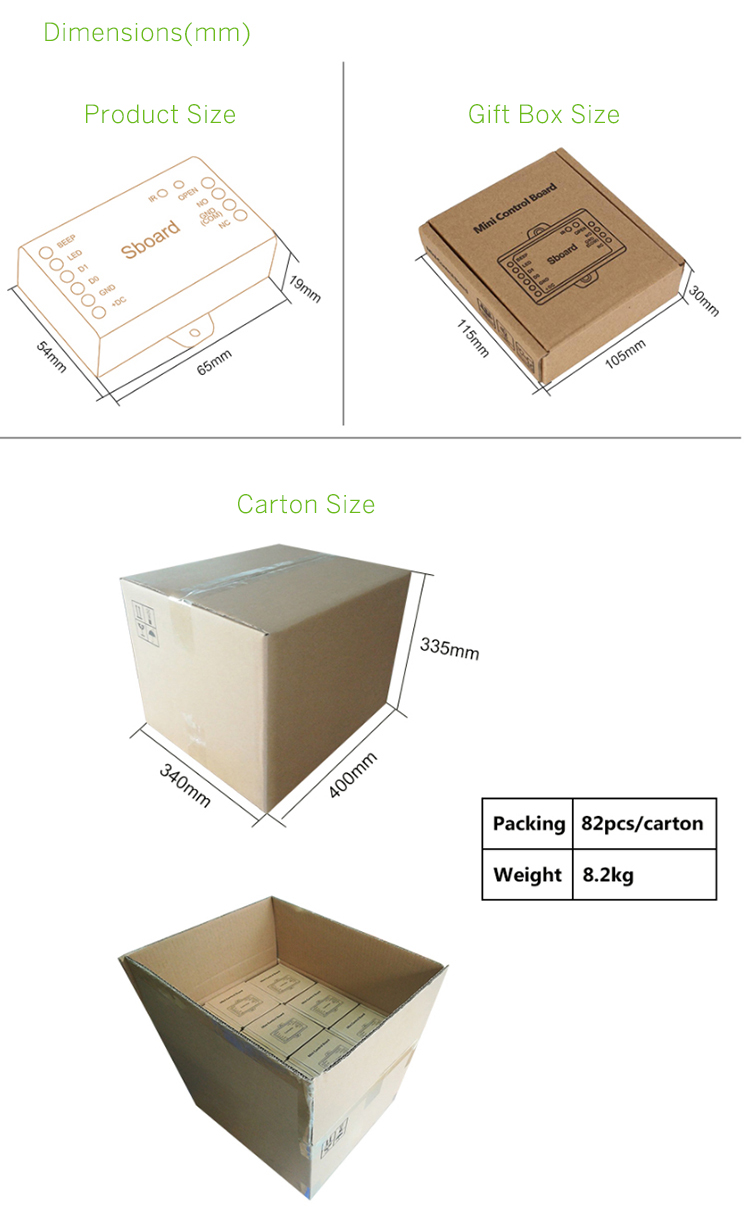

| Carton Size | 34*40*33.5cm |
