Model:
Sboard-IIBrand:
JINYING| Product Parameter | Parameter Description |
| JINYINGModel | Sboard-II |

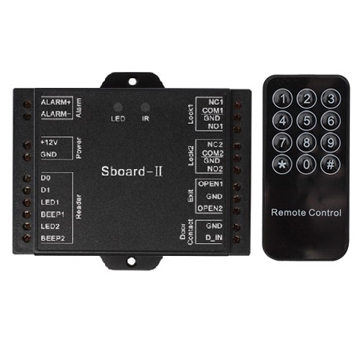

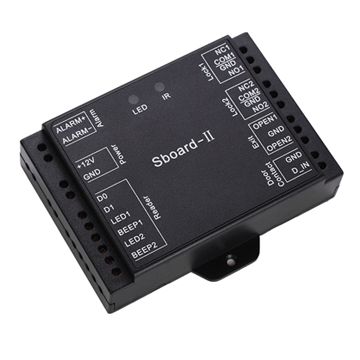

| Product Name | Mini Two-door Controller |
| User Capacity | 2100 |
| Zone 1 | 2,000 |
| Zone 2 | 100 |
| Operating Voltage | 9~24V DC |
| Idle Current | <30mA |
| Idle Current (With Wifi) | <100mA |
| Adjustable Relay Output Time | 1~99 Seconds (5 seconds default) |
| Lock Output Load | 10 Amp Maximum |
| Wiegand Input | Wiegand 26~37 bits |
| Wiegand Output | Wiegand 26~37 bits (for user transfer) |
| Environment | Indoor |
| Operating Temperature | -40 oC ~ 60 oC (-40 oF ~ 140 oF) |
| Operating Humidity | 0~90%RH |
| Physical | ABS Shell |
| Colour | Black |
| Unit Weight | 0.1KG |
| Standard Package | 54pcs/carton |
| Carton Weight | 9.5KG |

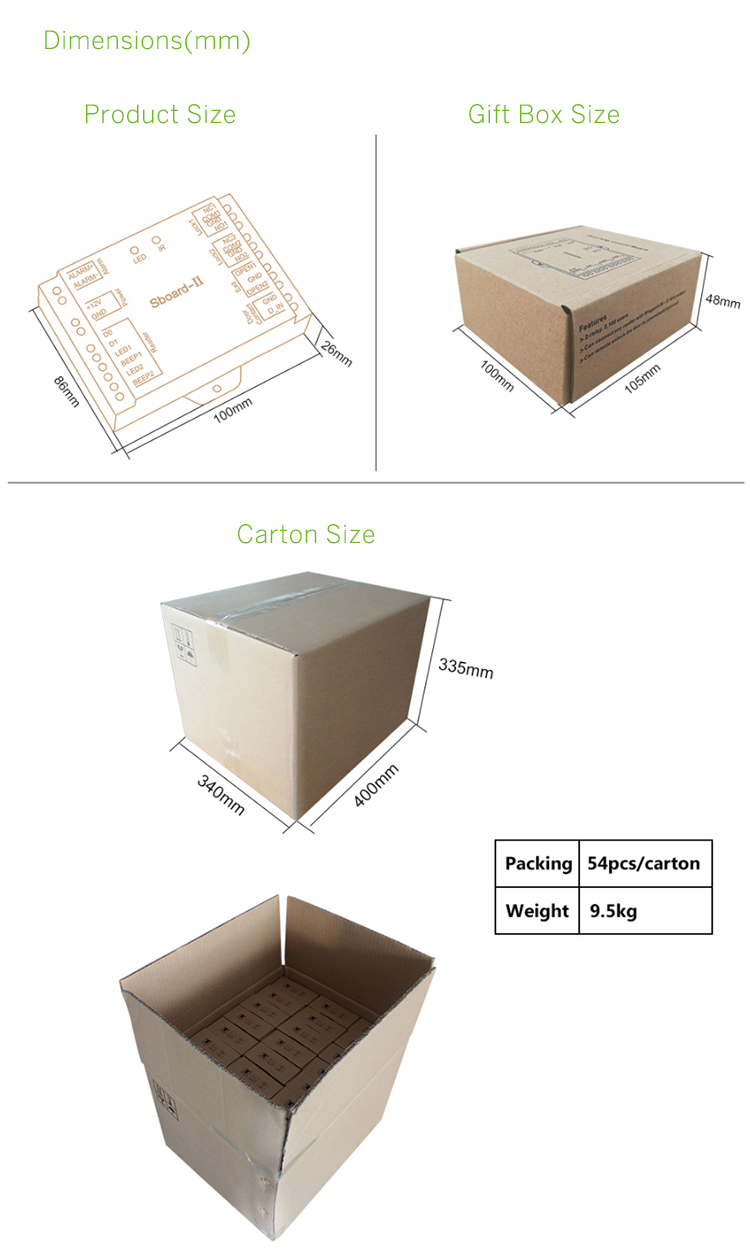

| Carton Size | 34*40*33.5cm |
