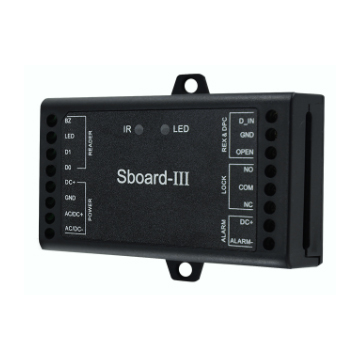

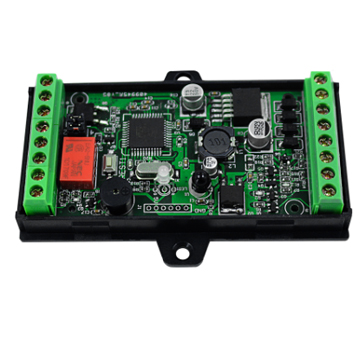

Sboard-III Mini Control Board

The Sboard-III is a mini size single door access control board, it supports 12~28V AD/DC power supply,_x000d_ Wiegand 26~44, 56, 58, 64 bits input, and it can work with external alarm.

  • Model:

    Sboard-III

  • Brand:

    JINYING
Inquiry now
  • Parameters
    •

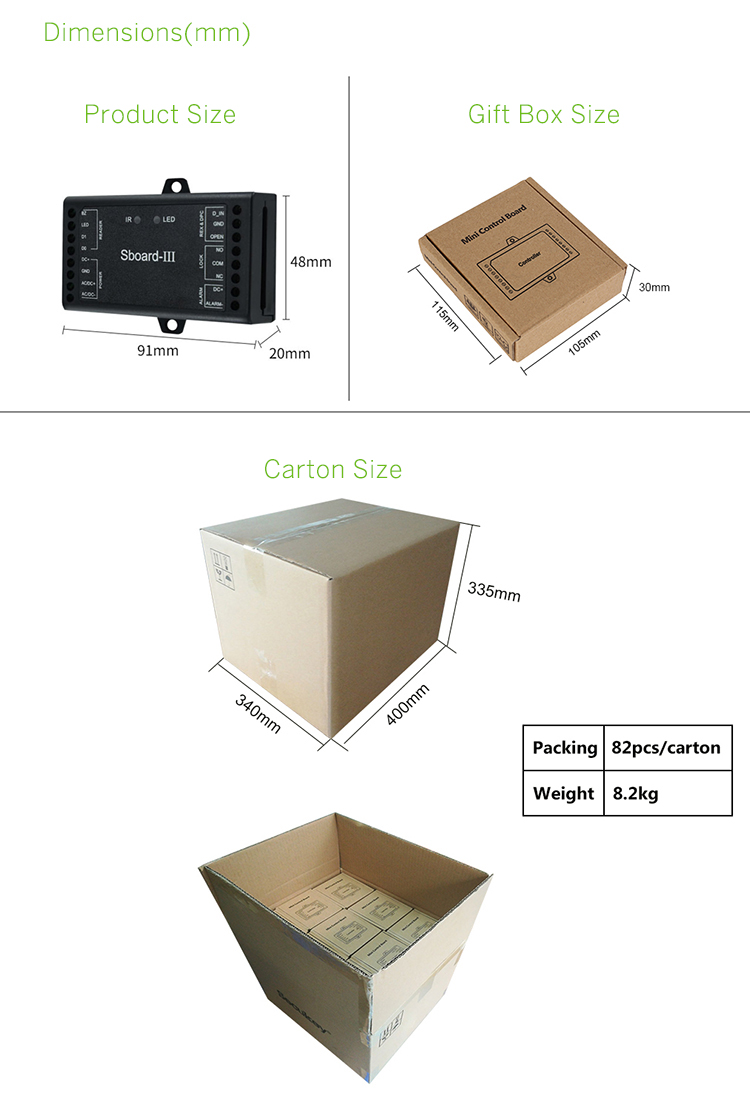

  • Dimensions
    •

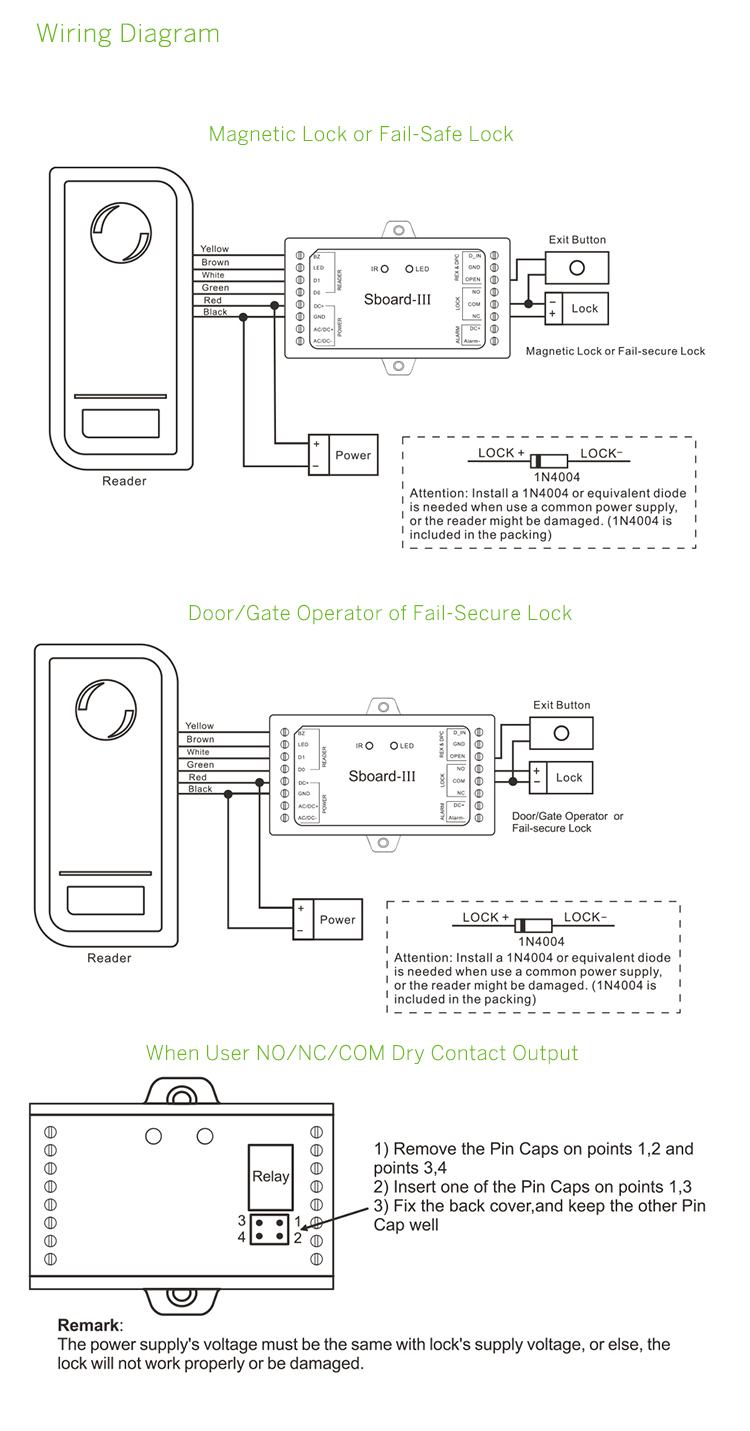

  • Diagram
    •

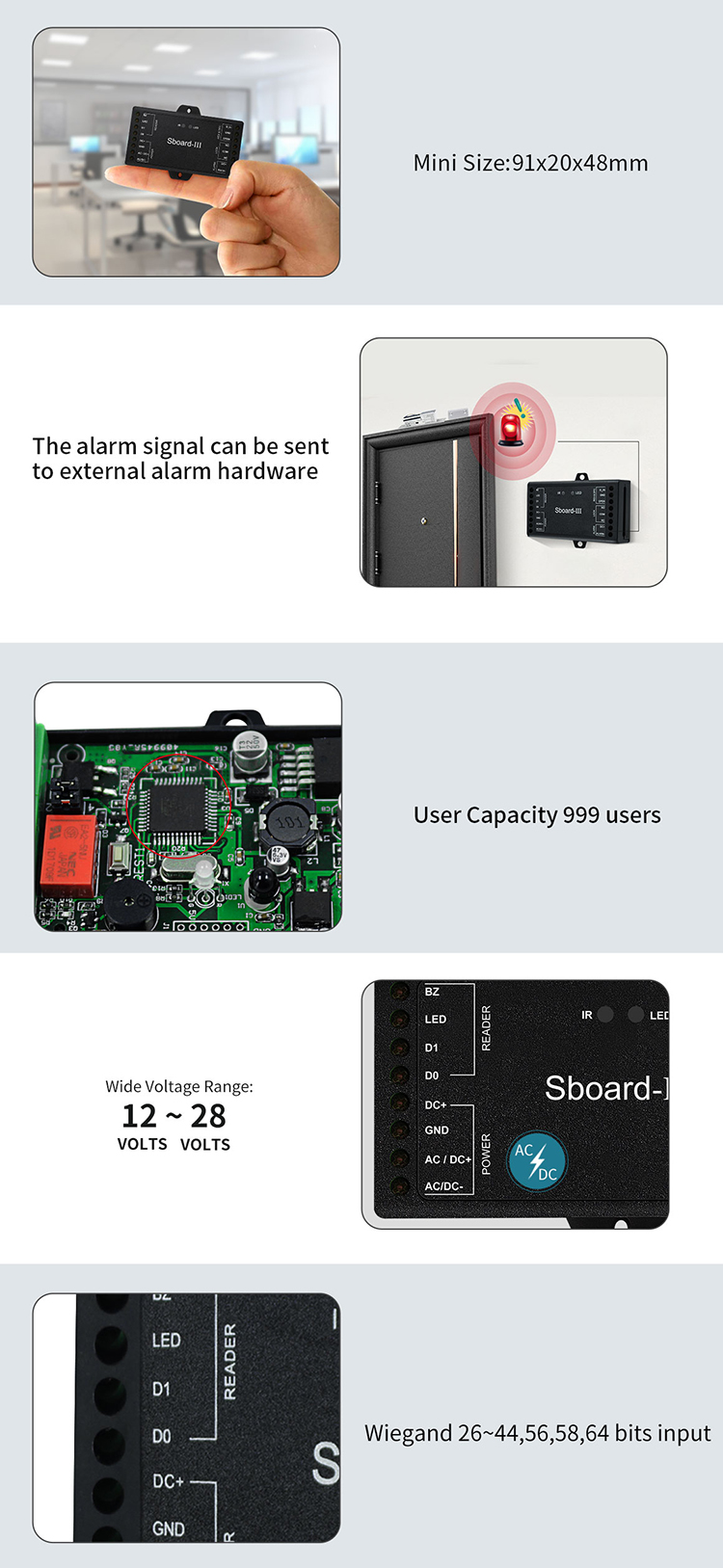

Sboard-III

Mini Control Board


> 999 users, user data can be transferred

> Multi access modes: Card, Card or PIN, Card with PIN and multi Cards/PINs

> Can connect with any reader with Wiegand 26~44, 56, 58, 64 bits output

> Can connect with any keypad reader with 4bits, 8bits (ASCII) output

> 12~28V AC/DC power input, 12V DC output

> Can connect with external alarm and door contact


JINYINGModelSboard-III
Product NameMini Control Board
User Capacity999
Operating Voltage12~28V AC/DC
Idle Current< 20mA
RelayOne (NO, NC, Common)
Adjustable Relay Output Time0~300 Seconds (5 seconds default)
Lock Output Load2 Amp Maximum
Wiegand InputWiegand 26~44, 56, 58, 64 bits
EnvironmentIndoor
Operating Humidity0 ~ 90%RH
PhysicalABS Shell
ColourBlack
DimensionsL91 x W48 x D20 (mm)
Unit Weight0.1KG
Standard Package82PCS/carton
Carton Weight8.2KG
Carton Size34*40*33.5 (cm)
