Home>PRODUCT>Network Access Controller>Sboard Mini Controller

Sboard-III WiFi Tuya WiFi Mini Controller

Sboard-III WIFI is a WiFi mini controller integrated with Tuya WiFi module. It can work with any wiegand 26~44, 26, 58bits readers.

  • Model:

    Sboard-II WiFi

  • Brand:

    JINYING
Inquiry now
  • Parameters
    •
  • Dimensions
    •

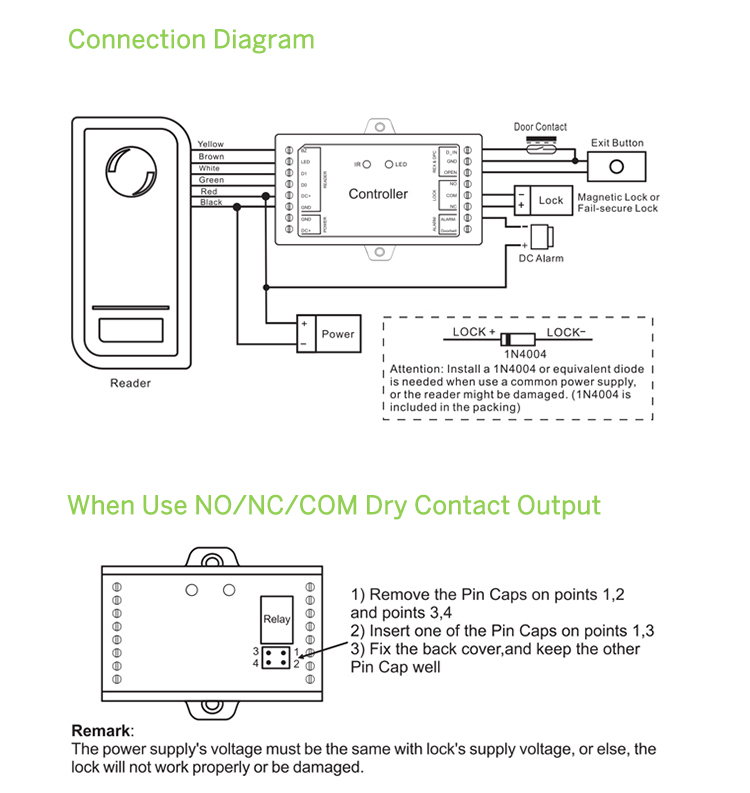

  • Diagram
    •

Sboard-III WIFI

Tuya WiFi Mini Controller


> 12V DC power input

> One relay,1000 users

> Wiegand 26~44, 56, 58bits input

> Can connect with external alarm and door contact

> 500 APP users

> iOS and Android available

> Add / Delete users by APP ( Card users available only)

> Can set Time Restriction for users

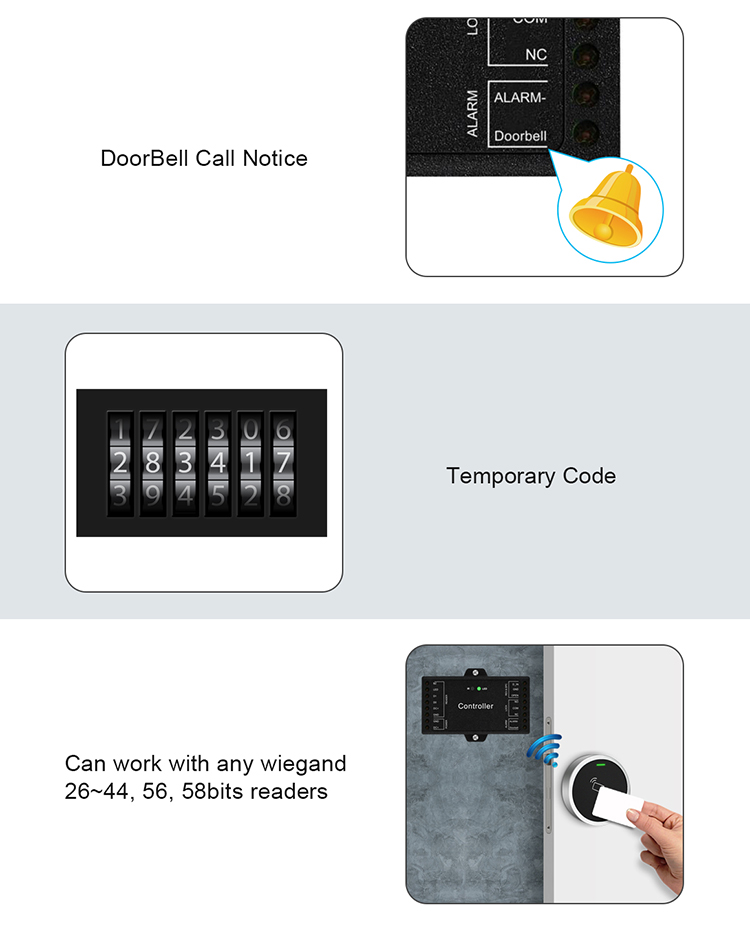

> Temporary Password (One-time Or Period Code)

> Support checking Opening Record

> Remotely Access (Support 3G/4G/5G)

> Doorbell Call Notice (Support External Door Bell)



Product ParameterParameter Description
JINYINGModelSboard-III WiFi
Product NameTuya WiFi Mini Controller

User CapacityHardware User: 1000          APP User: 500
 Common User987 PIN/Card Users)
Authorized User1
 Visitor User10
 Panic User2
Operating Voltage12V DC
 Idle Current ≤ 100mA
 Active Current≤ 150mA
Wiring ConnectionsRelay output, exit button, alarm, door contact, Wiegand input
RelayOne (NO, NC, Common)
Adjustable Relay Output Time0~99 Seconds (5 seconds default)
Lock Output Load2 Amp Maximum
Wiegand Interface  InputWiegand 26~44, 56, 58bits
EnvironmentIndoor
Operationg Humidity0~90%RH
PhysicalABS Shell
ColourBlack

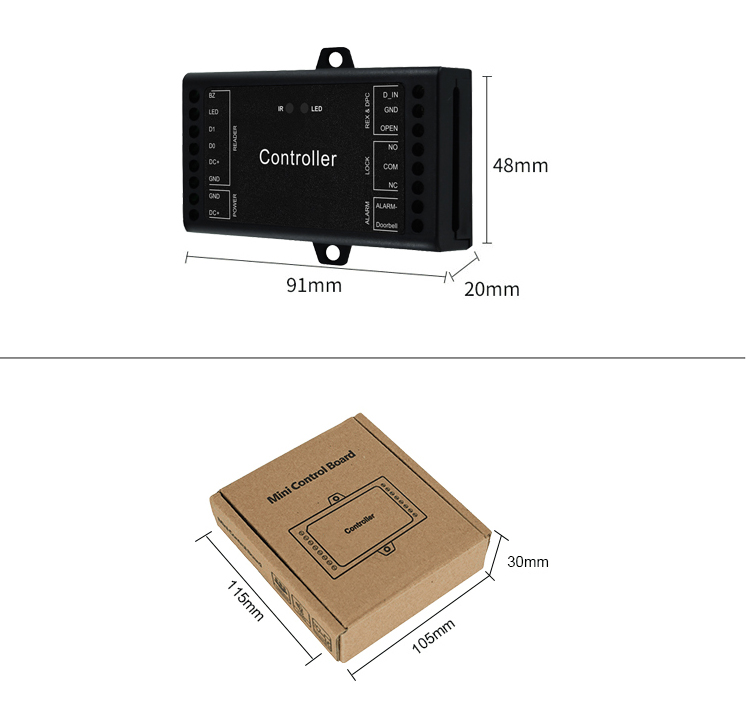

DimensionsL91 x W48 x D20 (mm)
Unit Weight63g
Shipping Weight73g







User Manual
