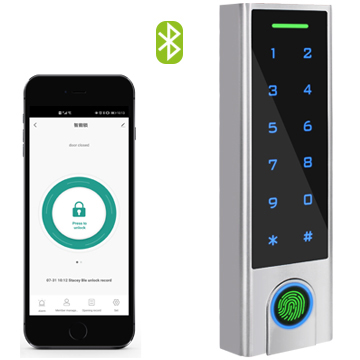

HF3-BLE Two Way Opening Door TouchKey Fingerprint module Bluetooth Access Control with TTLock APP

The HF3-BLE is a Bluetooth-enabled waterproof touch keypad + fingeprint + Mifare access controller. It's integrated_x000d_ with TTLock which supports 100 users (including 255 fingerprint / card/ PIN users). It's available for both iOS and Anddroid.

  • Model:

    HF3-BLE

  • Brand:

    JINYING
Inquiry now
  • Parameters
    •
  • Dimensions
    •
  • Diagram
    •

HF3-BLE

Bluetooth TouchKey Access Controller support TTlock APP


> Capacitive Fingerprint Sensor,touch keypad

> Waterproof, conforms to IP66

> Metal housing, anti-vandal

> Card type:  13.56MHz Mifare Card

> iOS and Android available

> Add / Delete users by APP

> Support checking Opening Record

> Support Gateway

> Multiple Access Modes: Smartphone, Fingerprint, Card, PIN



Product ParameterParameter Description
JINYINGModelHF3-BLE
Product NameBluetooth TouchKey Access Controller

User Capacity

Hardware User: 1000

 APP User: 100 (including 255 fingerprint / card/ PIN users)

 Common User988 (100 Fingerprint Users + 888 PIN/Card Users)
 Visitor User10
 Panic User2
PIN Length4~6 digits
Operating Voltage12~18V DC
 Idle Current ≤ 60mA
 Active Current≤ 150mA
Proximity Card ReaderMifare
 Radio Technlogy13.56MHz
 Read Range2~6cm

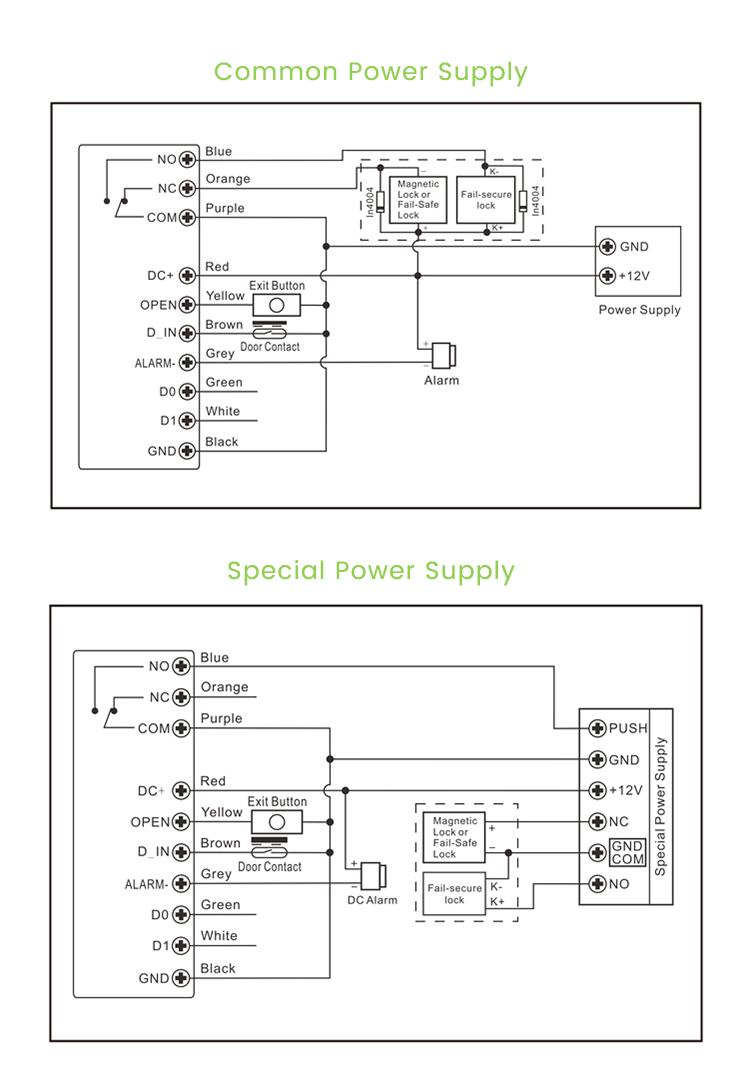

Wiring ConnectionsRelay output, exit button, alarm, door contact, Wiegand input/output
RelayOne (NO, NC, Common)
Adjustable Relay Output Time0~99 Seconds (5 seconds default)
Lock Output Load2 Amp Maximum
Wiegand Interface

EM card version:

 Wiegand 26~44 bits input & output (Factory default: Wiegand 26bits)

Mifare card version:

Wiegand 26~44 bits,56bits,58bits input & output (Factory default: Wiegand 34bits)

PIN Output4 bits,8bits (ASCII),10 digits Virtual Number(Factory default:4bits)
EnvironmentMeets IP66
Operating Temperature-30°C ~ 60°C (-22°F ~ 140°F)
Operating Humidity0%RH ~ 98%RH
PhysicalZinc-Alloy
ColorSliver & Black

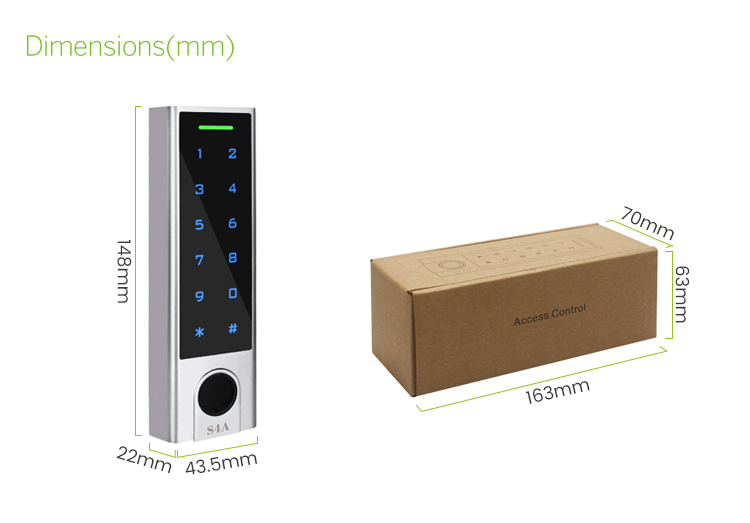

DimensionsL148 x W43.5 x H22 (mm)
Unit Weight330g
Shipping Weight405g
