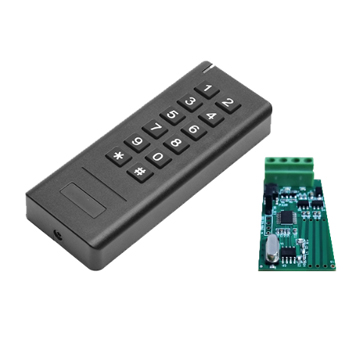

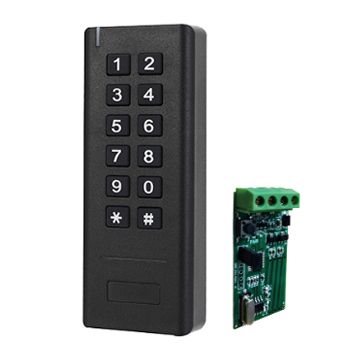

WK1 Wireless Keypad Reader

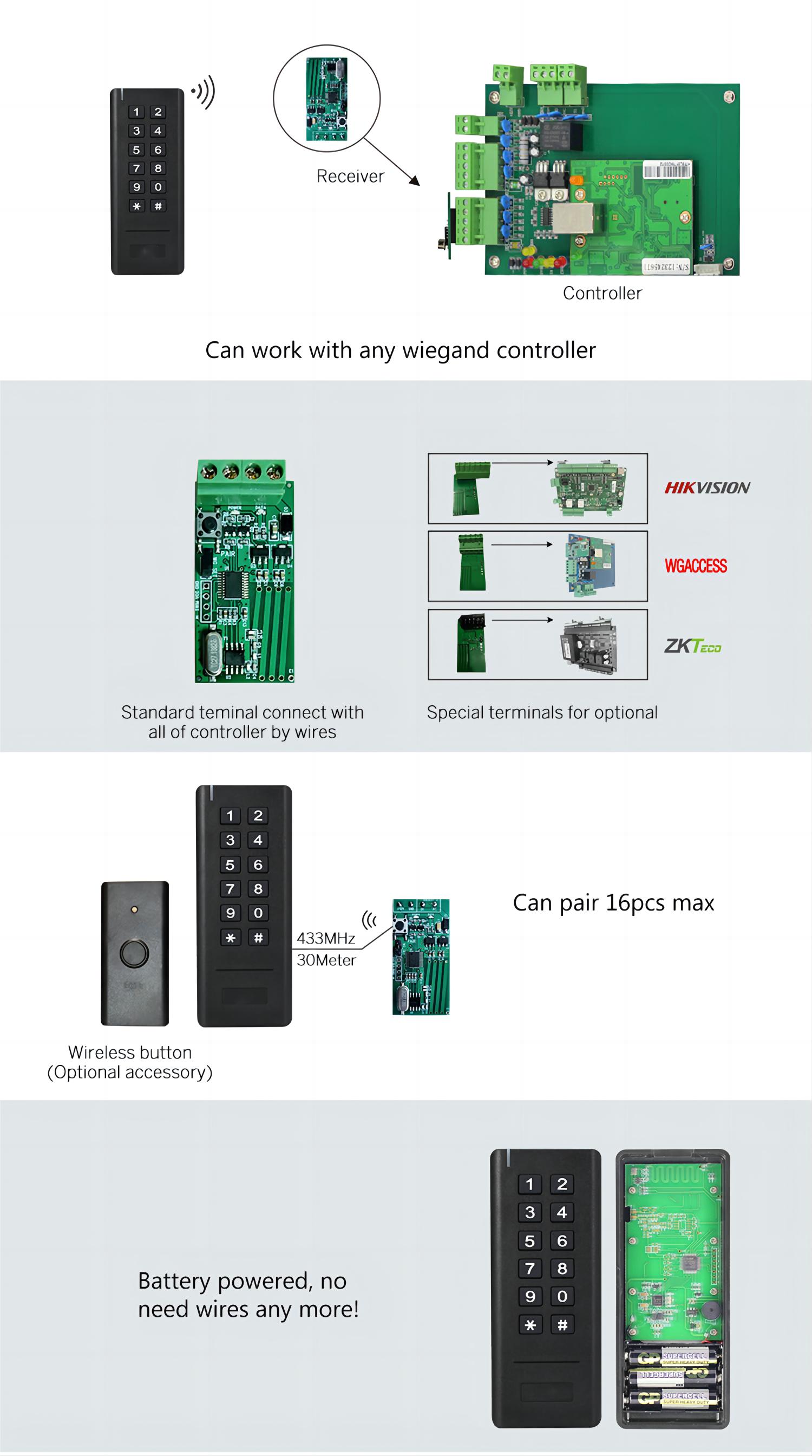

WK1 is a Wireless Keypad reads PIN only, including the Wireless Keypad and Receiver, it's 433MHz Rolling code communication between the keypad and receiver, and the receiver can be connected to any 3rd party Wiegand controller.

  • Model:

    WK1

  • Brand:

    JINYING
Inquiry now
  • Parameters
    •
  • Dimensions
    •

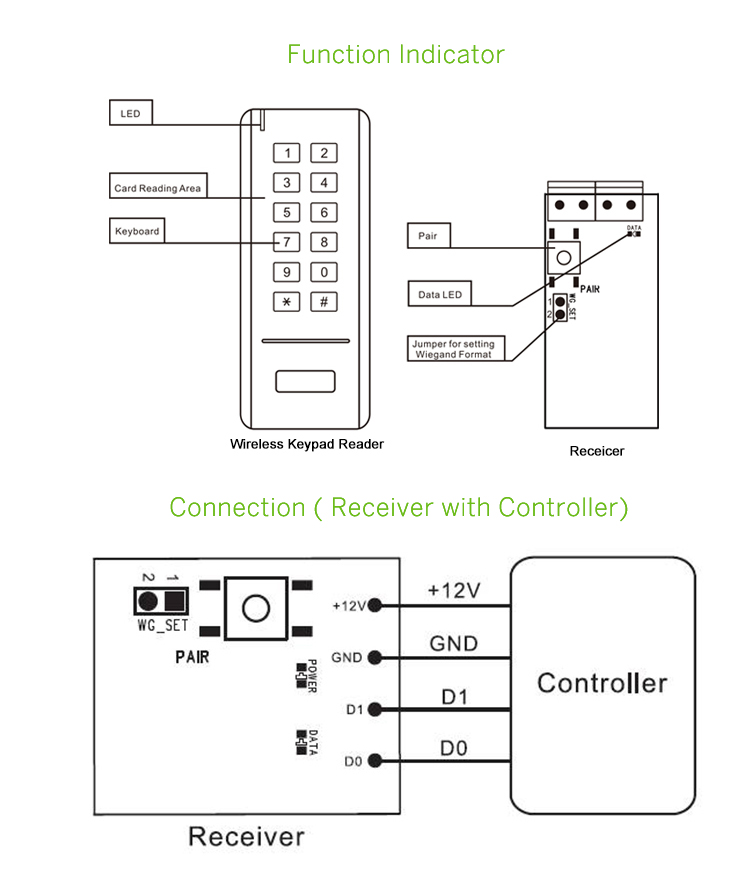

  • Diagram
    •

WK1
Wireless Keypad Only

> 433MHz Rolling Code technology
> PIN Length: 1-6 digits
> Programmable Wiegand output of the Receiver: 26 bits or 34 bits
> Communication distance: 30m maximum
> Ultra low power consumption



Product ParameterParameter Description
JINYINGModelWK1
Product NameWireless Keypad Wiegand Reader

Wireless Keypad Reader
PIN Length1-6 digits
Card Type125KHz EM card
Operating Voltage3 units of AAA batteries
Idle Current≤5uA
Working Current≤45mA
Reading Distance≤3cm
Communication Frequency433MHz
Communication Distance30m Maximum
Operating Temperature-20°C～+60°C (-4°F～+140°F)
Operating Humidity0%～86%
PhysicalABS
DimensionsL134 * W55 * H20 (mm)
Net Weight100g

Receiver
Operating Voltage12V DC
Working Current≤15mA
Communication Frequency433MHz
Wiegand Output Format26 bits Or 34 bits (Default is 26 bits)
Operating Temperature-20°C～+60°C (-4°F～+140°F)
Operating Humidity0%～86%
DimensionsL25 * W50 (mm)
Net Weight10g

Wireless Button (Optional Accessory)
Operating Voltage1unit of 2023 Lithium battery
Idle Current≤2uA
Working Current≤20mA
Communication Frequency433MHz
Communication Distance20m Maximum
