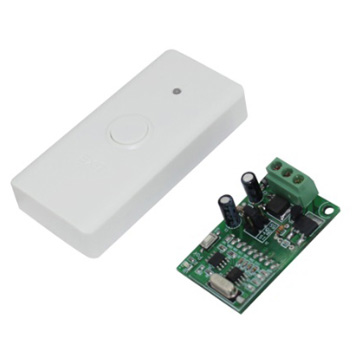

It is a 433MHz wireless exit button, with 1 million groups of rolling code encryption, secure and reliable.
2 versions are available:

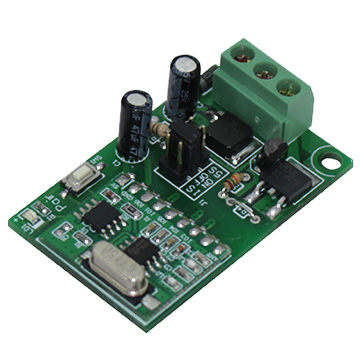

Wet contact control - no isolation to the circuit, control current ≤3A.
Dry contact control - with isolation circuit, control current ≤5A, can connect with household electrical appliances or lock to control directly.
WB2 - Wet Contact Wireless Exit Button
> 433MHz Rolling Code Technology

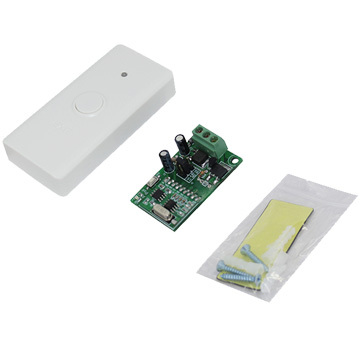

> Easy installation by 3M stickers
> 2032 lithium battery operated
> Dimension: 4.0W x 8.3L x 1.5D (cm)
> Control current < 5A
| Product Parameter | Parameter Description |
| JINYINGModel | WB2 |
| Product Name | Wireless Exit Button ( White color ) |
|
| Operating Voltage |
| Wireless Exit Button | 2032 3V Li-battery |
| Control panel | DC 12 |
| Current |
| Idle Current | Wireless Exit Button: < 5uA; Control Panel: < 20mA |
| Working Current | Wireless Exit Button: < 8mA; Control Panel: < 60mA |
| Communication Frequency | 433MHz |
| Communication Distance | About 50m |
| Relay Contact Load | < 5A |
| Environment |
| Operating Temperature | -20oC ~ +60oC |
| Operating Humidity | 0% ~ 86% |
