Model:
SF2Brand:
JINYING| Product Parameter | Parameter Description |
| JINYINGModel | SF2 |
| Product Name | Waterproof FingerKey |
| User Capacity | 3000 |
| Fingerprint | 1000 |
| PIN | 2000 |
| PIN Length | 4~6 digits |
| Operating Voltage | 12V DC |
| Idle Current | ≤ 45mA |
| Active Current | ≤ 150mA |
| Fingerprint Reader | Optical Fingerprint Module |
| Resolution | 500DPI |
| Identification time | <1s |
| FAR | <0.001% |
| FRR | <0.01% |
| Wiring Connections | Relay output, exit button, alarm, door contact, Wiegand output |
| Relay | One (NO, NC, Common) |
| Adjustable Relay Output Time | 0~99 Seconds (5 seconds default) |
| Adjustable Alarm Output Time | 0~3 Minutes (default: 1 minute) |
| Lock Output Load | 2 Amp Maximum |
| Alarm Output Load | 5 Amp Maximum |
| Wiegand Interface | Wiegand 26~44bits output |
| Environment | Meets IP66 |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F)--Default |
| -40°C ~ 60°C (-40°F ~ 140°F)--Optional | |
| Operating Humidity | 20%RH ~ 90%RH |
| Physical | Zinc-Alloy |
| Surface Finish | Powder Coat |

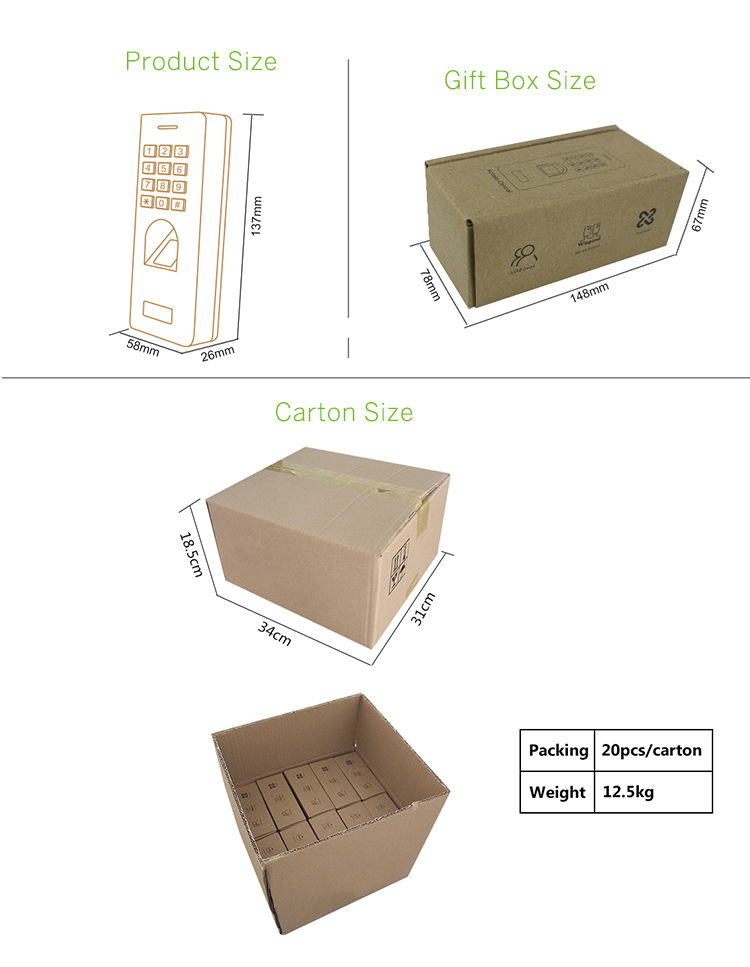

| Dimensions | L137 x W58 x H26 (mm) |
| JINYINGModel | SF2 |
| Product Name | Metal & IP66 Fingerprint Access Controller |
| Packing Quantity | 20 PCS/CTN |
| Packing Size | 34*31*18.5cm |
| Gross Weight | 12.5KG |
