Features:

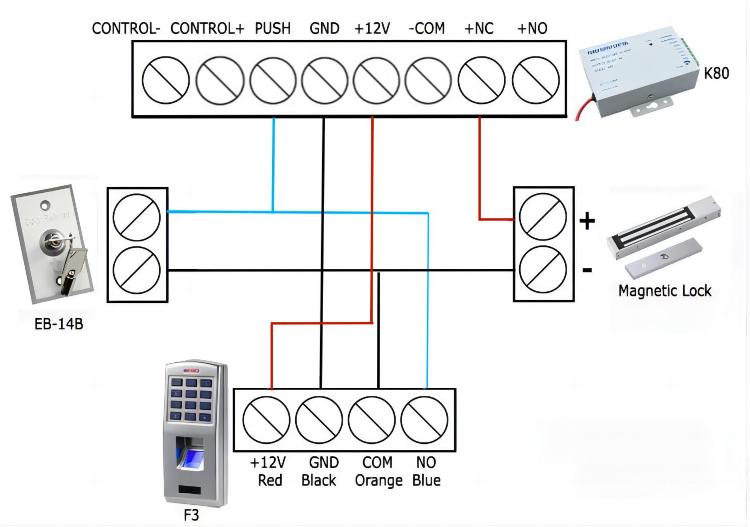

> Internal electric lock control directly, the out switch, magnetic detection(independent control mode)
> Capacitance induction type fingerprint collector, standby and power nap function.
> The administrator function, we can effectively operate the equipment without needing a connection to any of the PC machines. Operation is more convenient.
> Wiegand signal output can combine with all standard controller
Specification:
| Product Parameter | Parameter Description |
| JINYINGModel | F3K |
| Product Name | Metal Fingerprint Access Control |
|
| Card type | EM 125KHz |
| Fingerprint Capacity | 500(standard), Can be extended to 1000,3000 |
| Password Capacity | 500 groups |
| Hardware platform | ARM9 |
| Fingerprint collector | Fingerprint sensing optical Blu ray fingerprint collector |
| Administrator Function | support 2 groups of administrators to register and delete |
| Wiegand | WG26 output |
| Recognition Speed | <1s |
| LED | Red&Blue |
| Alert Tone | Buzzer |
| Alarm Function | Anti-dismantle, Force to open the door, Open door overtime |
| Temperature of use | －25℃～50℃ |
| Work humidity | 20%～80% |
| Power supply | +12V |
| Size | 150x66x23mm |
