| Product Parameter | Parameter Description |
| JINYINGModel | SA-0103 |

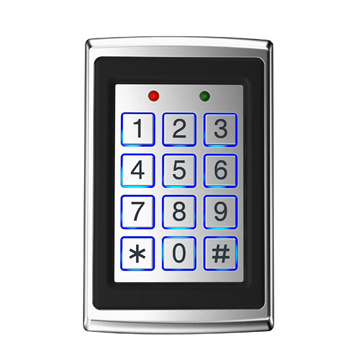

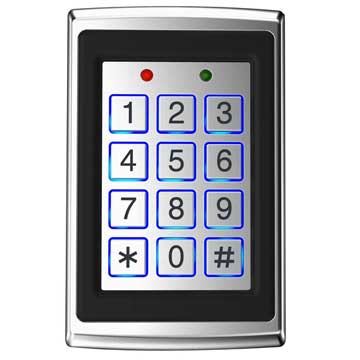

| Product Name | Metal Access Control Keypad |
| Card type | EM |
| Capacity | 2000 users |
| Environment Humidity | 10%～90% |
| Lock output | ≤3A |
| Working voltage | DC12V±10％ |
| Static electricity | ≤30mA |
| Alarm output | ≤20A |
| Output short circuit protection time | ≤100μS |
| Card read distance | 3～8cm |
| Ambient temperature | -25℃~60℃ |
| Door Opening Time | 0~99s(Adjustable) |

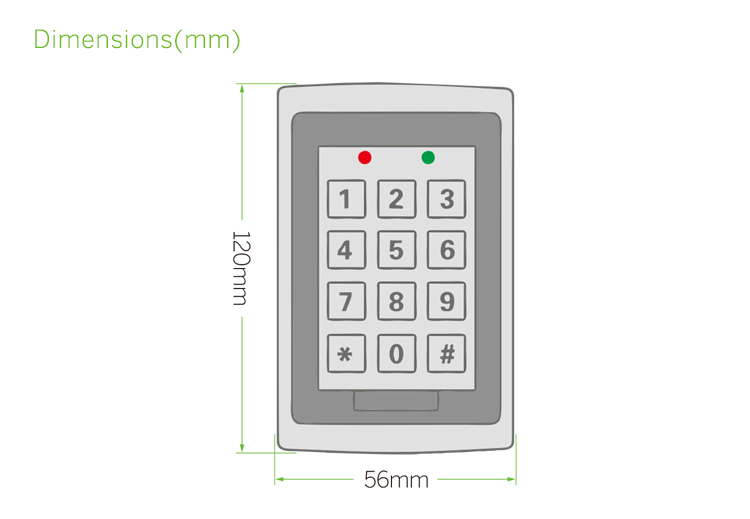

| Dimension | 120*56*18mm |
| JINYINGModel | SA-0103 |
| Product Name | Metal Access Control Keypad |
| Packing Quantity | 72CS/CTN |

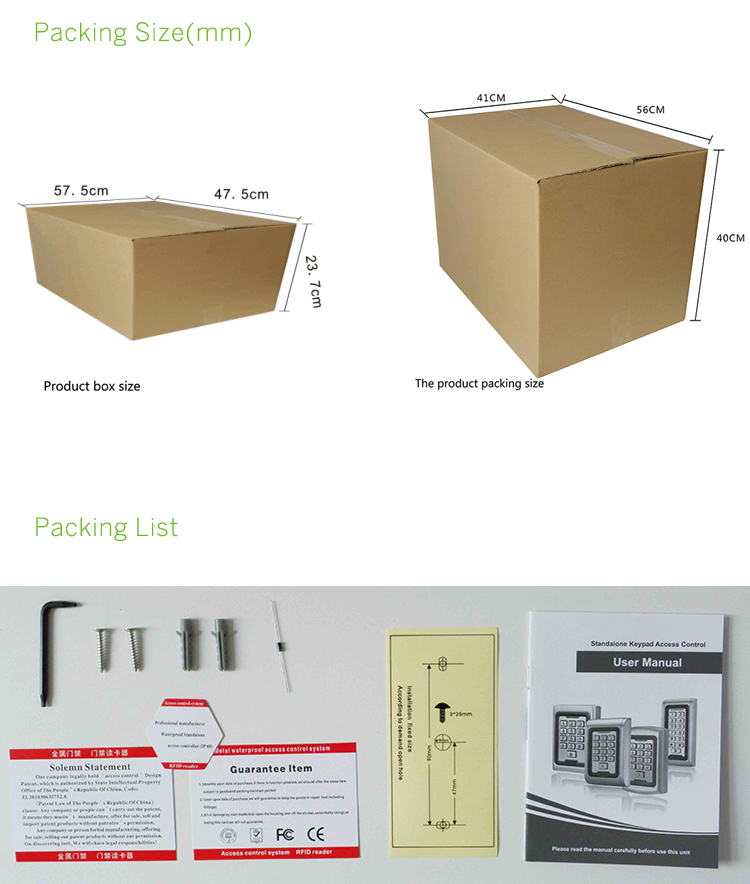

| Packing Size | 55.5*39.9*40cm |
| Gross Weight | 34.5KG |
