Model:
K5-iK10Brand:
JINYING| Product Parameter | Parameter Descr1ption |
| JINYINGModel | K5-iK10 |
| Product Name | IK10 Protection Class Metal Access Control Keypad |
| User Capacity | 1000 PINS |
| Normal Users | 990 |
| Visitor Users | 10 |
| Operating Voltage | 9~18V DC |
| Idle Current | 50mA |
| Active Current | 80mA |

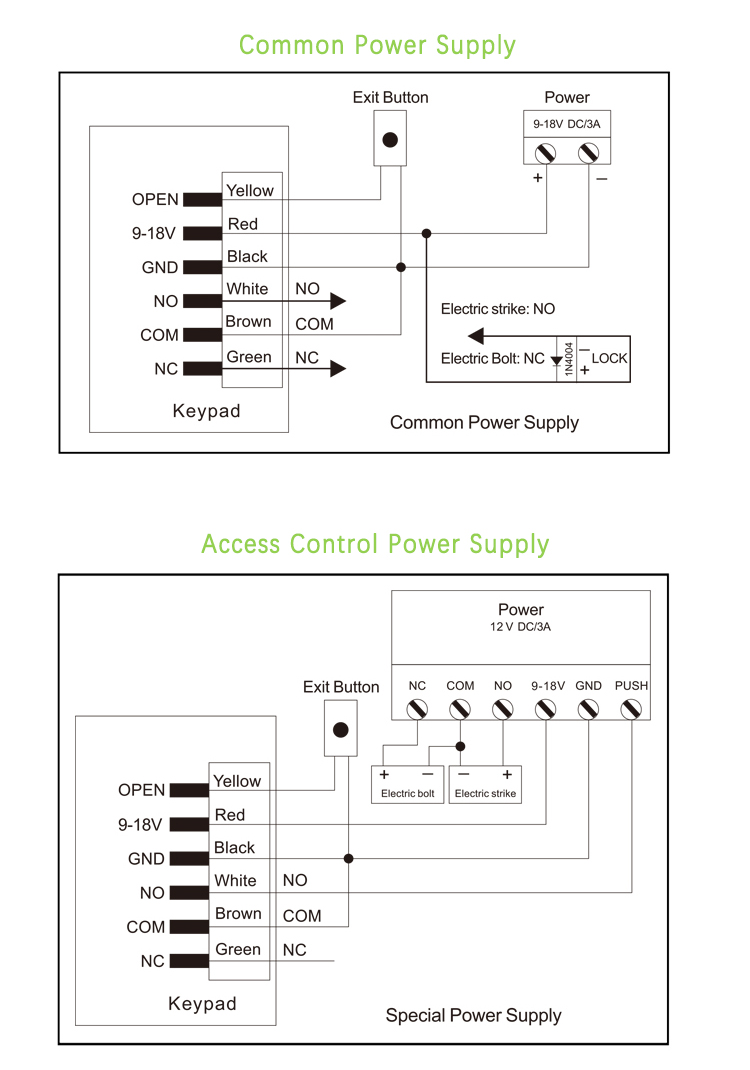

| Wiring Connections | Relay Output, Exit Button |
| Relay | One (NO, NC, Common) |
| Adjustable Relay Output Time | 0-99 Seconds (5 seconds default) |
| Lock Output Load | 3 Amp Maximum |
| Environment | Meets IP66 |
| Operating Temperature | -40°C~ 60°C (-40°F ~ 140°F) |
| Operating Humidity | 10%RH-90%RH |
| Physical | Zinc-Alloy Enclosure |
| Surface Finish | Powder Coat |

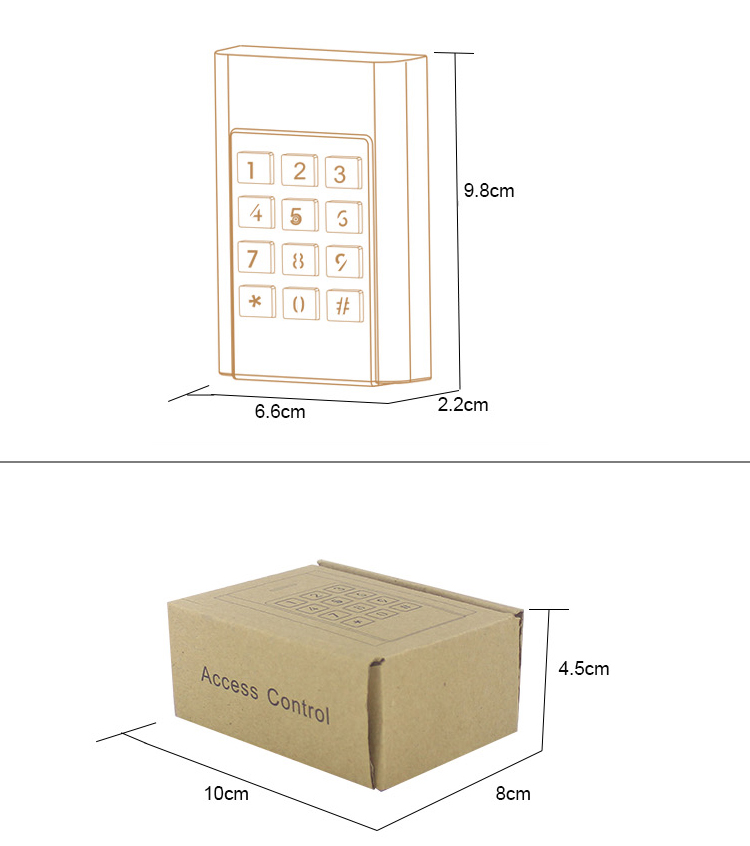

| Dimensions | 9.8L x 6.6W x 2.2H (cm) |
| Unit Weight | 295g |
| Shipping Weight | 350g |
