Model:
S99Brand:
JINYING| Product Parameter | Parameter Description |
| JINYINGModel | S99 |

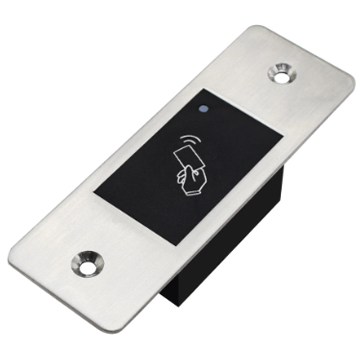

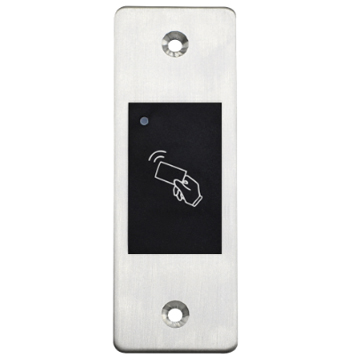

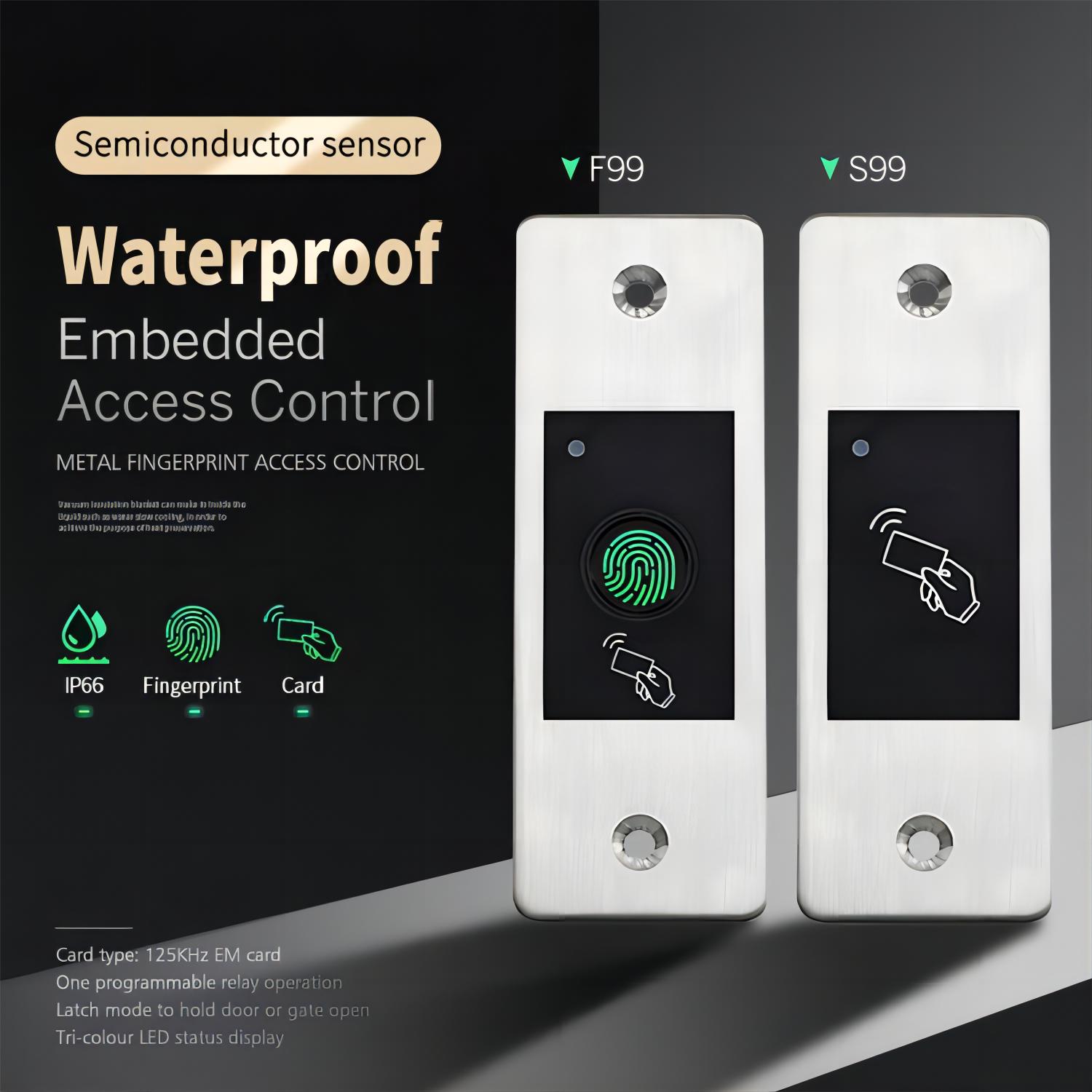

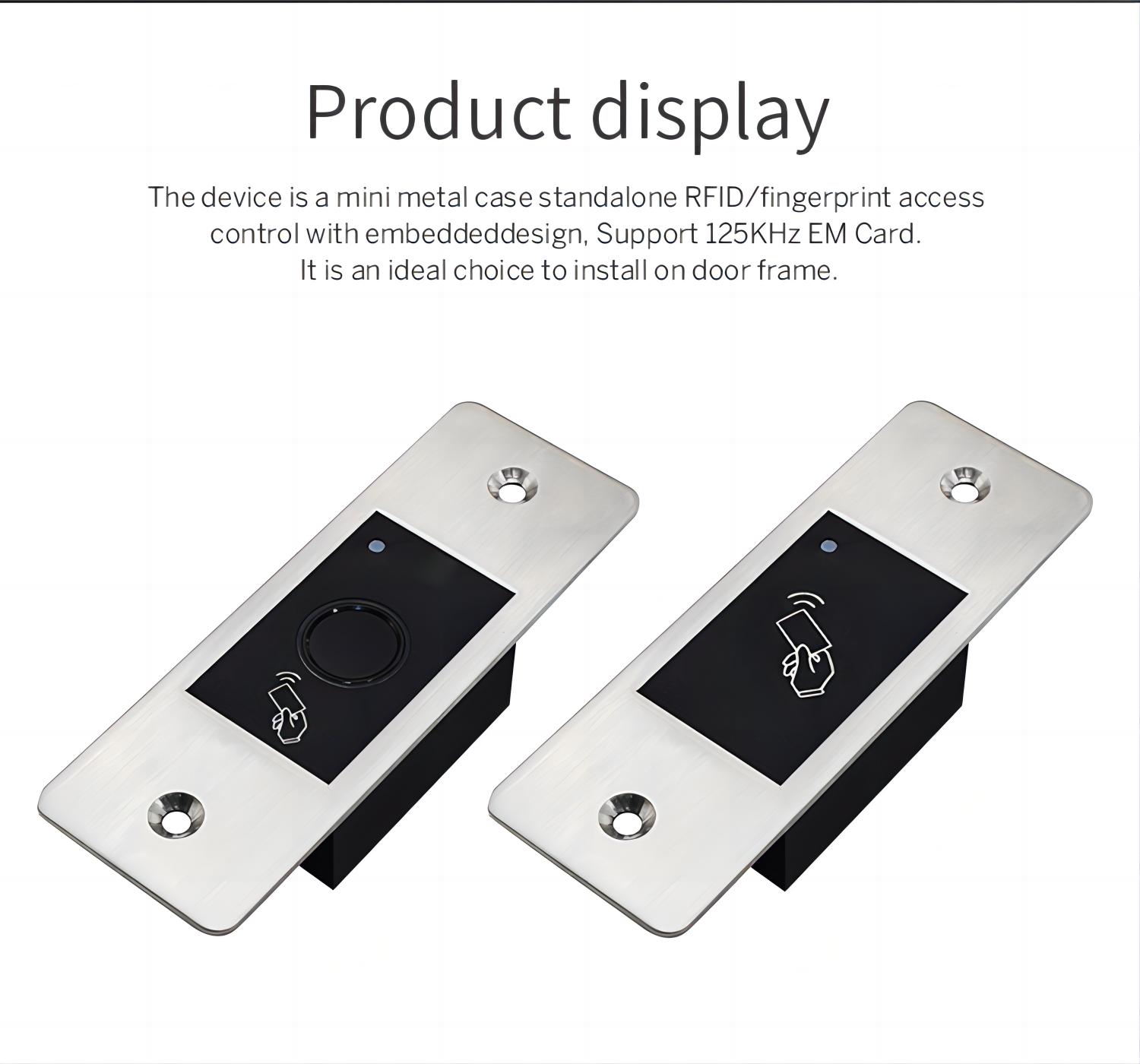

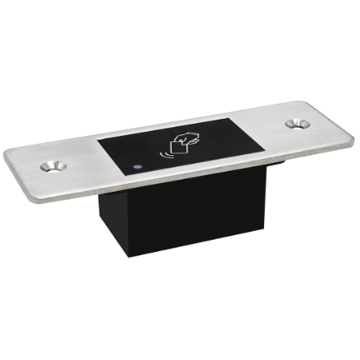

| Product Name | JINYINGEmbedded Door Metal Waterproof RFID Access Controller |
| User Capacity | 3000 Cards |
| Operating Voltage | DC9~24V |
| Idle Current | ≤25mA |
| Active Current | ≤100 |
| Proximity Card Reader | EM |
| Radio Technology | 125KHz Proximity Card |
| Read Range | 50px |

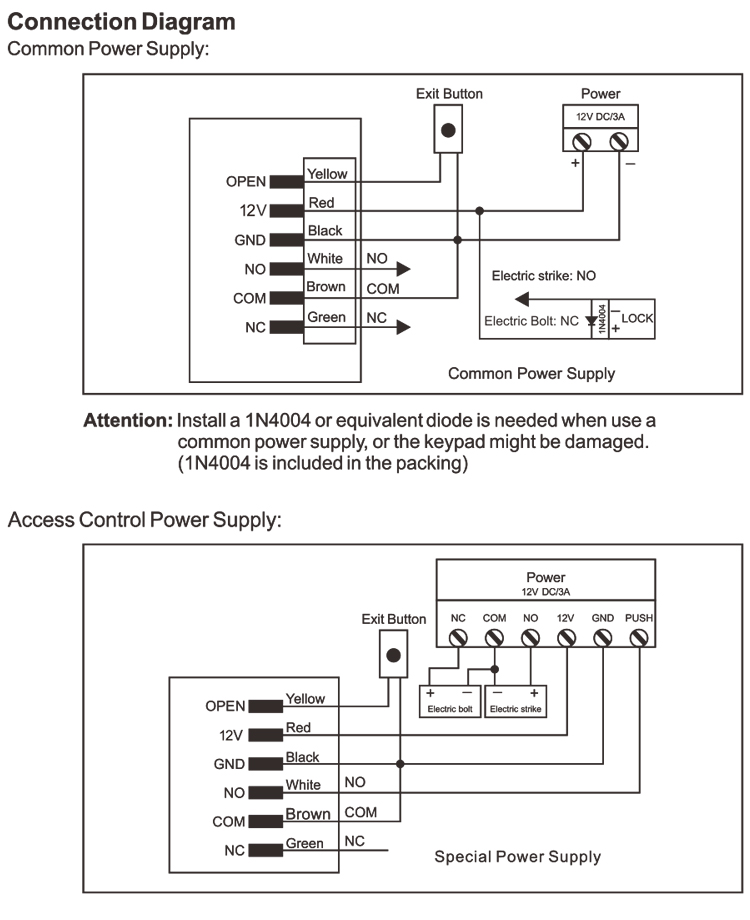

| Wiring Connections | Relay Output, Exit Button |
| Relay | One (NO, NC, Common) |
| Adjustable Relay Output Time | o-99 seconds (5 seconds default) |
| Lock Output Load | 2 Amp Maximum |

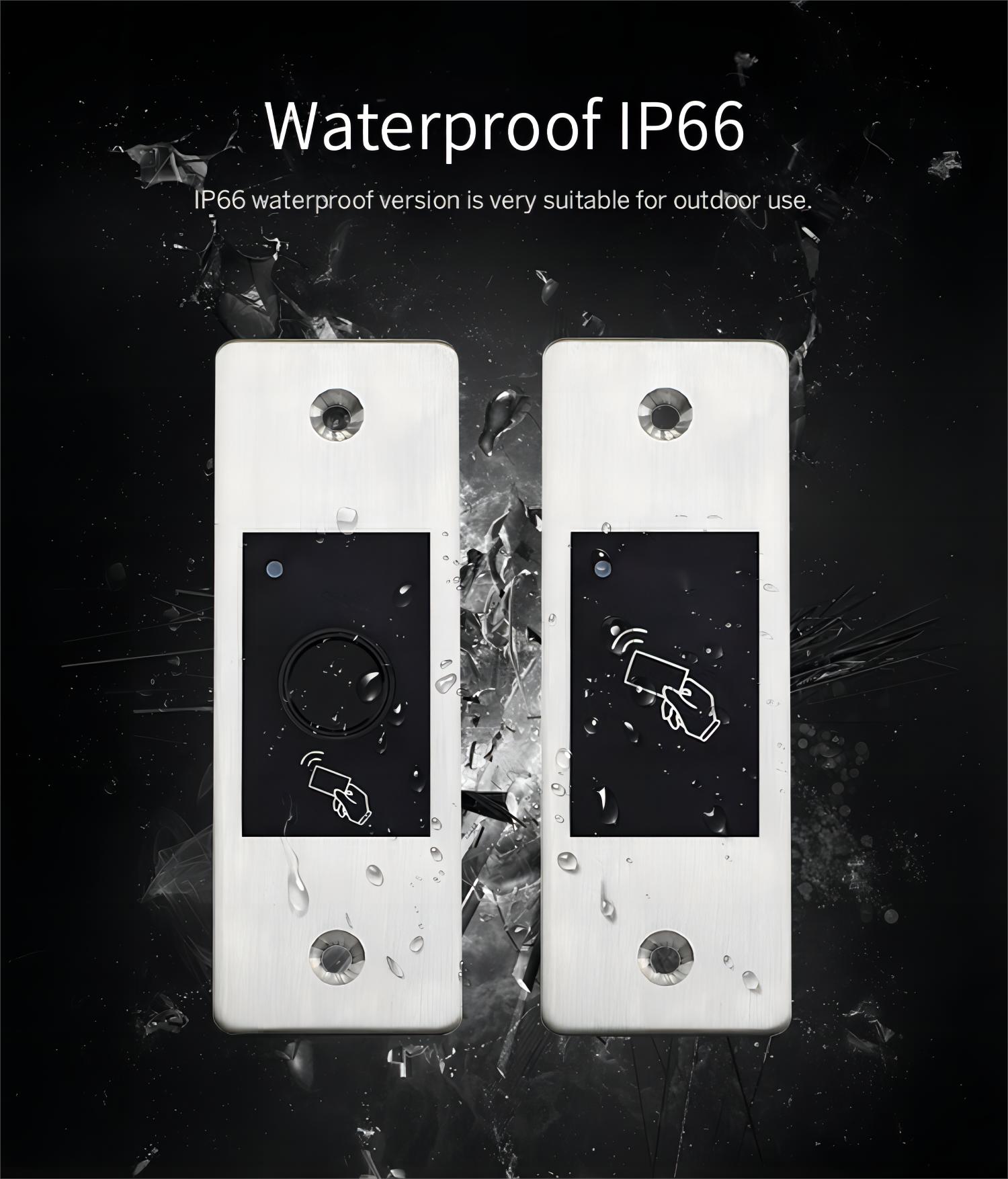

| Environment | Meets lP66 |
| Operating Temperature | -25℃~60℃ (-13°F ~140°F) |
| Operating Humidity | 20%RH-98%RH |

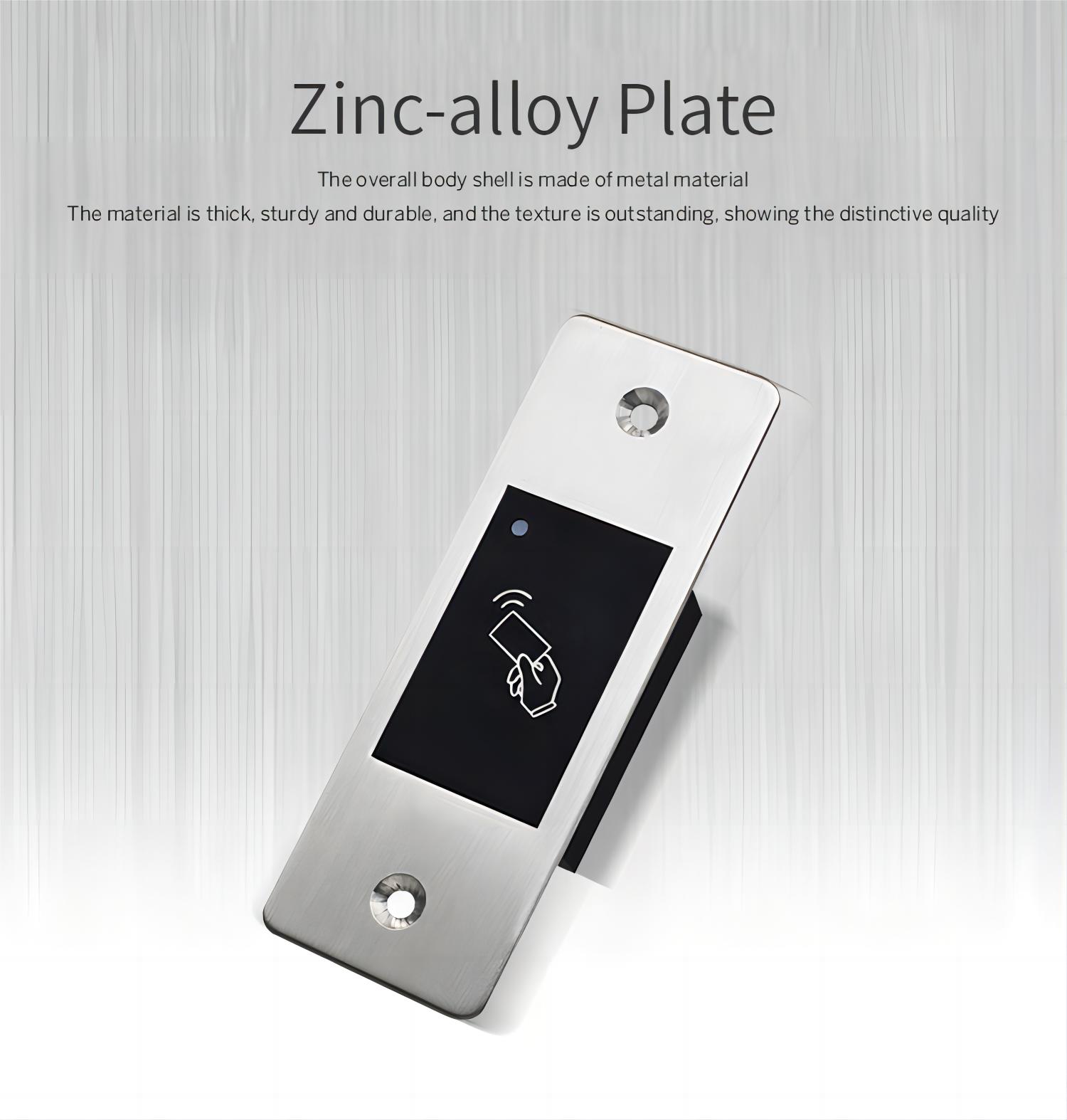

| Physical | Zinc-alloy plate |
| Colour | Silver |

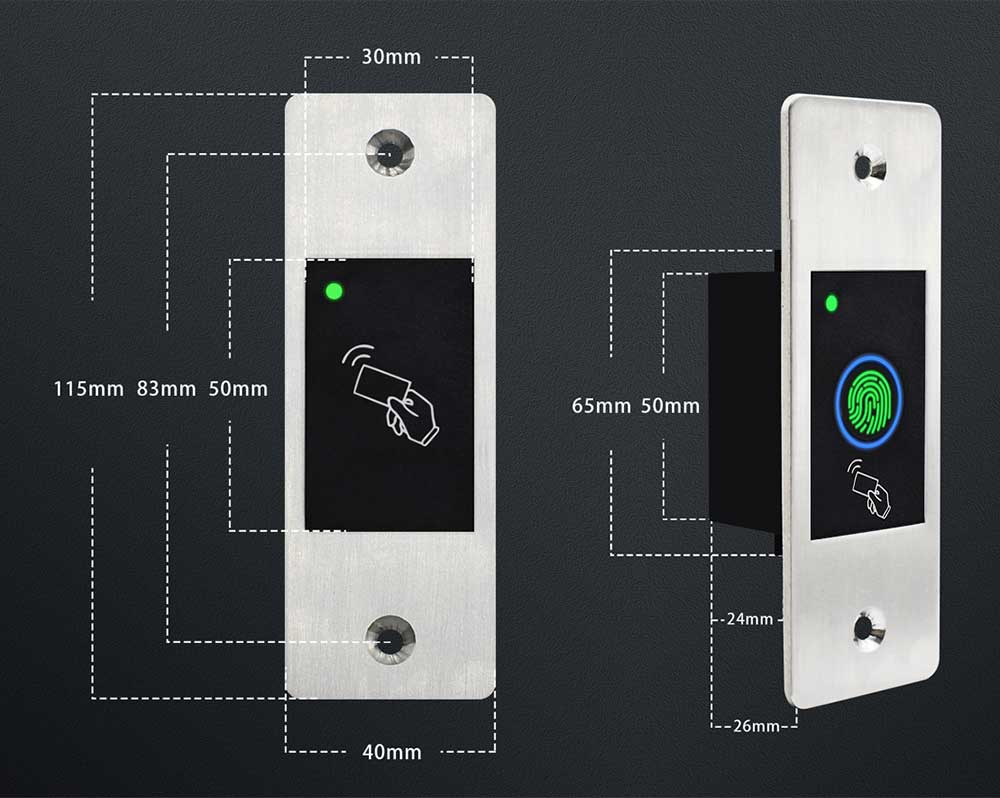

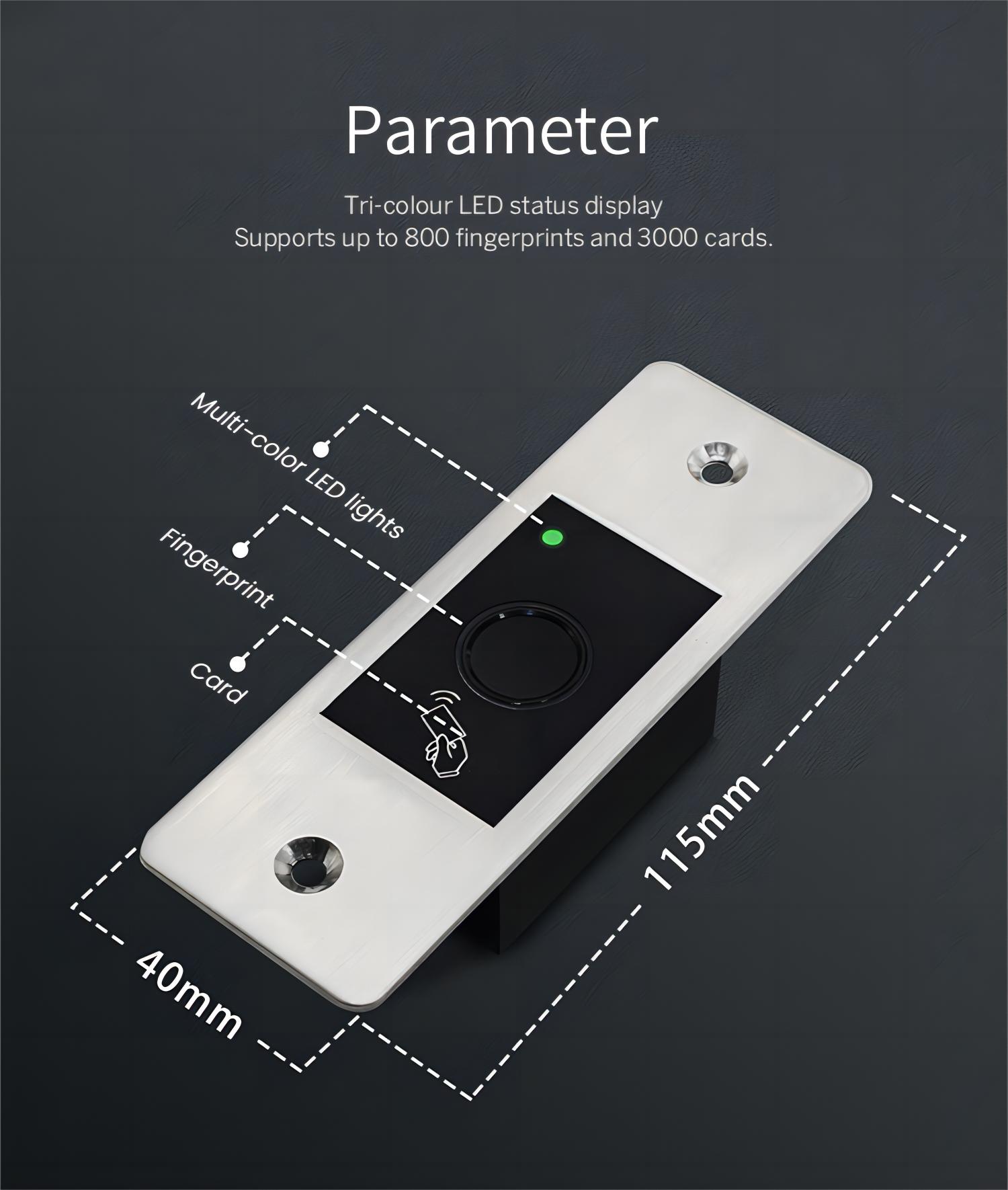

| Dimensions | L115xW40xH30mm |
