Model:
EF4-BTBrand:
JINYING| Product Parameter | Parameter Descr1ption |
| JINYINGModel | EF4-BT |

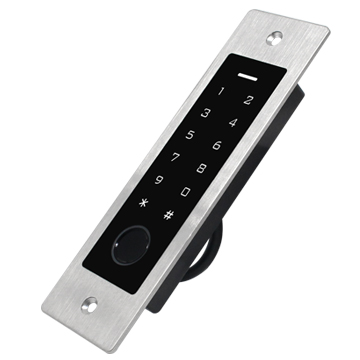

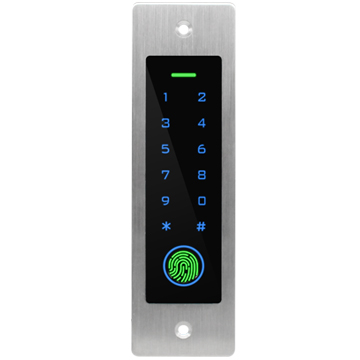

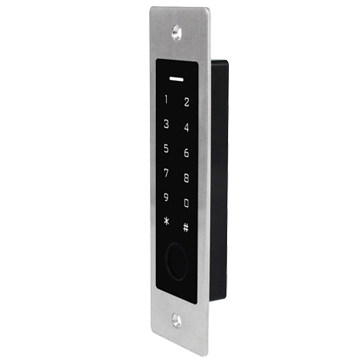

| Product Name | Embedded Fingerprint Touch Keypad |
| User Capacity | 1000 Cards/PINS |
| Normal Users | 990 |
| Visitor Users | 10 |
| Operating Voltage | 12~18V DC |
| Idle Current | <60ma |
| Active Current | <150ma |
| PIN Length | 4~6 digits |
| Proximity Card Reader | EM |
| Radio Technology | 125KHz EM Card |
| Read Range | 2-6 cm |

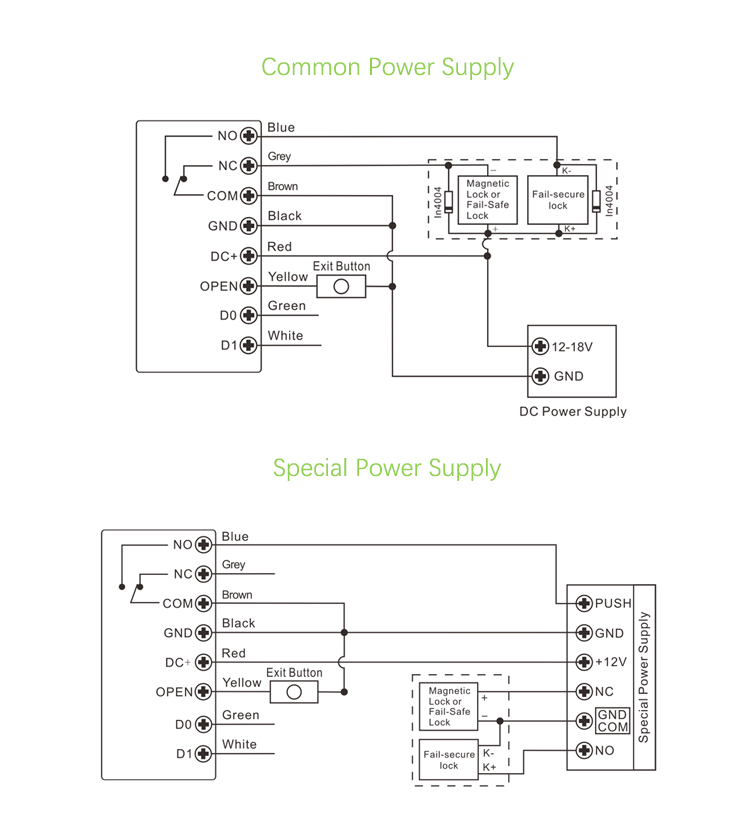

| Wiring Connections | Relay output, exit button, Wiegand input/output |
| Relay | One (NO, NC, Common) |
| Adjustable Relay Output Time | 0-99 Seconds (5 seconds default) |
| Lock Output Load | 2 Amp Maximum |
| Wiegand Interface | Wiegand 26~44 bits input & output (Factory default: Wiegand 26bits) |
| PIN Output | 4 bits,8bits (asc11),10 digits Virtual Number (Factory default:4bits) |
| Environment | Outdoor (IP66) |
| Operating Temperature | -30°C~ 60°C (-22°F ~ 140°F) |
| Operating Humidity | 10%RH-90%RH |
| Physical | Stainless Steel Plate |
| Color | Silver & Black |

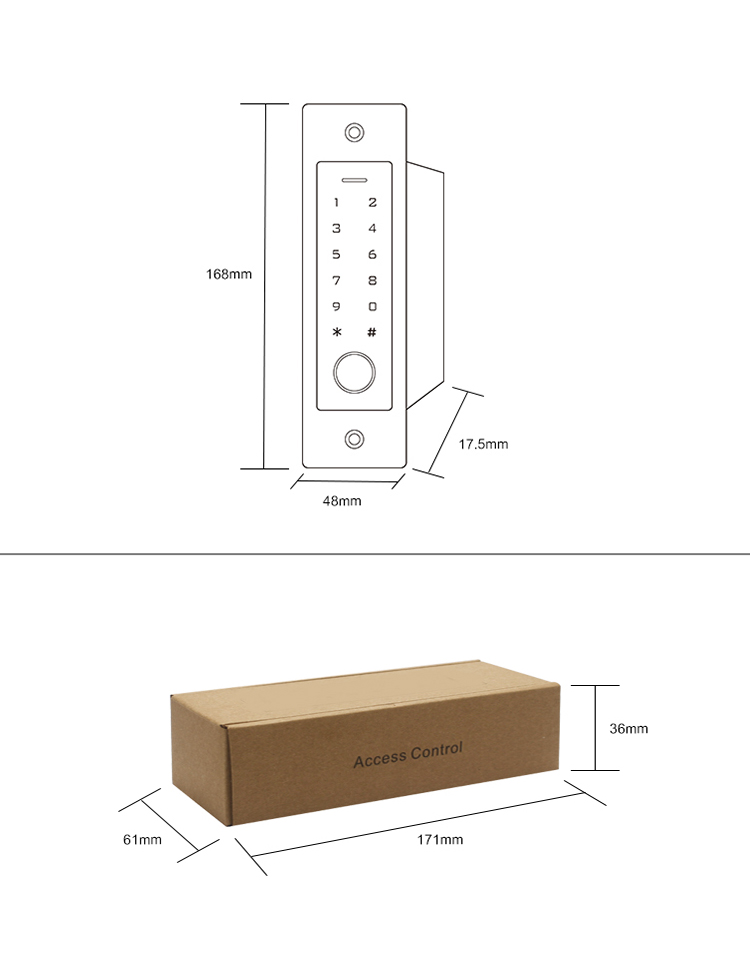

| Dimensions | 165x48x22mm |
| Unit Weight | 138g |
| Shipping Weight | 198g |
