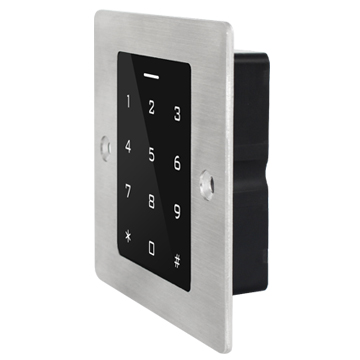

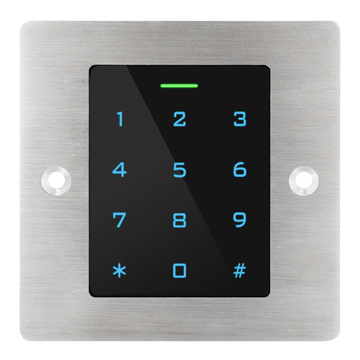

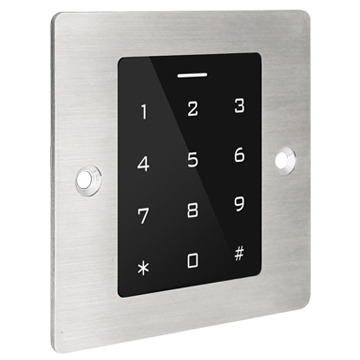

EH3 Embedded Touch Keypad

The device is a metal case standalone touch keypad with embedded design, the wiegand input&output make it also could be a controller or wiegand reader.

  • Model:

    EH3

  • Brand:

    JINYING
Inquiry now
  • Parameters
    •
  • Dimensions
    •

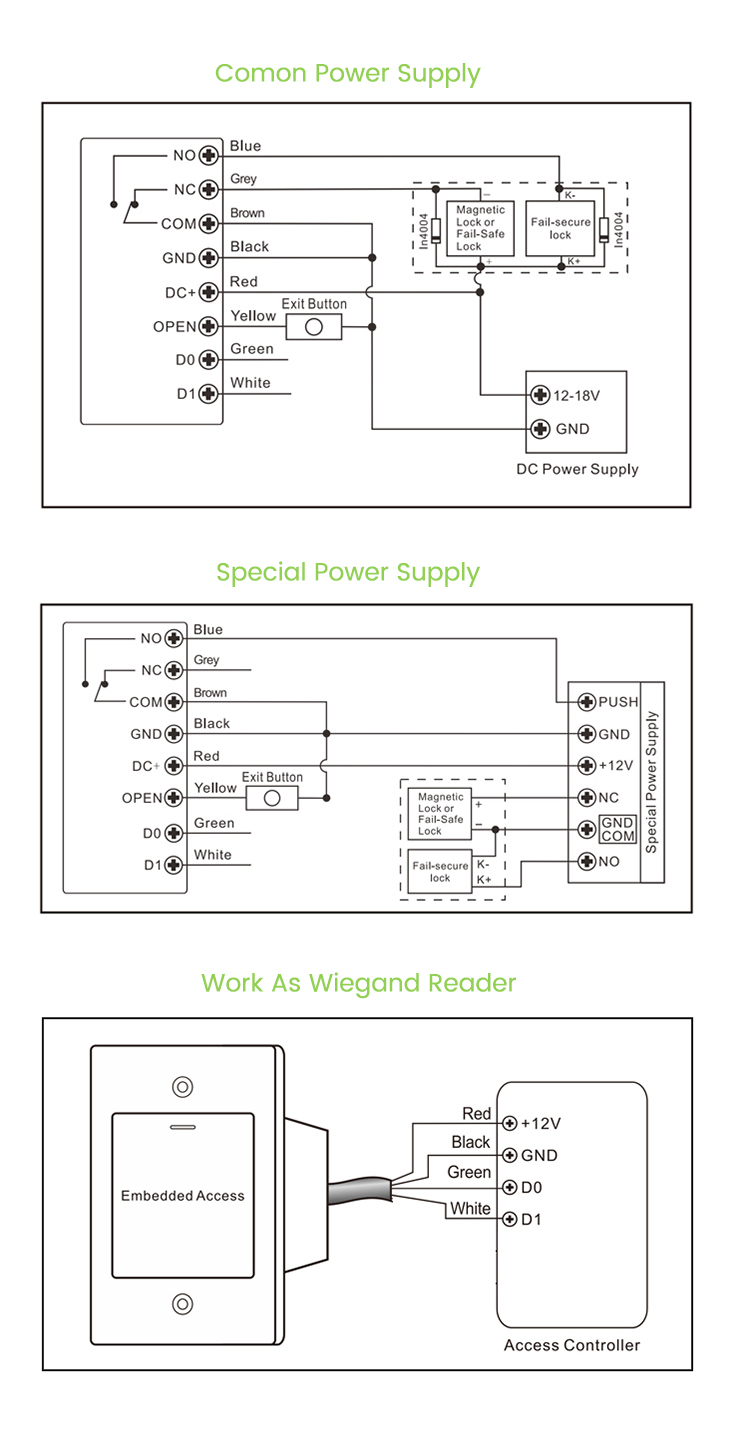

  • Diagram
    •

EH4 Embedded Touch Keypa


> Metal case, embedded design

>One relay,1000 users (990 common users+10 visitor users)

>Touch keypad，PIN length:4~6 digits

>Card Type:125KHz EM Card

>Tri-color LED display

>Backlit keypad,can set automatic OFF after 20 seconds

> Wiegand 26 bits output

> Wiegand 26/34 bits input automatic identification


Product ParameterParameter Descr1ption
JINYINGModelEH3
Product NameEmbedded Touch Keypad

User Capacity1000 Cards/PINS
Normal Users990
Visitor Users10
Operating Voltage12~18V DC
Idle Current<50mA
Active Current<120mA
KeypadTouch Keypad (12 Keys)
Proximity Card ReaderEM
Radio Technology125KHz EM Card
Read Range2-6 cm
Wiring ConnectionsRelay Output, Exit Button, wiegand(in&out)
RelayOne (NO, NC, Common)
Adjustable Relay Output Time0-99 Seconds (5 seconds default)
Lock Output Load2 Amp Maximum
EnvironmentOutdoor (IP66)
Operating Temperature-40°C~ 60°C (-40°F ~ 140°F)
Operating Humidity10%RH-90%RH
PhysicalStainless Steel Plate
ColorSilver & Black

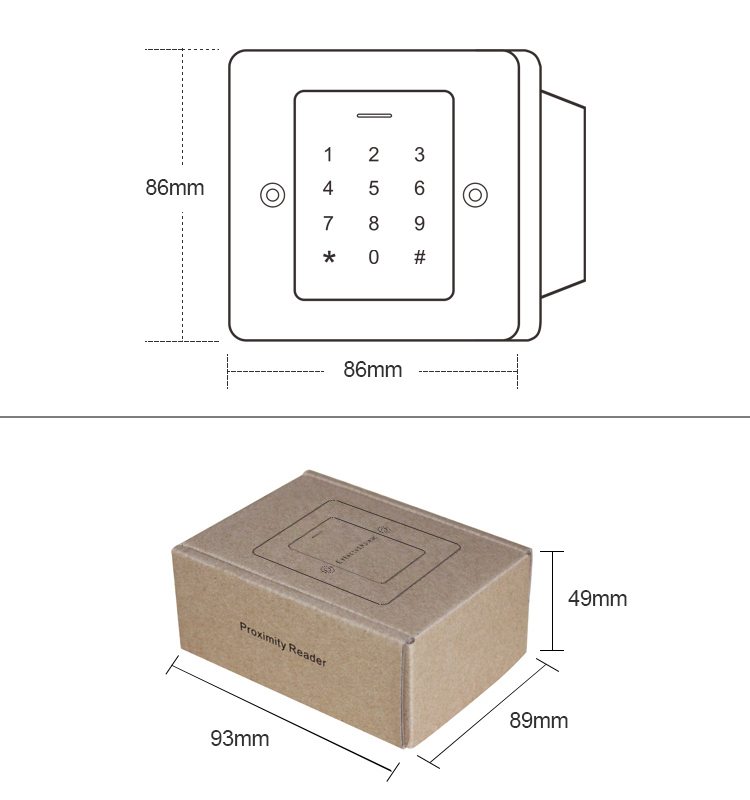

Dimensions86x86x22mm
Unit Weight205g
Shipping Weight230g
