Model:
T12Brand:
JINYING| Product Parameter | Parameter Description |
| JINYINGModel | T12 |

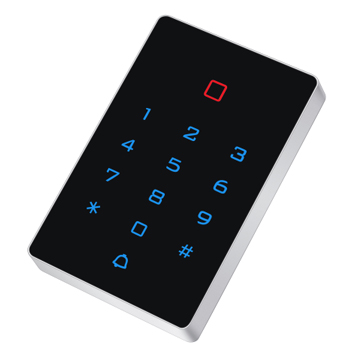

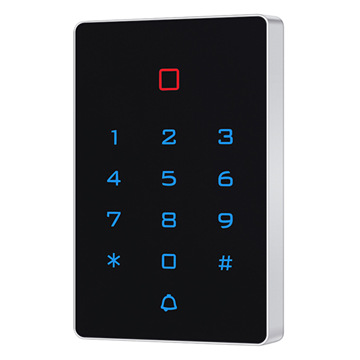

| Product Name | Touch Screen Standalone Access Controller |
| Card type | EM/MF |
| Working voltage | DC12-24V |
| Static Electricity | ≤35mA |
| Reading Range | 2 ~ 5cm |
| Ambient Temperature | -40～60℃ |
| Humidity | 10%～90% |
| Electric Lock Output | ≤1A |
| Short-Circuit Protect | ≤100μS |
| Relay Output Delay Time | 0-99 s |

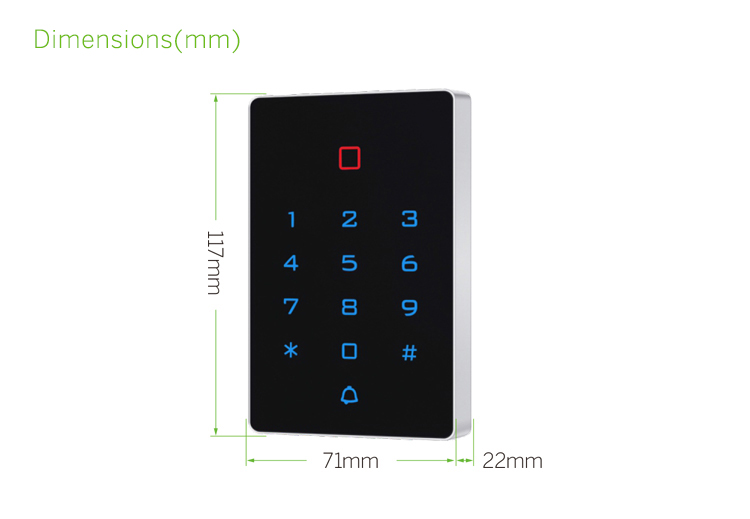

| Dimension | 114*75*16mm |
| Unit Weight | 0.15KG |
| Standard Package | 100PCS |
| Carton Weight | 16.5KG |
| Carton Size | 57.5*47.5*23.7cm |
