Model:
JINYING-C02Brand:
JINYING| Product Parameter | Parameter Description |
| JINYINGModel | JINYING-C02 |
| Product Name | Standalone Access Controller |
| Card type | EM / Mifare |
| Working frequency | 125KHz / 13.56MHz |
| Capacity | 1000 users |
| Card reading distance | 1-15cm |
| Working voltage | 12~30VDC |
| Working current | 150mA |
| Working temperature | 0℃~45℃ -10℃~55℃ (storage) |
| Relative humidity | 40%RH~90%RH(working); 20%RH~90%RH(Storage) |
| Support users | no user limit, support 1000 groups of personal passwords |
| Add and subtract card method | computer add card, no user limit |

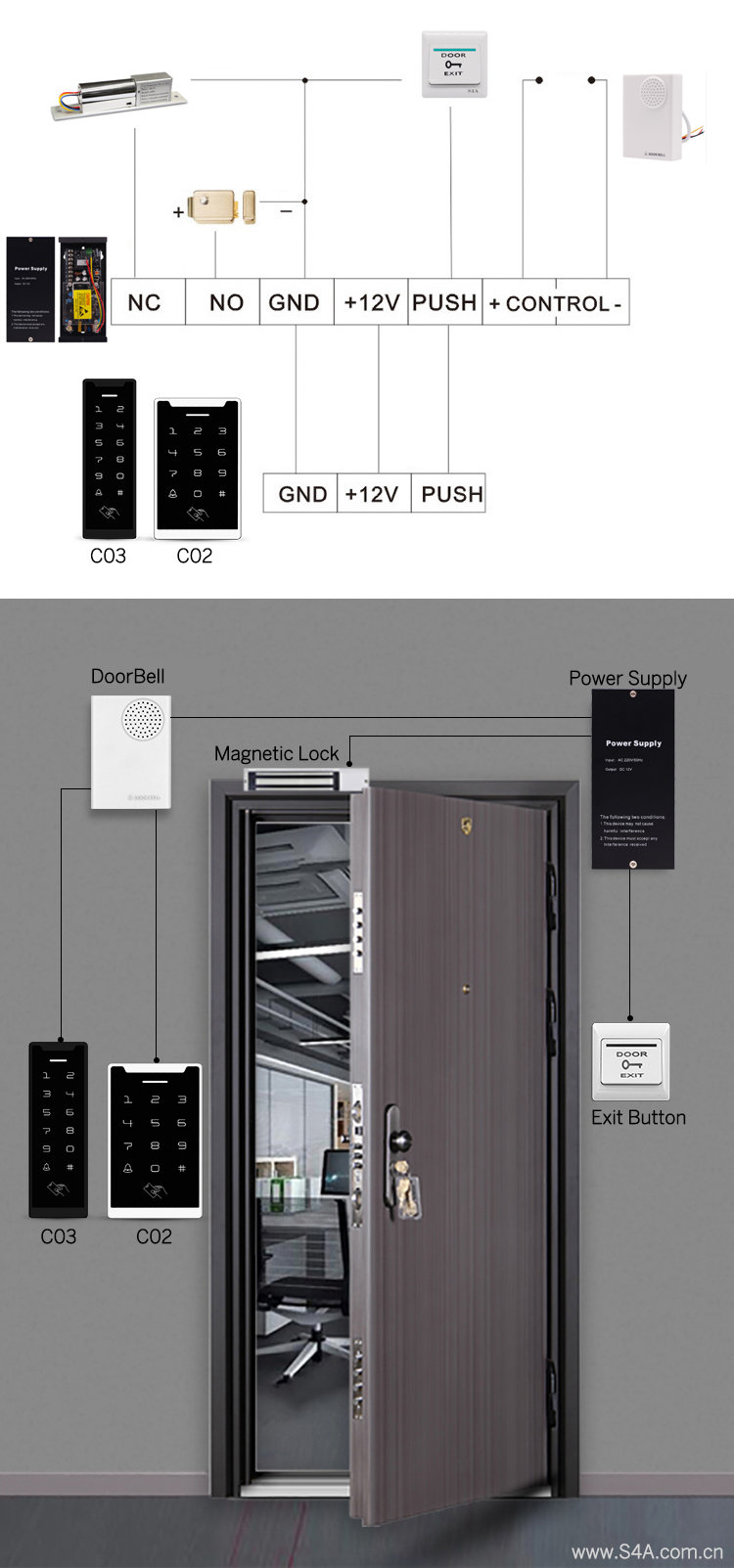

| External device port | electric lock (including relay output and level output) |

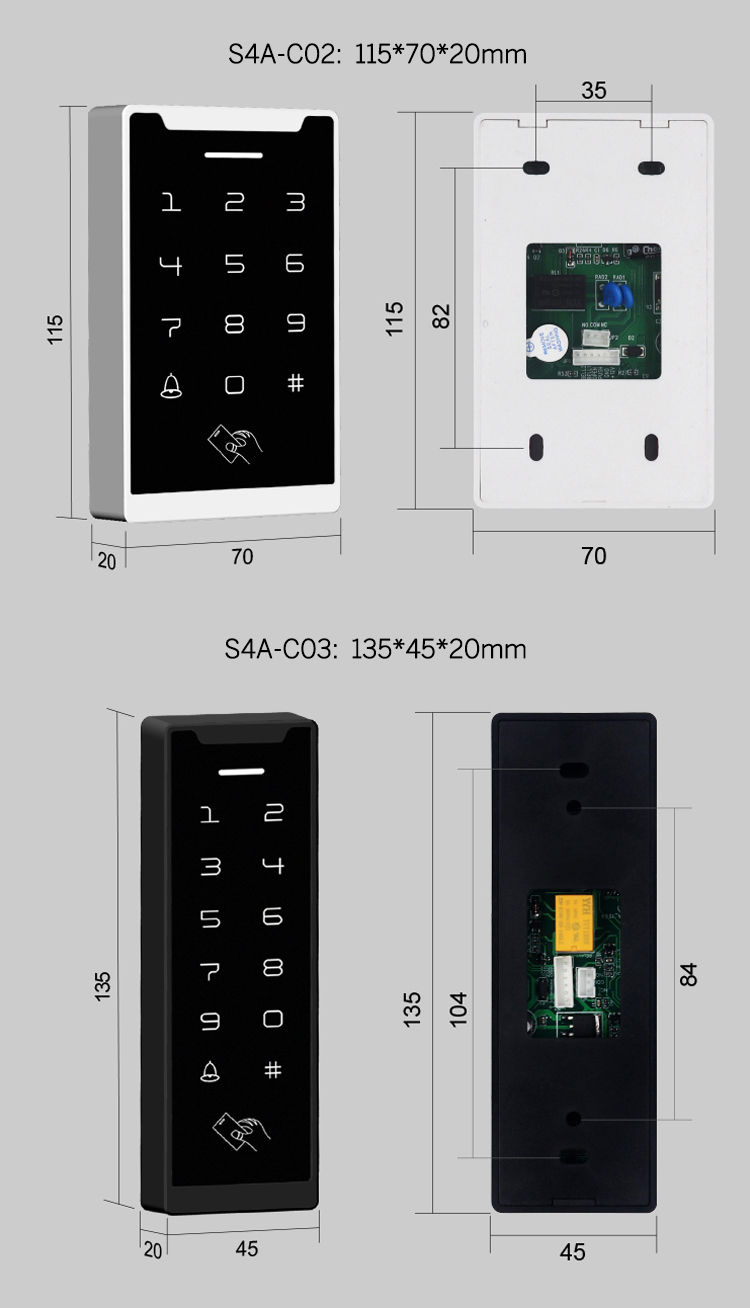

| Dimensions | 115*70*20mm |
