Model:
FTZN-003Brand:
JINYING| Product Parameter | Parameter Descr1ption | |
| JINYINGModel | FTZN-003 | |

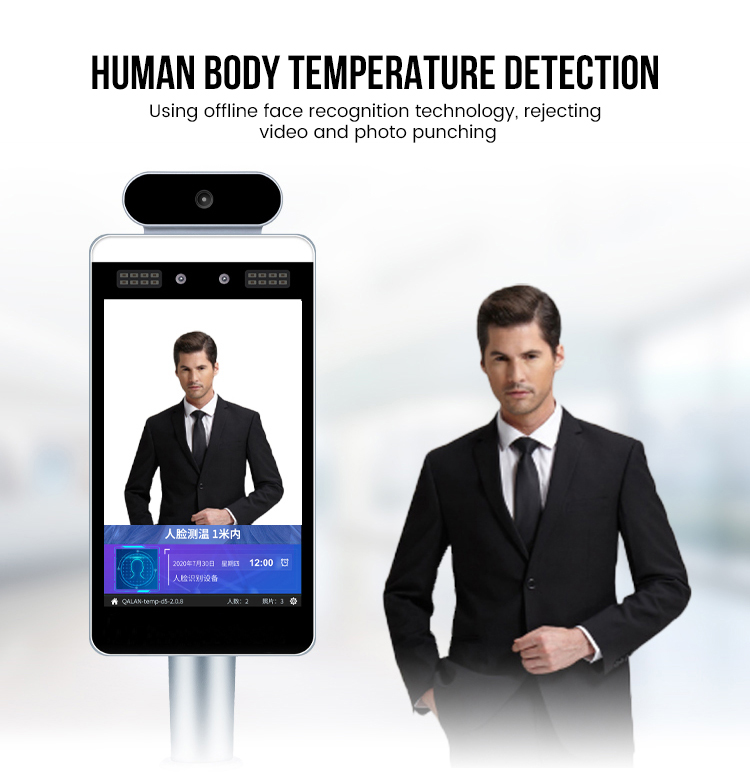

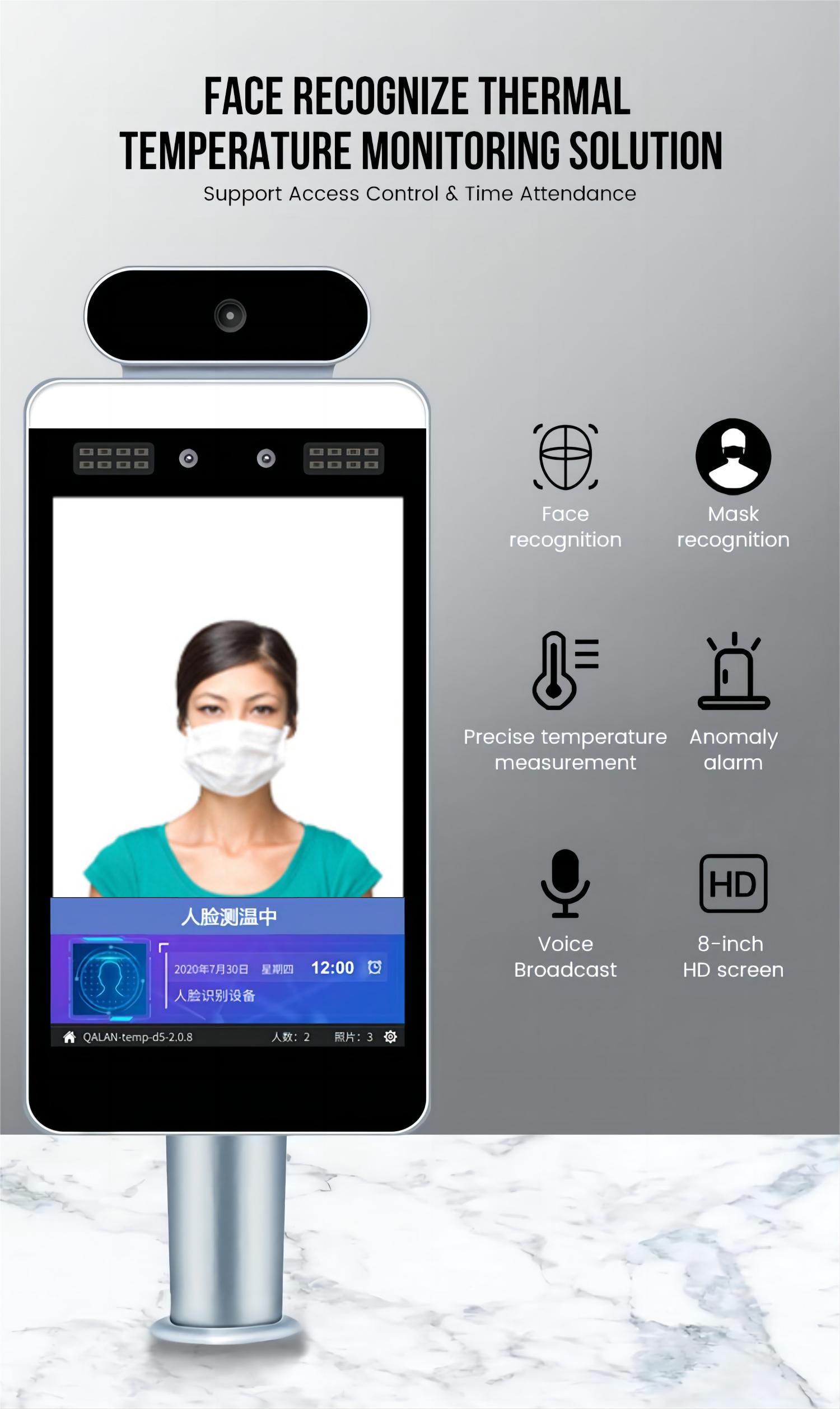

| Product Name | Face Recognize Thermal Temperature Monitoring System | |
| Language support | English, Chinese, Polish, Russian, Thai, Spainsh, Korean, Italian, Japanes | |
| Screen | Size | 8 inches, IPS LCD screen |
| Brightness | 500 LU | |
| Resolution | 800*1028HD screen | |

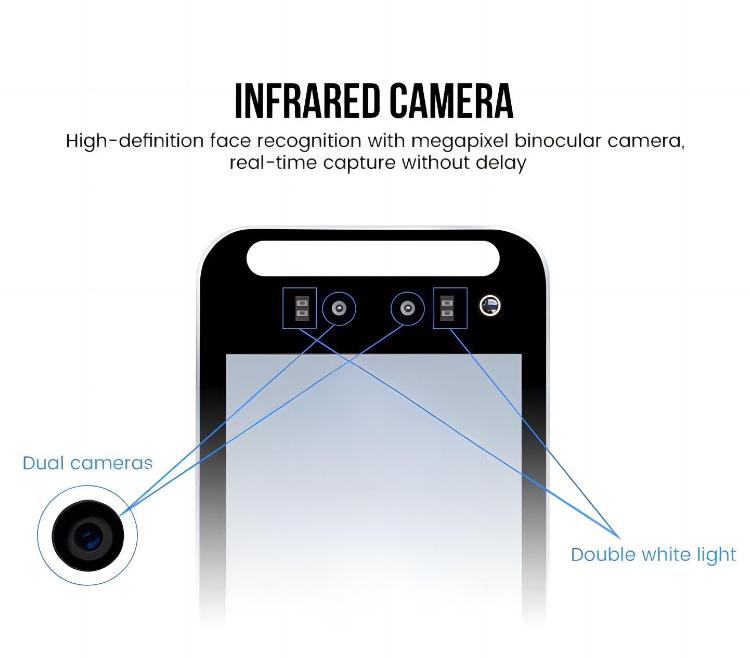

| Camera | Resolution | 200W*200W |
| Number of cameras | 2 | |
| Type | RGB Camera | |
| Aperture | F2.0 | |
| Focal length | 4.3mm | |
| White balance | Automatic | |
| Wide dynamic | Support | |
| Vertical wide angle | 52° | |
| Horizontal angle | 29° | |
| Core parameters | CPU | 4Core, 1.8GHz |
| Device interface | 2GB Memory, 8GB Storage | |

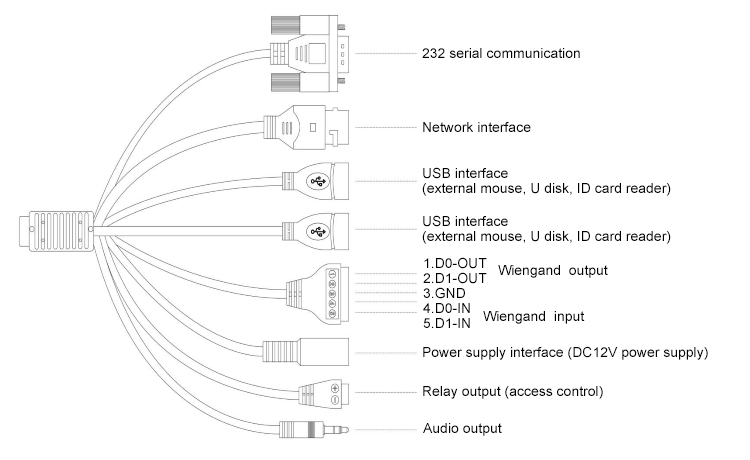

| Interface | Audio | 1 Audio output(line out) |
| Video | HDMI2.0 Type-A interface 1 | |
| Relay output | 1 relay interface | |
| Network Interface | 1 RJ45 10M/100M adaptive Ethernet port, WIFI | |
| Function | Face Detection | Also supports detection and tracking of 5 people |
| 1: N Face recognition | Under the condition of three thousandths of false recognition rate, the recognition accuracy rate is 99.7% | |
| Stranger detection | Support | |
| Recognition distance configuration | Support | |
| Biopsy | Support | |
| UI interface configuration | Support | |
| Device remote upgrade | Support | |
| Deployment mode | Support public network and local area network | |
| Comparison of witness | Support (separately purchase ID card reader) | |
| Face Detection | Support | |
| 1: N Face recognition | Within 1 meter | |
| Stranger detection | ≤ ±0.3℃ | |
| Recognition distance configuration | 30℃~42.5℃ | |
| Biopsy | Yes | |
| UI interface configuration | Support | |
| Temperature alarm value can be set | Support | |
| Wear a mask to identify | Support | |
| Body temperature over temperature alarm | Support | |
| Outdoor temperature measurement | Support | |
| The temperature alarm value can be-set | Support | |

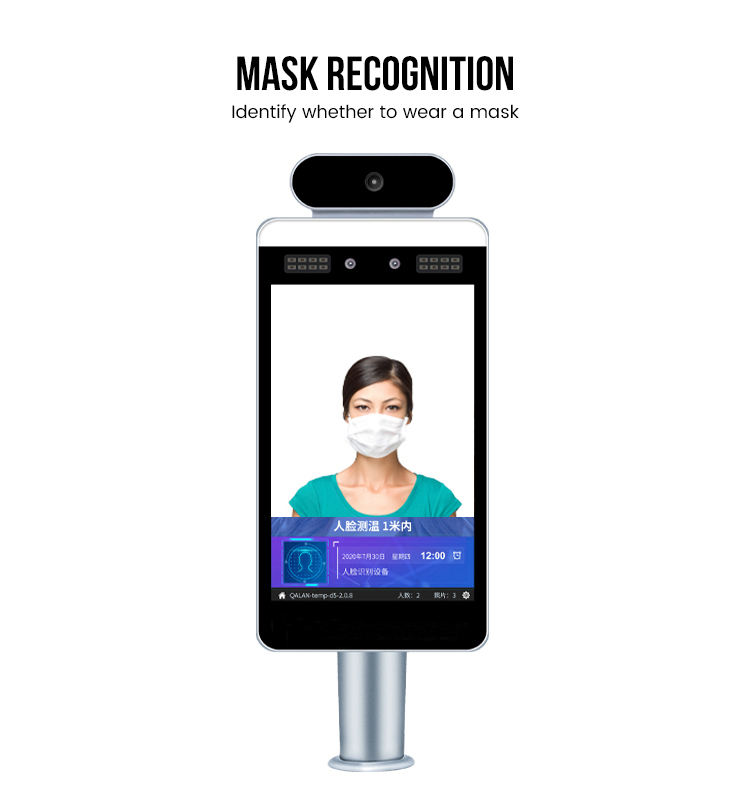

| Mask recognition | Support | |

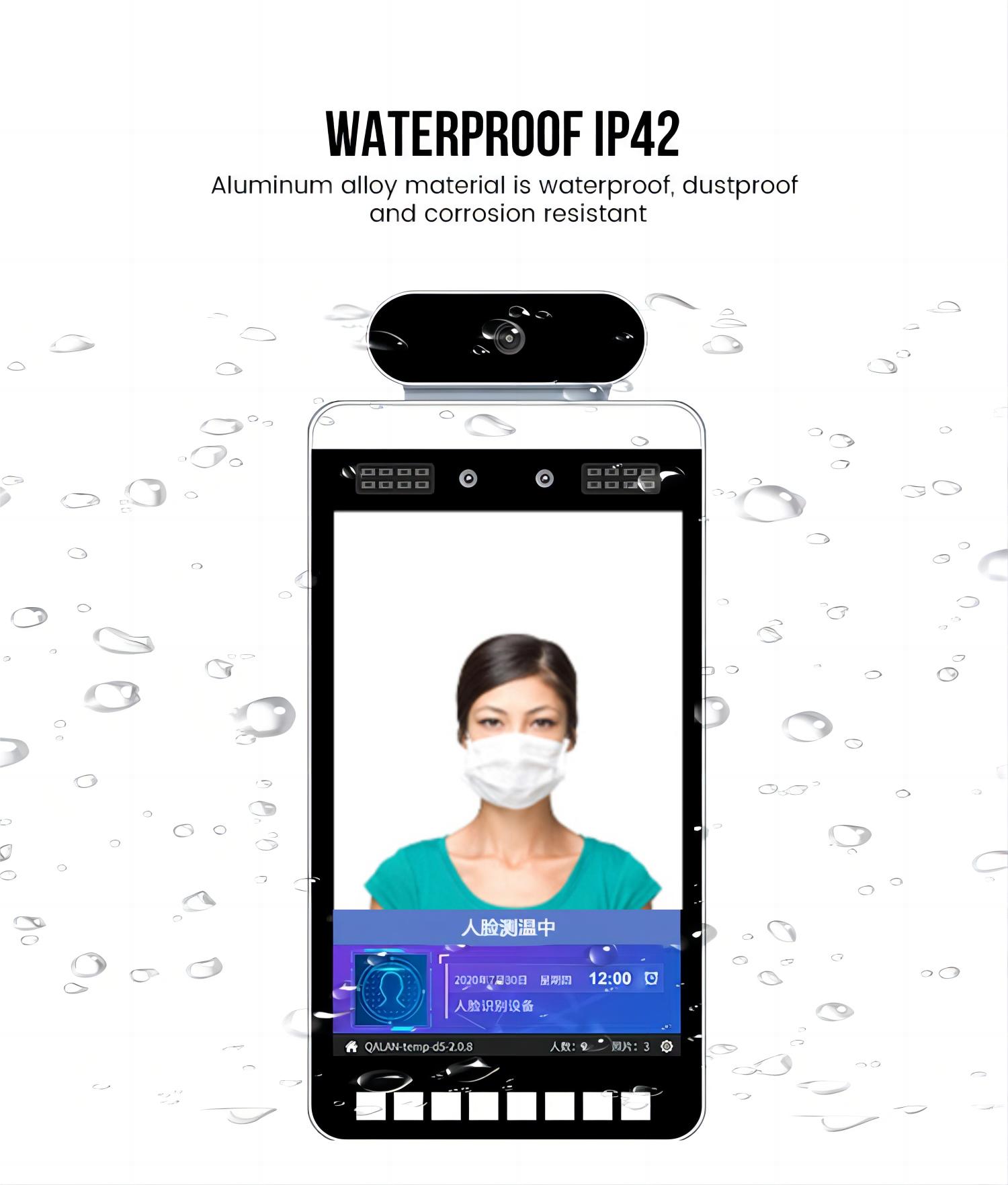

| General parameters | Protection class | IP42, certain dustproof and waterproof function |
| Power supply | DC12V(±10%) | |
| Operating temperature | -10℃~60℃ | |
| Working humidity | 10%~90 % | |
| Power consumption | 10W MAX | |

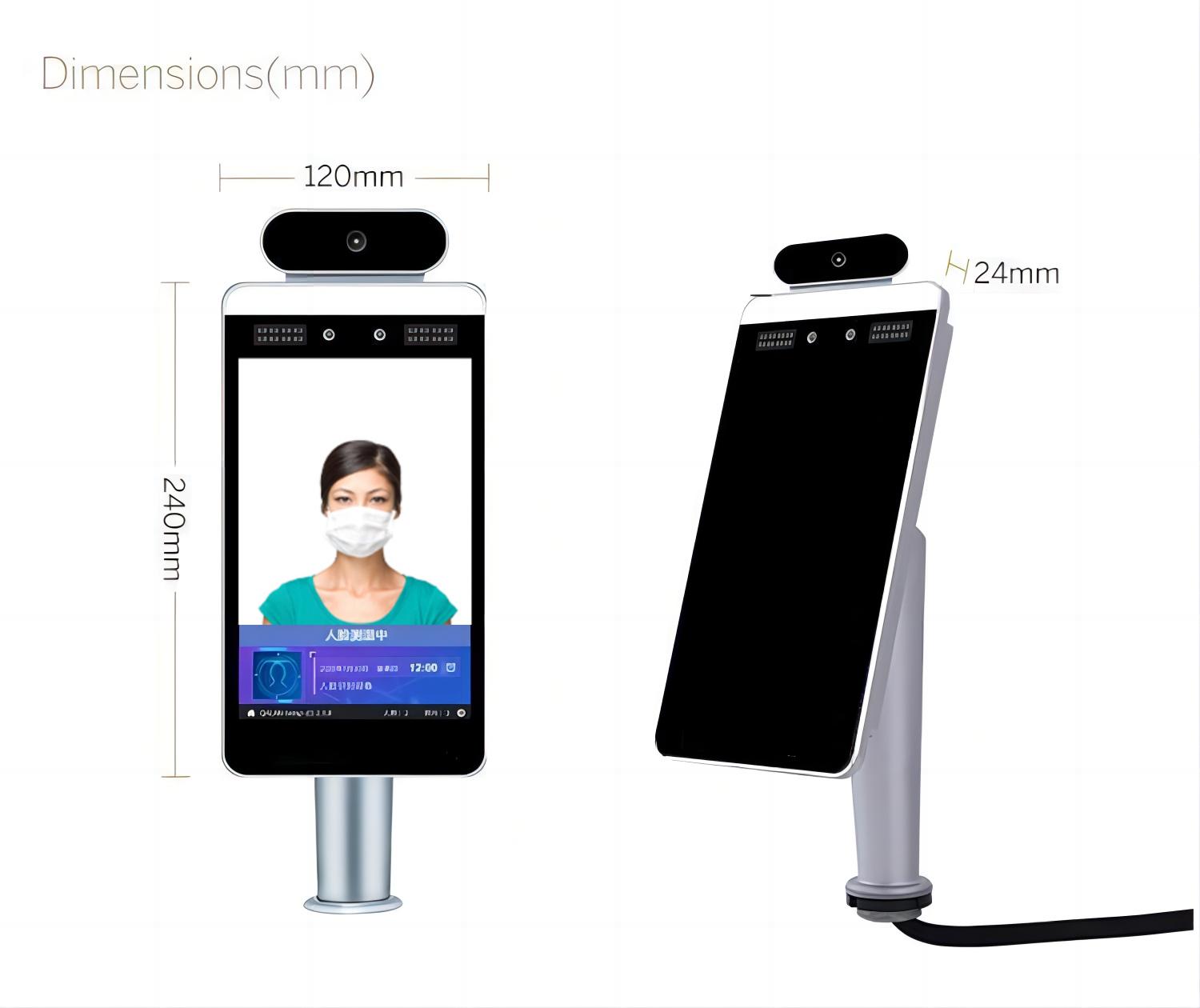

| Equipment size | 252x130x26mm | |
| Weight | ≈2kg | |

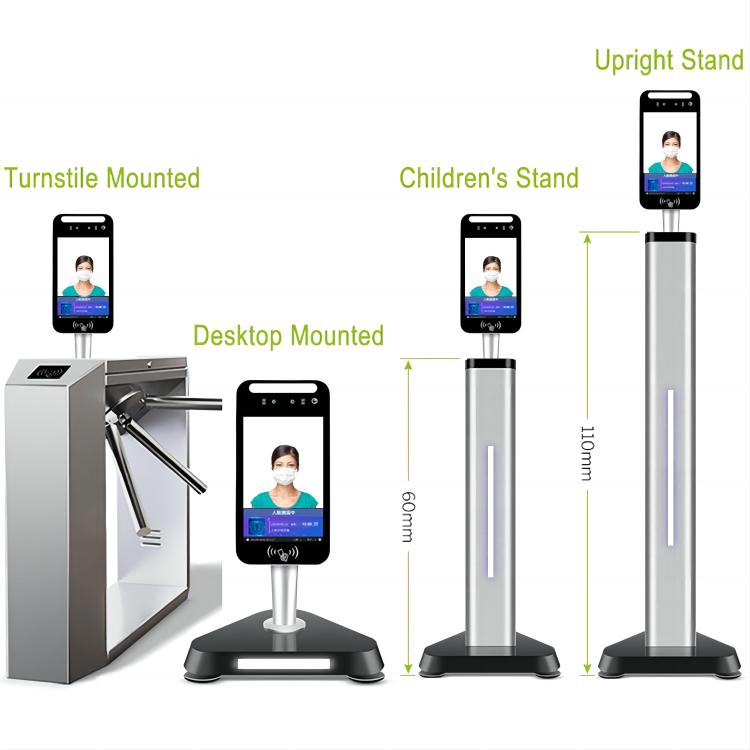

Here listed 4 Different Installation Stand for Facial Recognition Thermal Temperature Monitoring:
