Model:
UPS-125Brand:
JINYING| Product Parameter | Parameter Description | ||
| Product Name | Uninterrupted Power Supply | ||
| JINYINGModel | UPS-1210/8 | UPS-1210/4 | UPS-1210/1 |
| Input Voltage | 175 ~ 245V | 175 ~ 245V | 175 ~ 245V |
| Output Voltage | 12.5 ~ 14.5V | 12.5 ~ 14.5V | 12.5 ~ 14.5V |
| Output Current Maximum | 10A | 5A | 5A |
| Output Current per Channel | 1A | 1A | 4A |
| Number of output channels | 8 | 4 | 1 |
| Maximum Battery Capacity | 18Ah | 9Ah | 9Ah |
| Battery Charge Voltage | 13.5 ~ 14.5V | 13.5 ~ 14.5V | 13.5 ~ 14.5V |
| Battery Cut-off Voltage | 11V | 11V | 11V |
| Temperature Range | -20 ~ + 55℃ | -20 ~ + 55℃ | -20 ~ + 55℃ |
| Working Hours | Constant | Constant | Constant |

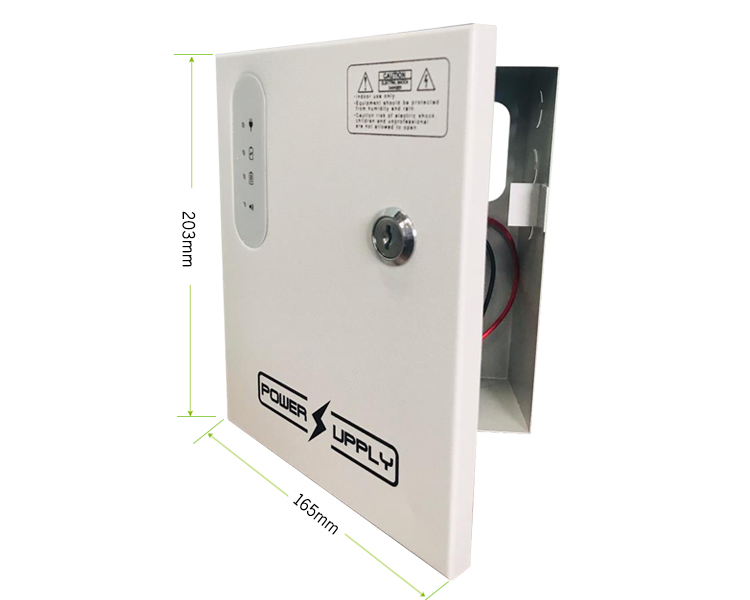

| Dimensions | 295*195*90mm | 203*165*65mm | 203*165*65mm |
| Unit Weight | 1.1KG | ||
| Standard Package | 20PCS | ||
| Carton Weight | 22.3KG | ||
| Carton Size | 46*42*36 (cm) | ||
