Model:
ACB-PS08ABrand:
JINYING| Product Parameter | Parameter Description |
| JINYINGModel | ACB-PS08A |

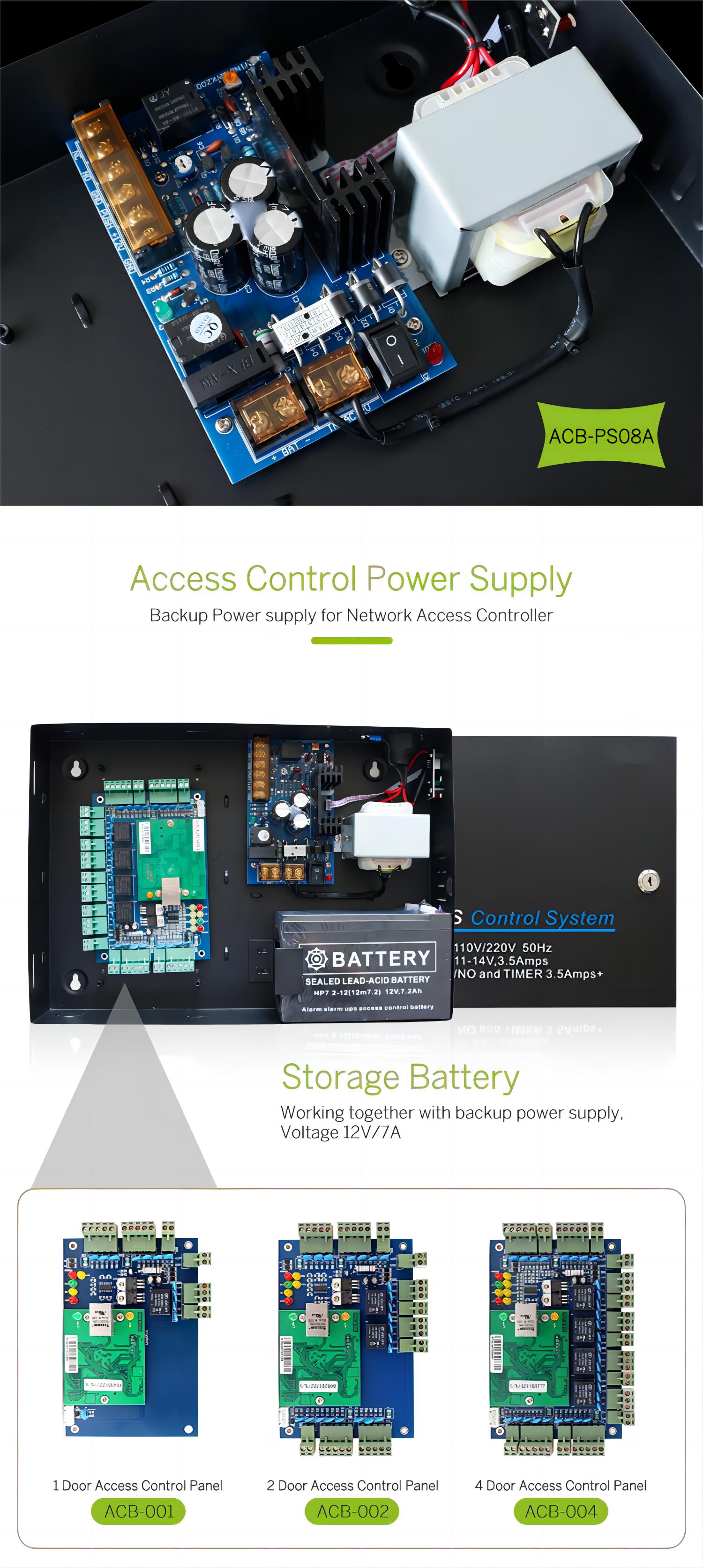

| Product Name | Backup Power Supply for Access Control Board |
| Input Voltage | AC180-235V / 50Hz |
| Output Voltage | DC9V-14V / 5A |
| Output Contact | Lock, Access control, Exit Button |
| Material | Shell:Iron Material, Painted |
| Time Relay | 0～15sec |
| Suitable For | ACB Series Access Control Board. |

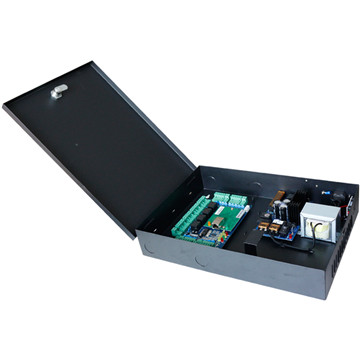

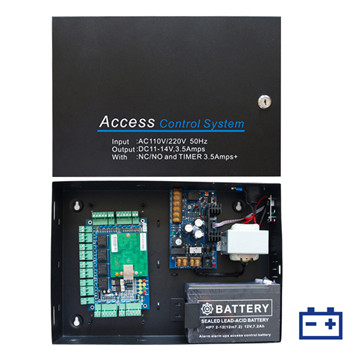

| special Design | box can accommodate backup power supply and control board |
| Optional Accessories | PS-400 Storage Battery,12V/7AH |

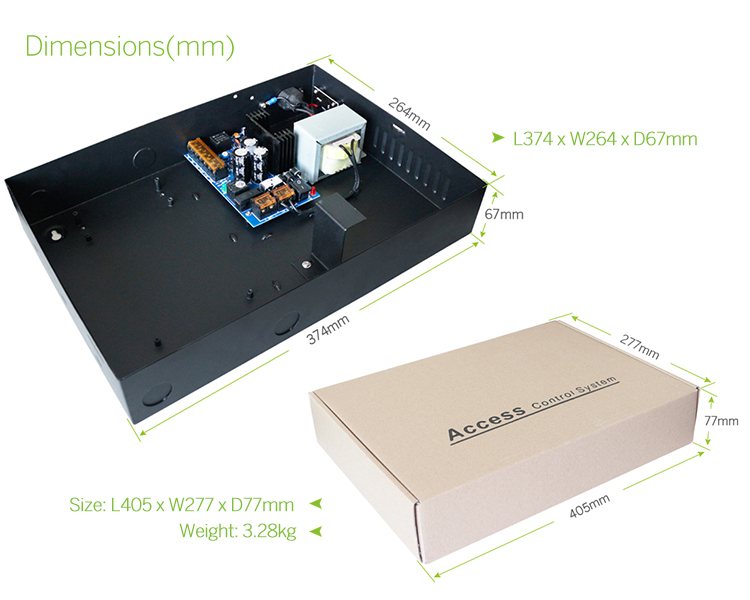

| Dimensions | 374 x 264 x 67mm |
| Unit Weight | 3.28KG |
| Standard Package | 8PCS |
| Carton Weight | 27.5KG |
| Carton Size | 33*43*57 (cm) |
