Model:
12V 1600WBrand:
JINYING| Product Parameter | Parameter Description |
| JINYINGModel | 12V 1600W |

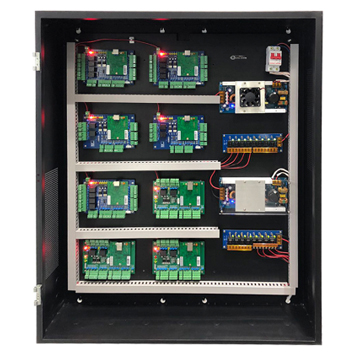

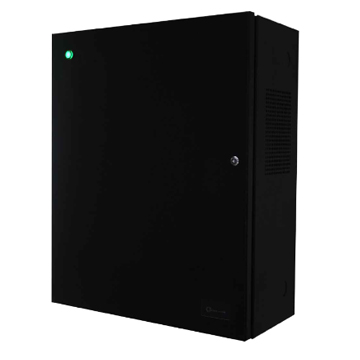

| Product Name | 12V 1600W Access Power Supply Maximum support 24pcs ACB board |
| Input | |
| Input Voltage | AC85V-265V |
| Frequency Range | 47-65Hz |
| Efficiency | 85% (VIN=220V AC) |
| Alternating current | 1.15A-1.4A (180V-240V) |
| Output | |
| Output voltage | DC12V(Factory default) |
| Optional with AC24V DC24V | |
| Output Channel | 24 |
| Rated power | 1600W |
| Function | |
| Function | Manage all ACB board |
| Installation | Hanging mode |

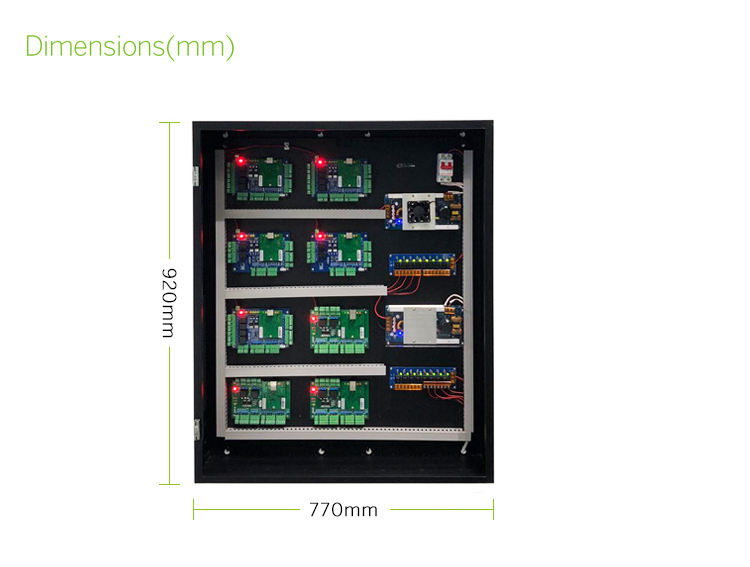

| Dimension | 770 x 920 x 170mm |
| Weight | 33.7KG |
| Protection | Over Load, Short Circuit, Over Voltage, Over heat Protection |
| Guarantee | 2years quality |
