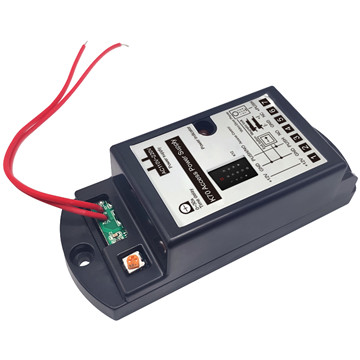

K70 Switching Power Supply Controller

Input: AC110V-240V / 50Hz-60Hz, Output: DC12V / 3A

Inquiry now

Parameters

Dimensions

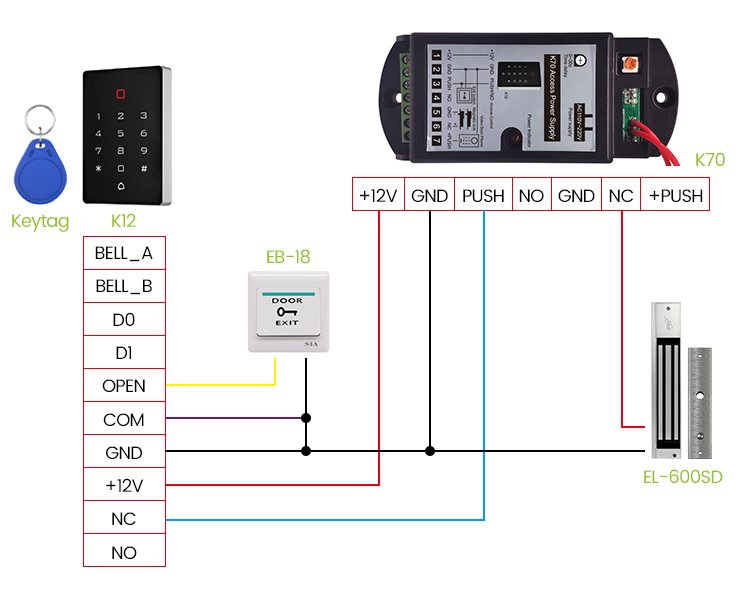

Diagram

Wide input voltage range, small size, high reliability, good electromagnetic compatibility,

high efficiency, perfect protection function, with remote control to open the door, the temperature rise of the electric lock

(compared with the industrial frequency power supply) is greatly reduced.

Product Parameter	Parameter Description
JINYINGModel	K70
Product Name	Wide Voltage Switching Power Supply

Input voltage	110~240VAC
Input frequency	50~60Hz
The output voltage	DC12V
Output current	3A
Output voltage fine-tuning range	10% sword~15% sword
Load stability	1% typical
Output stability	0.5% typical
Ripple and noise	1%, peak-to-peak value (100mVp-p typical value)
Insulation withstand voltage	1500VAC between primary and secondary poles, 1500VAC between primary and shell, 500VAC between secondary shells
Hold time	Typical value is 20ms at full load
Working temperature	-20℃~65℃
Overload protection	All the output terminals are short-circuited or overloaded, the electric lock is protected and the output delay is 0~30 seconds

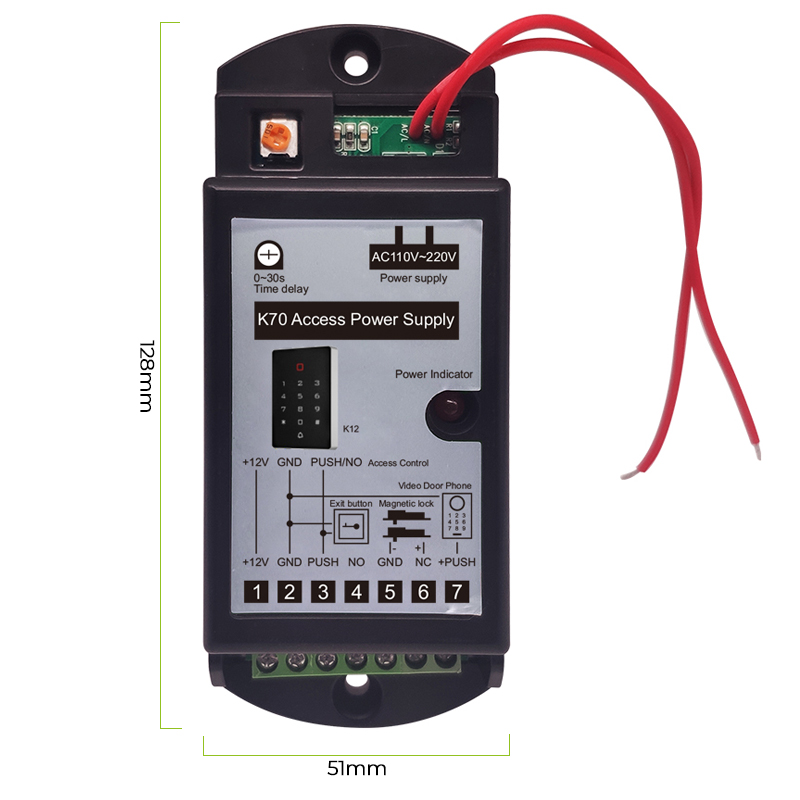

Dimension	128x51x36mm
Weight	105g

Note:

The delay must be adjusted to 0 seconds when connecting the electric lock to prevent the electric lock from being burned.

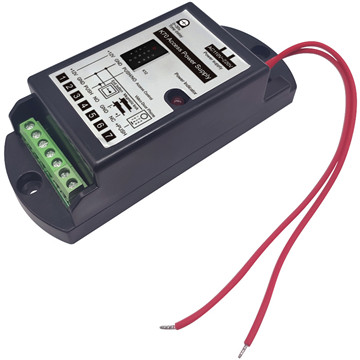

K70 Access Power Supply.jpg

K70 Access Power Supply Controller.jpg
