Model | UHF-105 | UHF-115 |

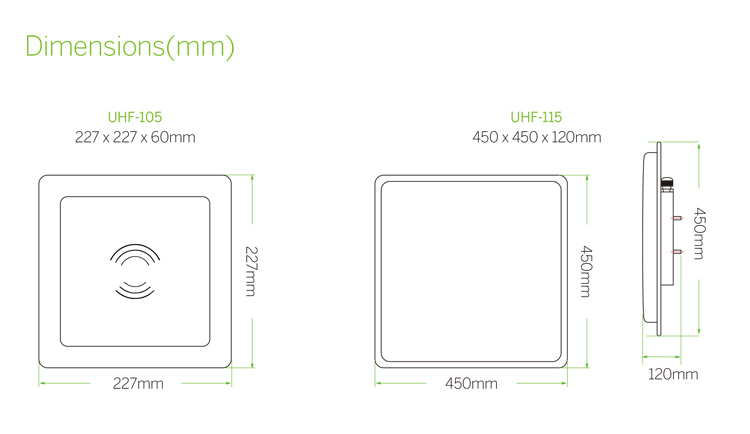

| Dimension | 227 x 227 x 60mm | 450 x 450 x 120mm |
| Reading distance | Up to 6 meters (adjustable) | Up to 15 meters (adjustable) |

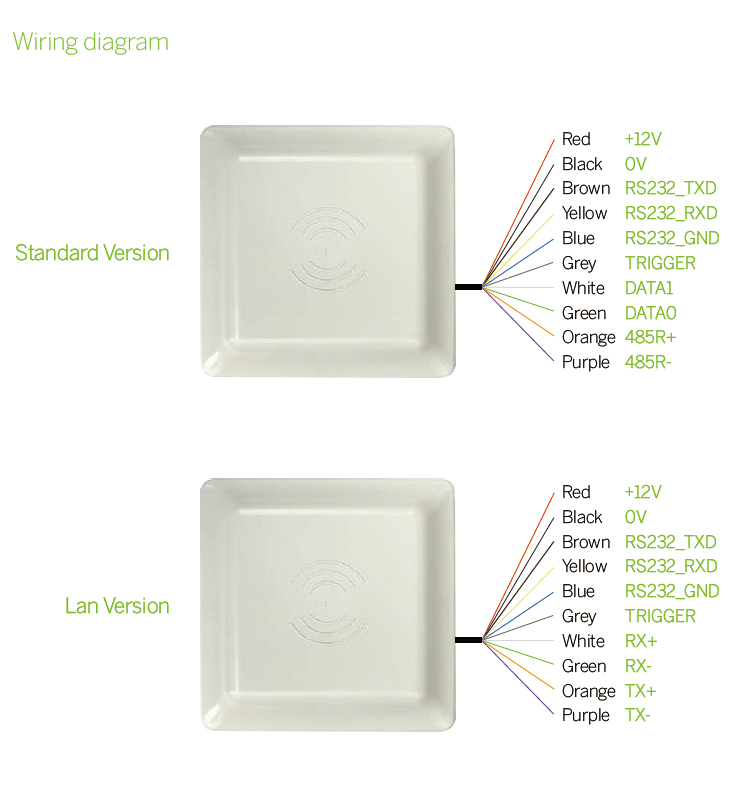

| Default communication interface | Wiegand 26 /Wiegand 34,RS232/RS485 | |
| Option customized | RJ45 ( Ethernet ), WiFi, Relay | |
| Frequency | National standard (920~925MHz), America standard (902~928MHz), or customize other frequency | |
| Shell Material | Antenna Panel:ABS Engineering Plastics; Back Cover:Aluminum Shell | |
| Working Voltage | 9~12V DC | |
| Working Current | 150mA(Always Read) | |
| Working Temperature | -20 °C - 60 °C | |
| Interface Protocol | EPC global UHF Class 1GEN 2/ISO18000-6B / ISO18000-6C | |
| Multiple tags identification | <10 | |
| Working mode | Always read(Default) /Trigger read | |

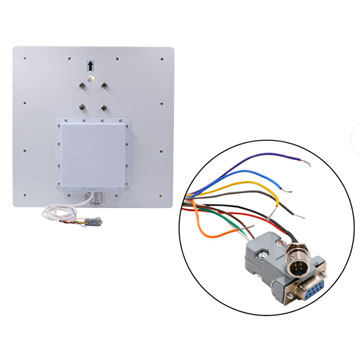

| I/O Interface | Supports external trigger | |
| JINYINGModel | UHF-115 |
| Packing Quantity | 4 PCS/CTN |
| Packing Size(L*W*H) | 52*63*63 (cm) |
| Gross Weight | 25.5KG |
| Volume Weight | 41.5KG |
