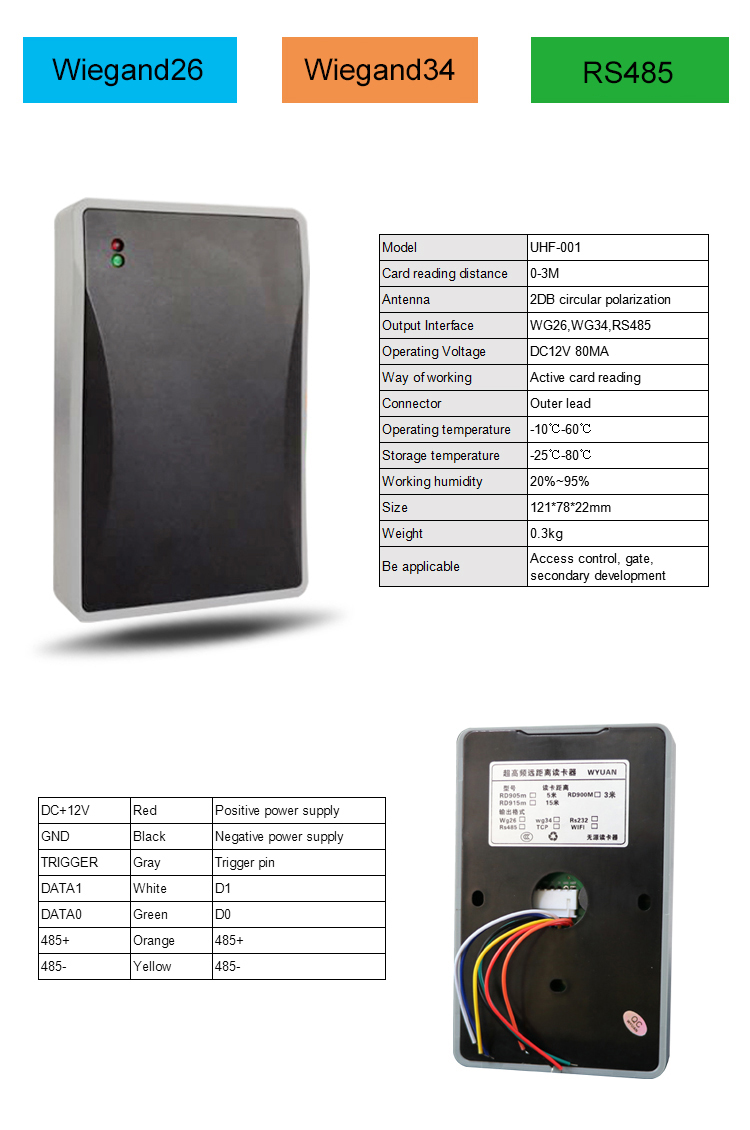

| JINYINGModel | UHF-001 |
| Dimension | 121 x 78 x 22mm |
| Reading distance | 1 meters |
| Default communication interface | Wiegand 26 /Wiegand 34,RS232/RS485 |
| Option customized | RJ45 ( Ethernet ), WiFi, Relay |
| Frequency | National standard (920~925MHz), America standard (902~928MHz), or customize other frequency |
| Shell Material | Antenna Panel:ABS Engineering Plastics; Back Cover:Aluminum Shell |
| Working Voltage | 9~12V DC |
| Working Current | 150mA(Always Read) |
| Working Temperature | -20 °C - 60 °C |
| Interface Protocol | EPC global UHF Class 1GEN 2/ISO18000-6B / ISO18000-6C |
| Multiple tags identification | <10< td=""> |
| Working mode | Always read(Default) /Trigger read |
| I/O Interface | Supports external trigger |
