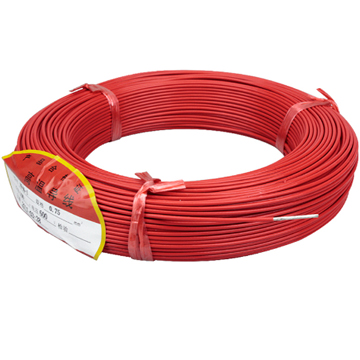

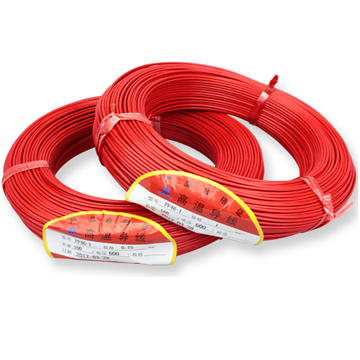

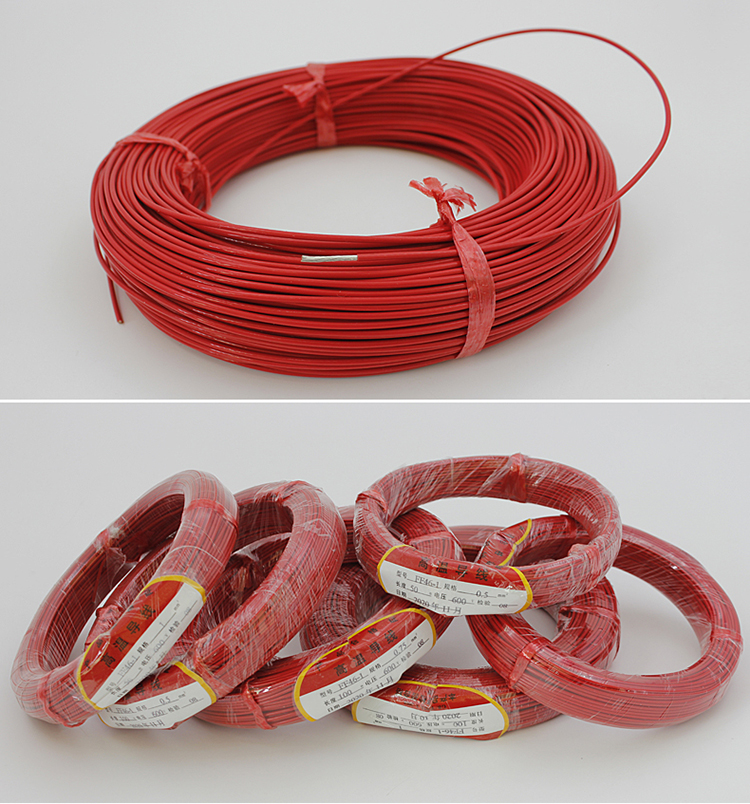

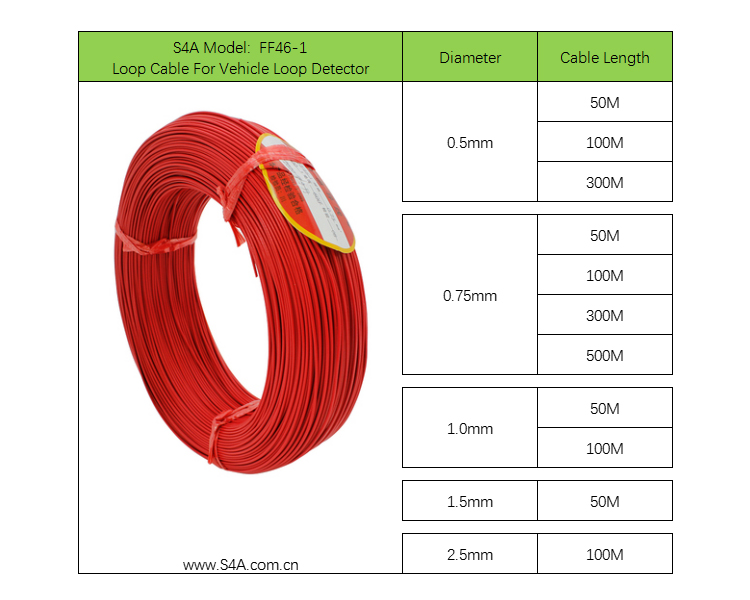

Loop Cable for Vehicle Loop Detector

What is loop detector cable?

Used in vehicle monitoring equipment for detection of traffic movements

via creation of inductive loop to frequency signal flowing in cable

and metallic parts of vehicle. These cables are designed for installation

in a slot cut into the carriageway.

How do you install a loop detector wire?

INSTALLATION TECHNIQUES

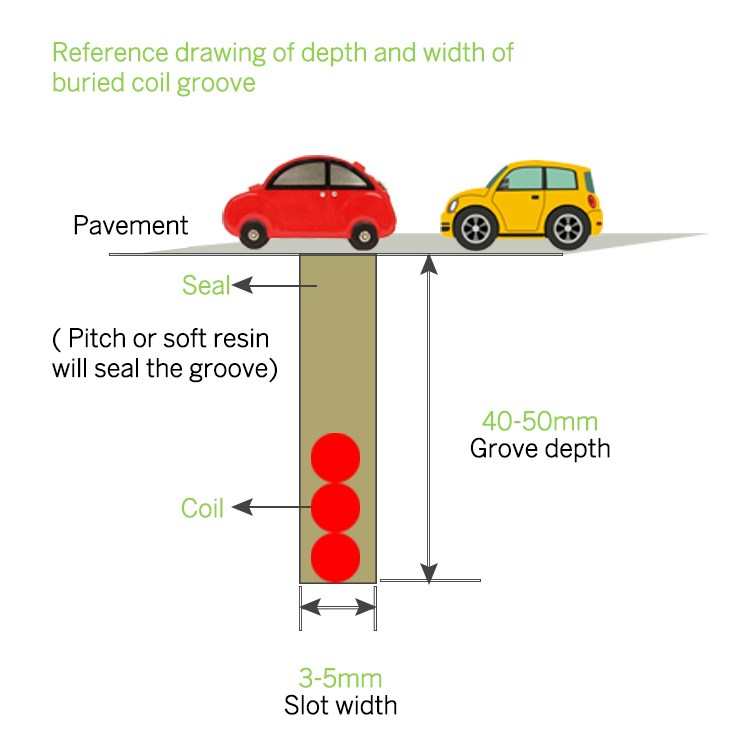

> Cutting a slot.

> Cleaning and drying the slot.

> Laying in the inductive-loop detector wire.

> Sealing the sawcut.

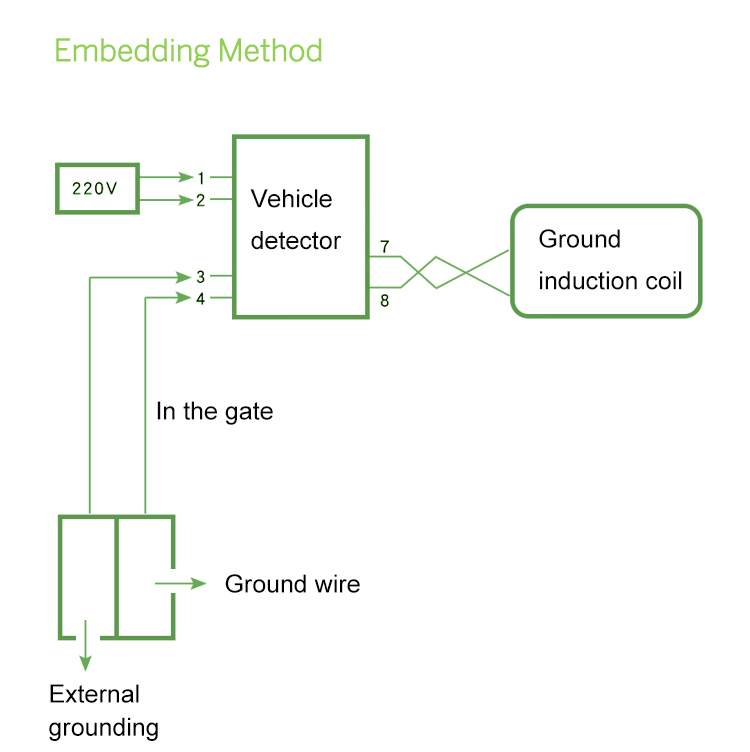

> Connecting the wire to the lead-in cable.

> Connecting the cable to the terminal strip in the cabinet.

> Ensuring the harness connects the terminal strip to the electronics unit.
