U-P008 RFID 125KHz Contactless Smart Card Reader For Access Control Entry Systems

Inquiry now

Parameters

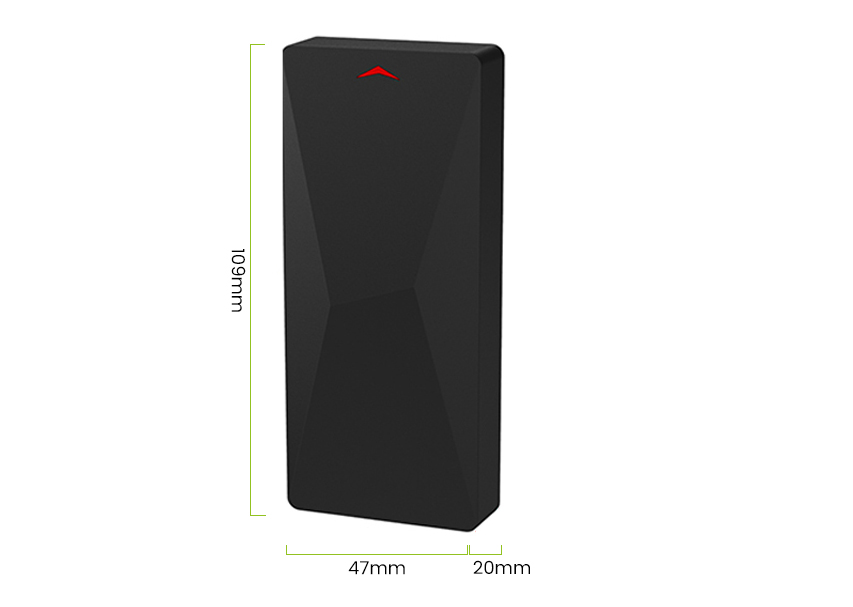

Dimensions

Diagram

U-P008

RFID 125KHz Contactless Smart Card Reader For Access Control Entry Systems

JINYINGModel:

> U-P008EM: 125KHz RFID card reader

> U-P008MF: 13.56MHz Mifare card reader

Features

> Material: Plastic case

> Very low power consumption,standby current less than 30mA

> WG 26 Input and Output

> Fast Search speed : time between reading card and opening the door is less than 0.1S

Specification:

Product Parameter	Parameter Description
JINYINGModel	U-P008
Product Name	RFID 125KHz Contactless Smart Card Reader For Access Control Entry Systems

Card type	EM/MF/HID
Waterproof degree	IP68
Working voltage	DC12V
Static electricity	≤35mA
Reading range	2-5(cm)
Ambient temperature	-40～60℃
Humidity	10%～90%
Wiegand Interface	WG26/34
Size	1104820(cm)

Unit Weight	0.149KG
Standard Package	100PCS
Carton Weight	15KG
Carton Size	57.547.523.7(cm)

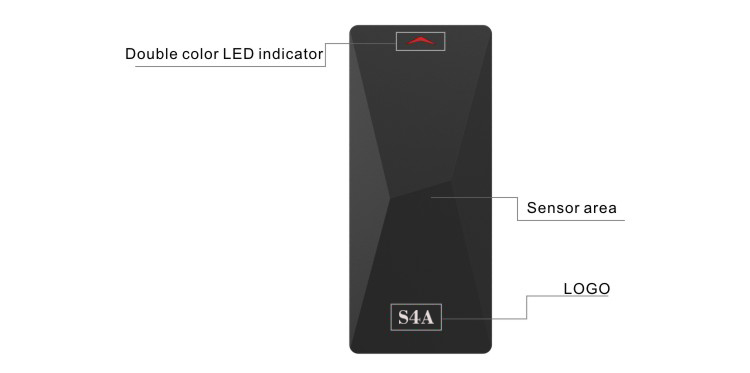

Access Control Card Reader.jpg

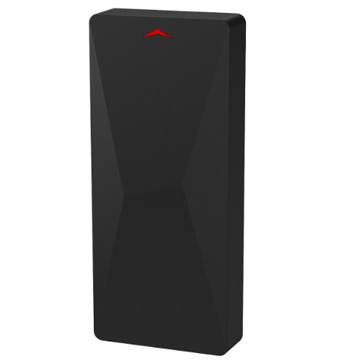

U-P008 Access Control Card Reader.jpg

Wiegand Reader Wiring Diagram.jpg
