R101 Mini 125KHZ EM4100 WG26 Port Access Control Card Reader

Inquiry now

Parameters

Dimensions

Diagram

R101

Mini 125KHZ EM4100 WG26 Port Access Control Card Reader

JINYINGModel:

> R101EM: 125KHz RFID card reader

> R101MF: 13.56MHz Mifare card reader

Features

> Material: Plastic case

> Very low power consumption,standby current less than 30mA

> WG 26 Input and Output

> Fast Search speed : time between reading card and opening the door is less than 0.1S

Specification:

Product Parameter	Parameter Description
JINYINGModel	R101
Product Name	Mini 125KHZ EM4100 WG26 Port Access Control Card Reader

Card type	EM/MF/HID
Waterproof degree	IP68
Working voltage	DC12V
Static electricity	≤35mA
Reading range	2-5(cm)
Ambient temperature	-40～60℃
Humidity	10%～90%
Wiegand Interface	WG26/34
Dimension	824215

Unit Weight	0.108KG
Standard Package	100PCS
Carton Weight	11KG
Carton Dimension	57.547.523.7(cm)

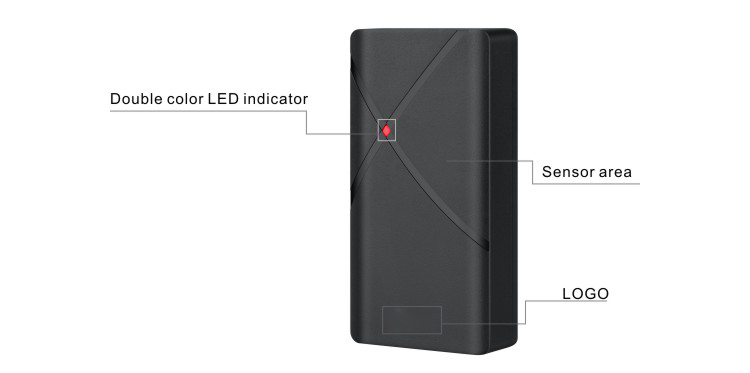

Mini 125KHZ EM4100 WG26 Port Access Control Card Reader (4).jpg

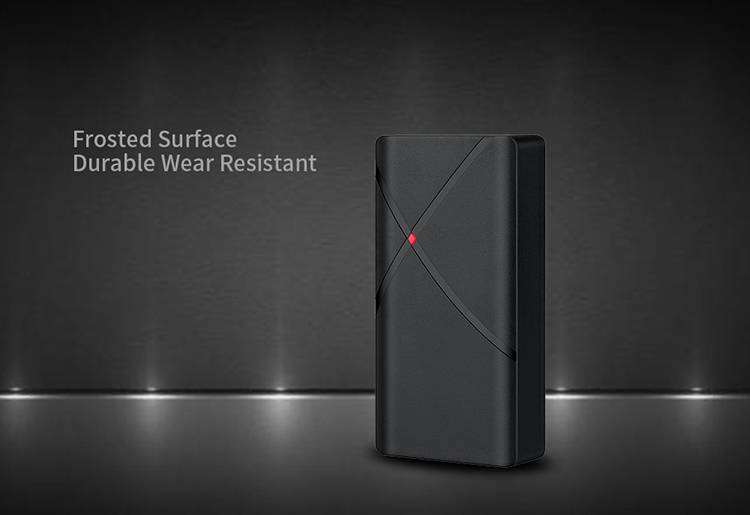

Mini 125KHZ EM4100 WG26 Port Access Control Card Reader (2).jpg

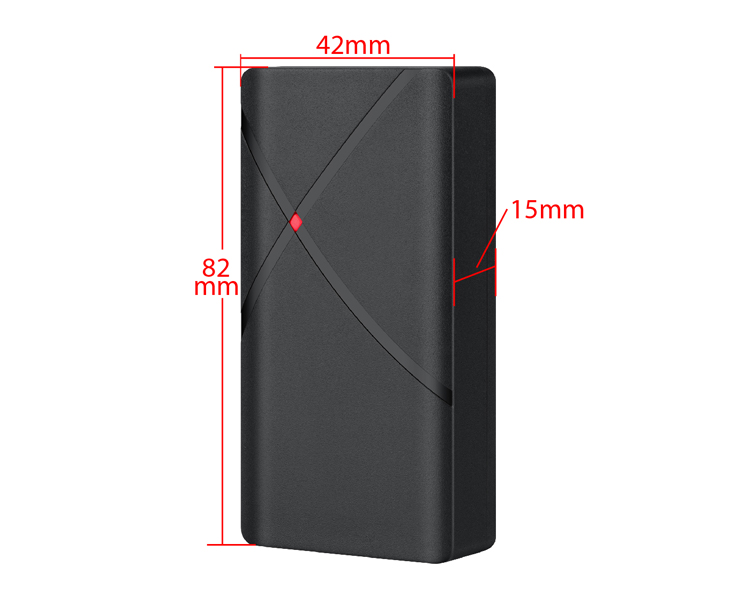

Mini RFID Card Reader Dimension.jpg

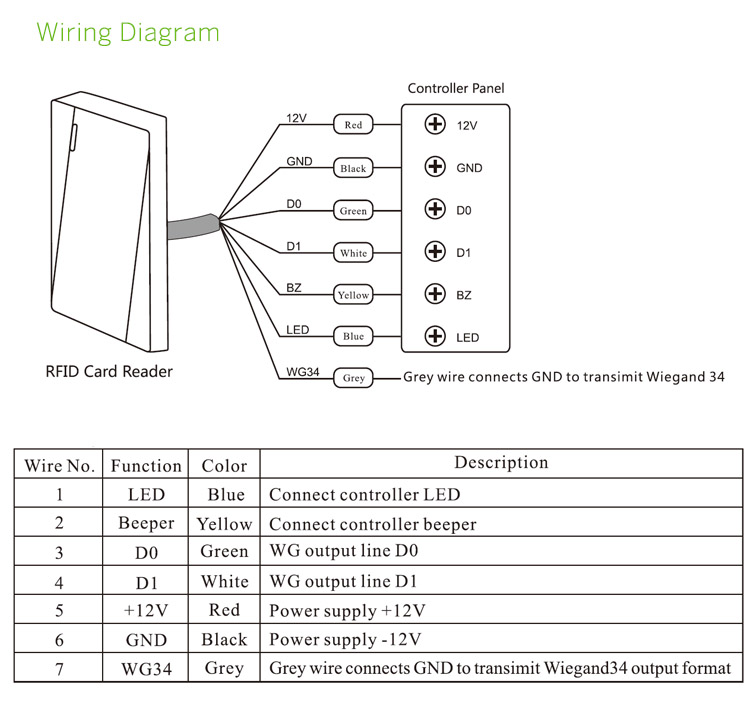

Access Control Card Reader Diagram.jpg
