U-M004

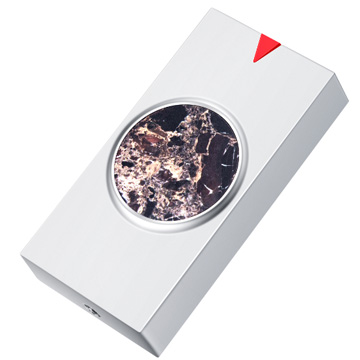

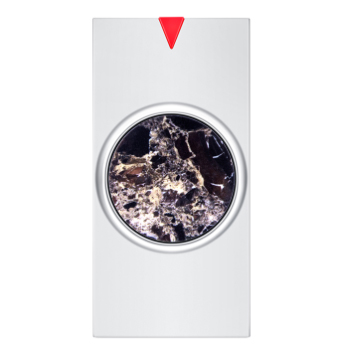

Proximity RFID Card Reader And Controller for Door Control System

JINYINGModel:

> U-M004EM: 125KHz RFID card reader

> U-M004MF: 13.56MHz Mifare card reader

Features

> Metal shell, anti-vandal

> Very low power consumption,standby current less than 30mA

> WG 26 output

> Fast Search speed : time between reading card and opening the door is less than 0.1S

Specification:

Product Parameter	Parameter Description
JINYINGModel	U-M004
Product Name	Proximity RFID Card Reader And Controller for Door Control System

Card type	EM/MF/HID
Waterproof degree	IP68
Working voltage	DC12V
Static electricity	≤35mA
Reading range	2-5(cm)
Ambient temperature	-40～60℃
Humidity	10%～90%
Wiegand Interface	WG26/34
Dimension	994919(cm)

Unit Weight	0.23KG
Standard Package	100PCS
Carton Weight	23KG
Carton Dimension	57.547.523.7(cm)

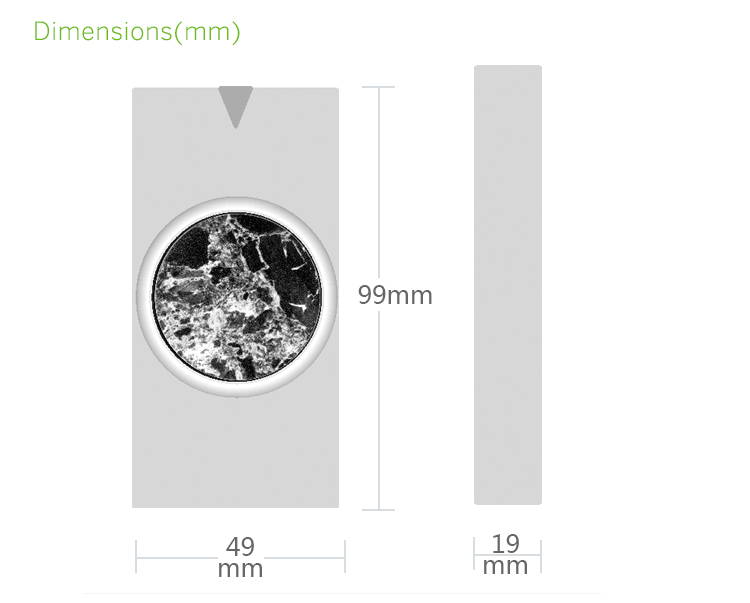

U-M004 Dimension.jpg

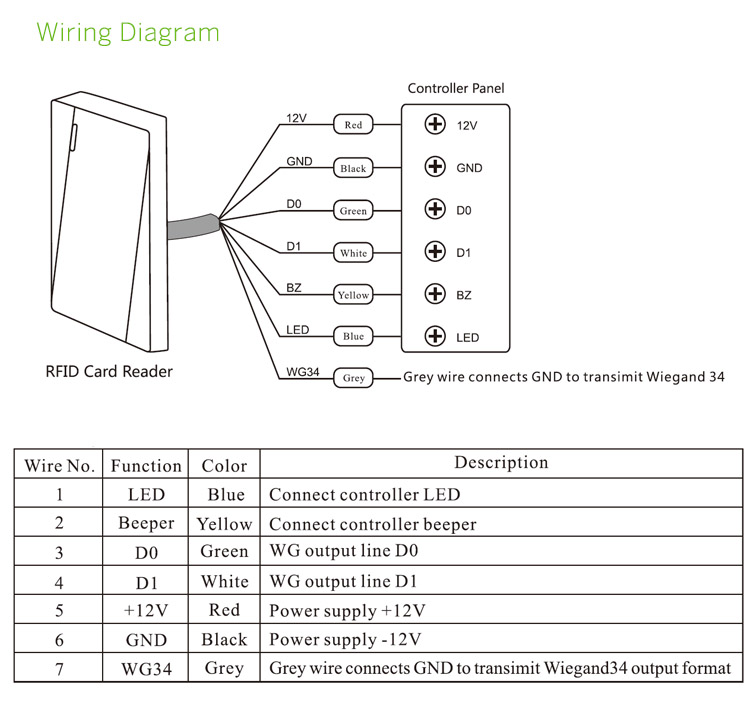

Wiegand Reader Wiring Diagram.jpg
