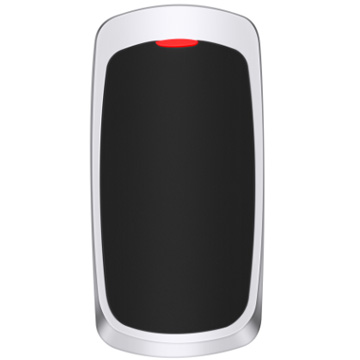

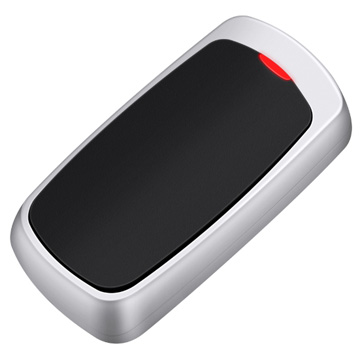

U-M005 IP68 Metal Case RFID Card Reader for Entry Solutions

Inquiry now

Parameters

Dimensions

Diagram

U-M005

IP68 Metal Case RFID Card Reader for Entry Solutions

JINYINGModel:

> U-M005EM: 125KHz RFID card reader

> U-M005MF: 13.56MHz Mifare card reader

Features

> Metal shell, anti-vandal

> Very low power consumption,standby current less than 30mA

> WG 26 output

> Fast Search speed : time between reading card and opening the door is less than 0.1S

Specification:

Product Parameter	Parameter Description
JINYINGModel	U-M005
Product Name	IP68 Metal Case RFID Card Reader for Entry Solutions

Card type	EM/MF/HID
Waterproof degree	IP68
Working voltage	DC12V
Static electricity	≤35mA
Reading range	2-5(cm)
Ambient temperature	-40～60℃
Humidity	10%～90%
Wiegand Interface	WG26/34
Dimension	954819

Unit Weight	0.22KG
Standard Package	100PCS
Carton Weight	22KG
Carton Dimension	57.547.523.7(cm)

U-M005 Dimension.jpg

Wiegand Reader Wiring Diagram.jpg
