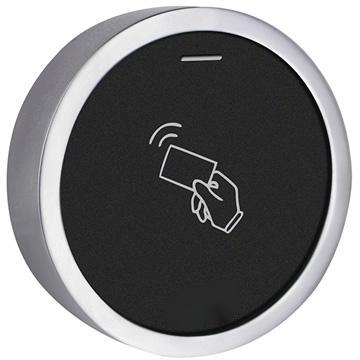

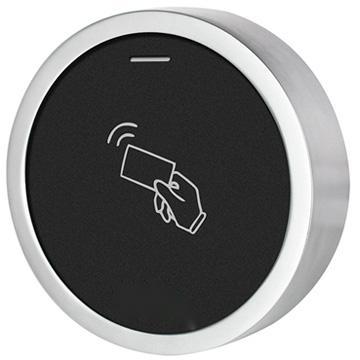

S7-R Round Design 125KHz Waterproof IP66 Metal RFID Wiegand 26/34 Reader

The S7-R (EM) reader is a metal case anti-vandal proximity reader._x000d_ Because of waterproof, it can be mounted either indoor or outdoor in harsh environments.

Model:
S7-R
Brand:
JINYING

Product Parameter	Parameter Description
JINYINGModel	S7-R EM
Product Name	Metal Standalone Access Control

Operating Voltage	9~24V DC
Frequency	125KHz
Card Type	EM Card
Reading Distance	3~8 CM
Output Format	Wiegand 26 bits
	(26~37 bits available upon request)
Operating Temperature	-40 oC ~ 60 oC (-40 oF ~ 140 oF)
Standby Current	< 25mA
Operating Humidity	10%~98% RH
Index of Protection	IP66
Dimensions	Diameter: 73mm, Thickness: 20mm
