S8-R Oval Design Access Control Metal Card Reader 125KHz Contactless Reader

The S8-R (EM) reader is a metal case anti-vandal proximity reader._x000d_ Because of waterproof, it can be mounted either indoor or outdoor in harsh environments.

Model:
S8-R
Brand:
JINYING

Product Parameter	Parameter Description
JINYINGModel	S8-R
Product Name	Metal Wiegand Reader

Operating Voltage	9~24V DC
Frequency	125KHz
Card Type	EM Card
Reading Distance	3~8 CM

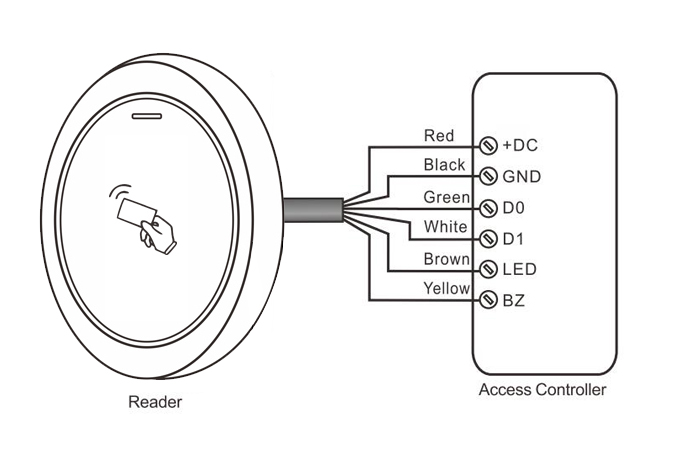

Output Format	Wiegand 26 bits
	(26~37 bits available upon request)
Operating Temperature	-40°C ~ 60°C (-40°F ~ 140°F)
Standby Current	< 25mA
Operating Humidity	10%~98% RH
Index of Protection	IP66

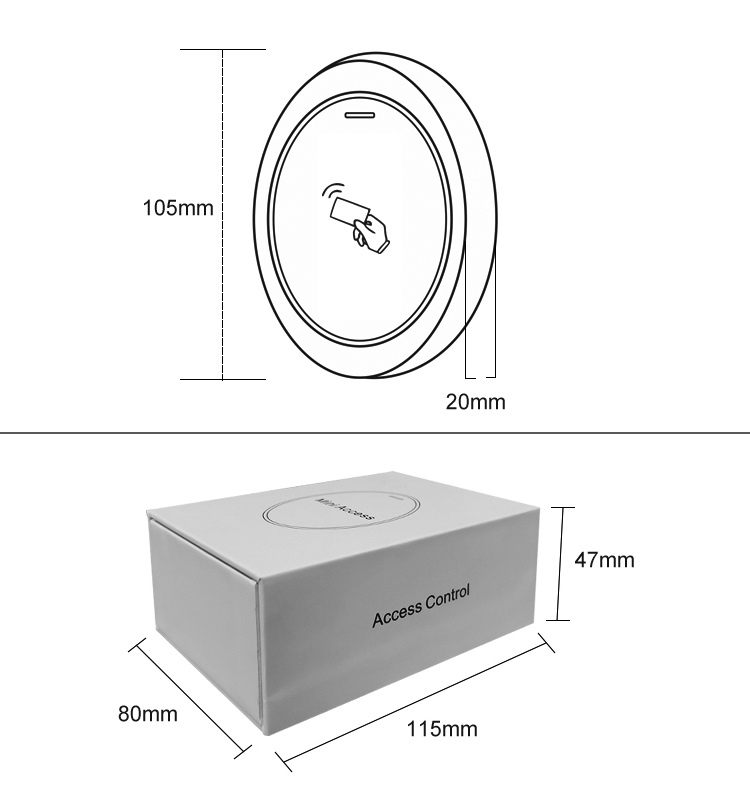

Dimensions	L105mm x W69mm x H20mm
