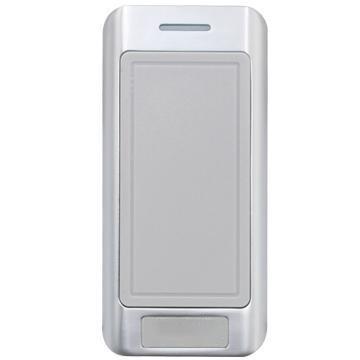

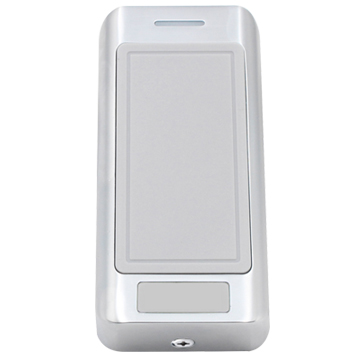

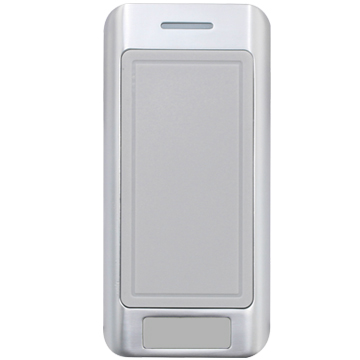

S9-R Metal Wiegand Reader (EM)

The S9-R (EM) reader is a metal case anti-vandal proximity reader._x000d_ Because of waterproof, it can be mounted either indoor or outdoor in harsh environments.

  • Model:

    S9-R

  • Brand:

    JINYING
Inquiry now
  • Parameters
    •
  • Dimensions
    •

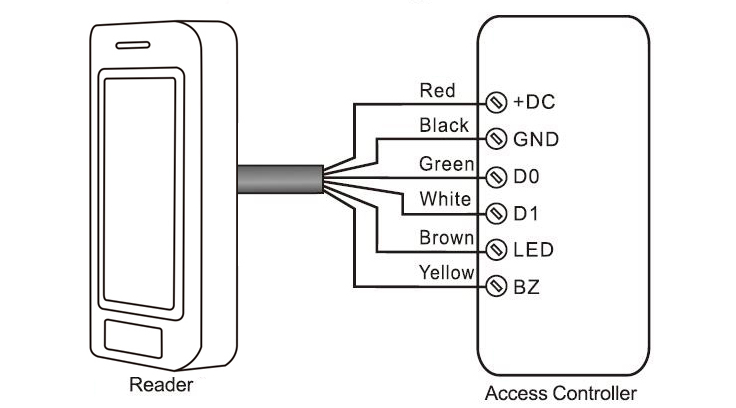

  • Diagram
    •

S9-R EM Metal Wiegand Reader (EM)

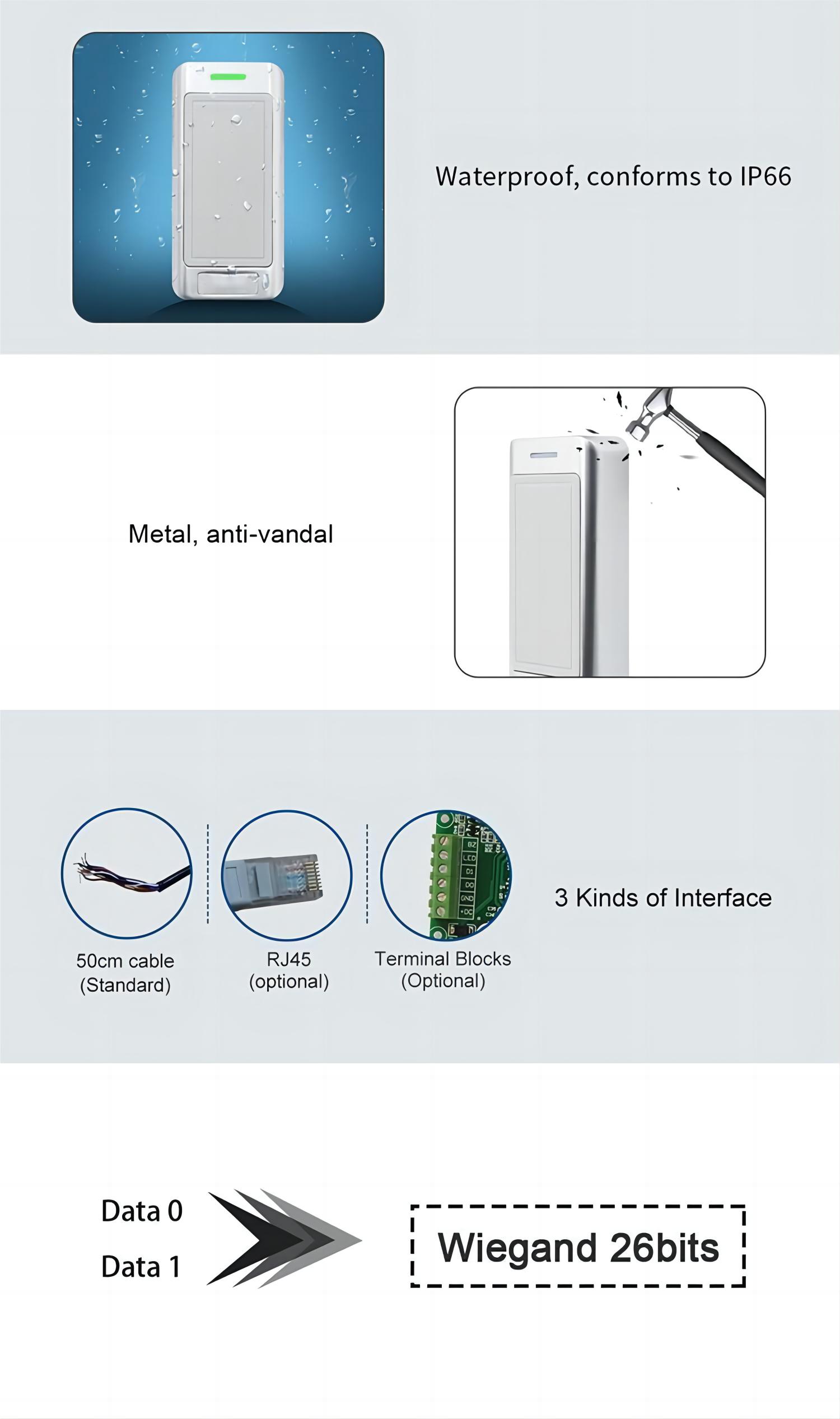

> Metal Case, anti-vandal

> Waterproof, conforms to IP66

> Wiegand 26output

> Card type: EM card

> Reading range: 3~8cm

> External LED Control & External Buzzer Control



Product ParameterParameter Description
JINYINGModelS9-R
Product NameMetal Wiegand Reader (EM)

Operating Voltage9~24V DC
Frequency125KHz
Card TypeEM Card
Reading Distance3~8 CM
Output FormatWiegand 26 bits
Operating Temperature-40°C ~ 60°C (-40°F ~ 140°F)
Standby Current< 25mA
Operating Humidity10%~98% RH
Index of ProtectionIP66
DimensionsL105 x W50 x H20 (mm)
