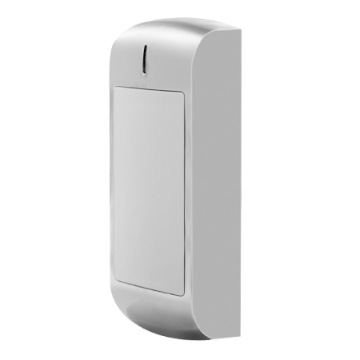

X1-RX IK10 Metal Wiegand Reader (EM HID MF)

The X1-RX is an IK10 certified reader, it is powerful in card reading type, can read 125KHz Hid & EM cards, 13.56MHz Mifare cards at the same time.
Because of metal case anti-vandal and waterproof, it can be mounted either indoor or outdoor in harsh environment.

  • Model:

    X1-RX

  • Brand:

    JINYING
Inquiry now
  • Parameters
    •

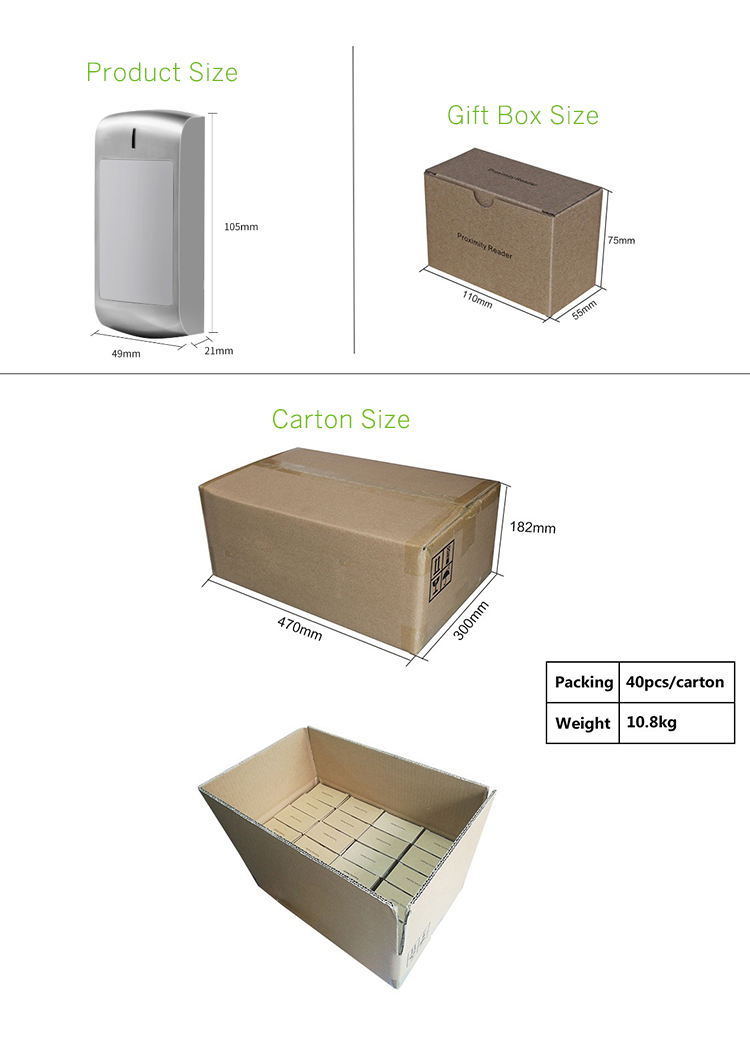

  • Dimensions
    •

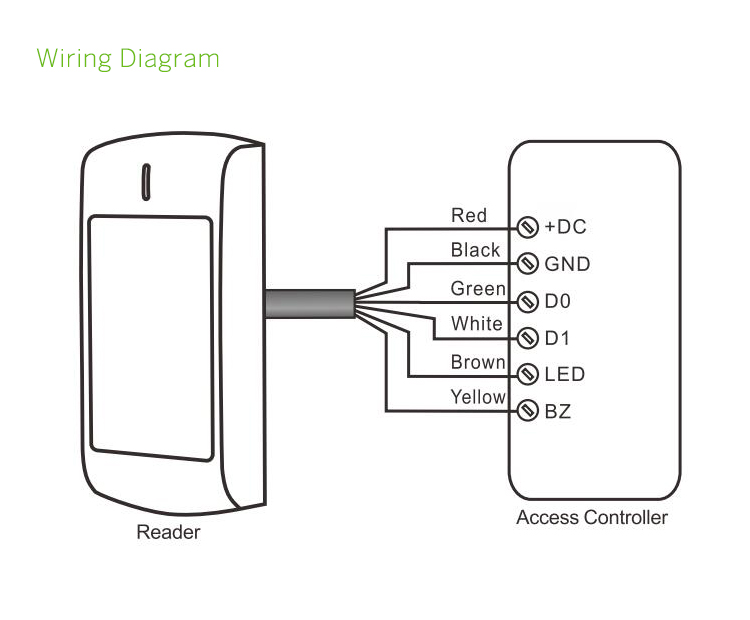

  • Diagram
    •

X1-RX

IK10 Metal Wiegand Reader (E/H/MF)


> IK10 anti collision

> Metal Case, anti-vandal

> Waterproof, conforms to IP66

> Wiegand 26~44, 56, 58 bits output

> Card Type: 125KHz Hid & EM cards, 13.56MHz NXP Mifare, Mifare Plus, DesFire, Mifare Pro,

    Mifare UltraLight, Mifare Class 4K cards

> Reading range: 3~8cm

> External LED Control & External Buzzer Control



Product ParameterParameter Descr1ption
JINYINGModelX1-RX
Product NameWiegand Reader (EM+HID+MF)

Frequency125KHz & 13.56MHz
Card Type125KHz - EM & Hid Card

13.56MHz - NXP Mifare,Mifare Plus, DesFire,

Mifare Pro, Mifare UltraLight, Mifare Class 4K cards

Reading Distance3~8 CM
Output FormatWiegand 26~44, 56, 58 bits
Operating Temperature-40 °C ~ 60 °C (-40 °F ~ 140 °F)
Standby Current< 25mA
Operating Humidity10%~98% RH
Index of ProtectionIK10 & IP66
DimensionsL105 x W49 x H21 (mm)

Unit Weight0.25kg
Standard Package40PCS/carton
Carton Weight10.8kg
Carton Size47*30*18.2(cm)
