Model:
EB-NT86SSBrand:
JINYING| Product Parameter | Parameter Description |
| JINYINGModel | EB-NT86SS |

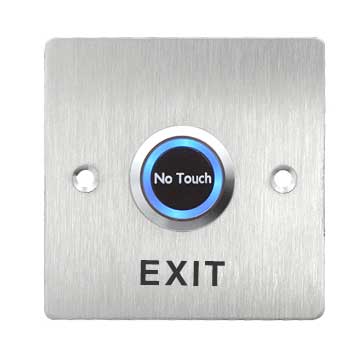

| Product Name | Infrared Sensor Exit Button |
| Material | 1.7mm Thick 304 Stainless steel |

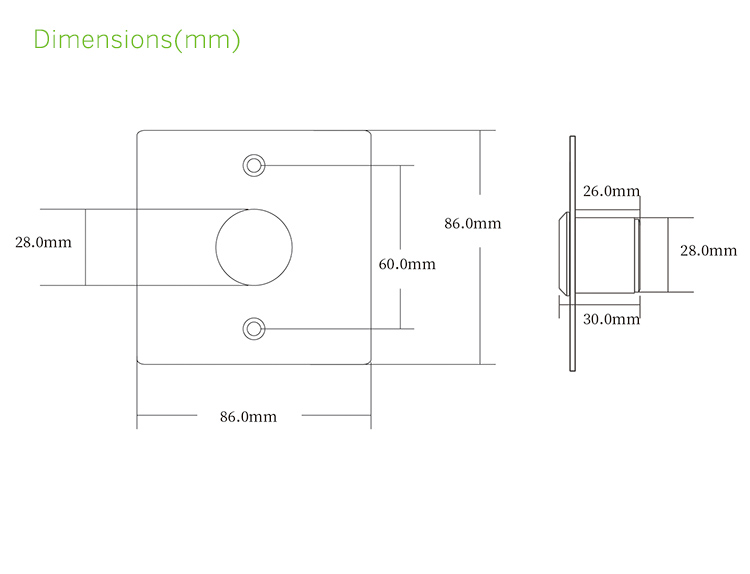

| Dimensions | 86Lx86Wx25H(mm) |
| Contact Rating: | 12-24V,3A |
| Power | 12VDC & 24VDC |
| Sensor distance | 5-10CM |
| Output | NO/NC/COM/+12/GND |
| Mechanical Life | 500,000 Tested |
| Operating Temp | -20℃~+55℃(14-131F) |
| Operating Humidity | 0-95%(relative humidity) |
| LED Indicator | Blue LED Indicator (Standby) |
| Green LED Indicator (Sensation) | |
| Suitable for Door | Hollow Door |
| LOGO | JINYINGcustomizable |
| Unit Weight | 0.13kg |
| Standard Package | 100PCS/carton |
| Carton Weight | 14KG |
| Carton Size | 51*45*24cm |
