| Product Parameter | Parameter Description |
| JINYINGModel | EB-11W |
| Product Name | Touch Sensor Exit Button |

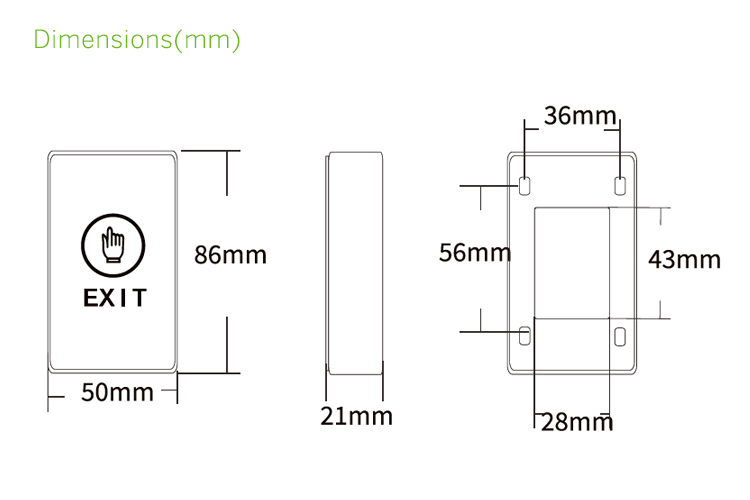

| Dimensions | 86Lx50Wx21H(mm) |
| Input | DC12V-24V |
| Contact Rating | 3A / 125-250AC |
| Output Contact | NO/NC/COM |
| Mechanical Life | 500000 tests |
| Suitable for Door | Hollow Door |
| Operating temp | -20℃～+55℃(14-131F) |
| Suitable Humidity | 0-95% (relative humidity) |
| Unit Weight | 0.083KG |
| Standard Package | 100PCS/carton |
| Carton Weight | 8.5KG |
| Carton Size | 50*45*24(cm) |
