| Product Parameter | Parameter Description |
| JINYINGModel | EB-PV7 |
| Product Name | Mini Plastic Exit Button |

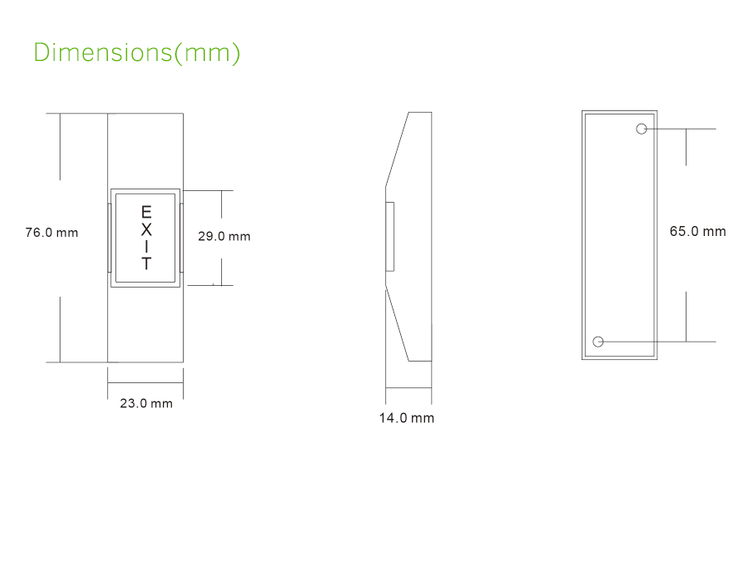

| Dimensions | 76Lx22Wx14H(mm) |
| Material | Fireproof |
| Installation Mode | Surface Mount |
| Input | DC12V |
| Contact Rating | 3A/125-250VAC |

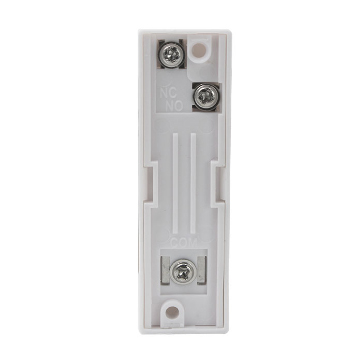

| Output Contact | NO/COM |
| Mechanical Life | 500000 tests |
| Suitable for Door | Hollow Door |
| Operating temp | -20℃～+55℃(14-131F) |
| Suitable Humidity | 0-95% (relative humidity) |
| Unit Weight | 0.016KG |
| Standard Package | 10PCS/Bags |
| Carton Weight | 0.2KG |
