Model:
EB-S86LSBrand:
JINYING| Product Parameter | Parameter Description |
| JINYINGModel | EB-S86LS |

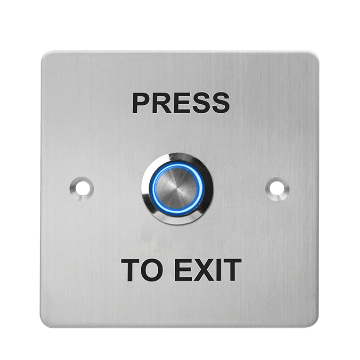

| Product Name | 304 Stainless Steel Exit Button |

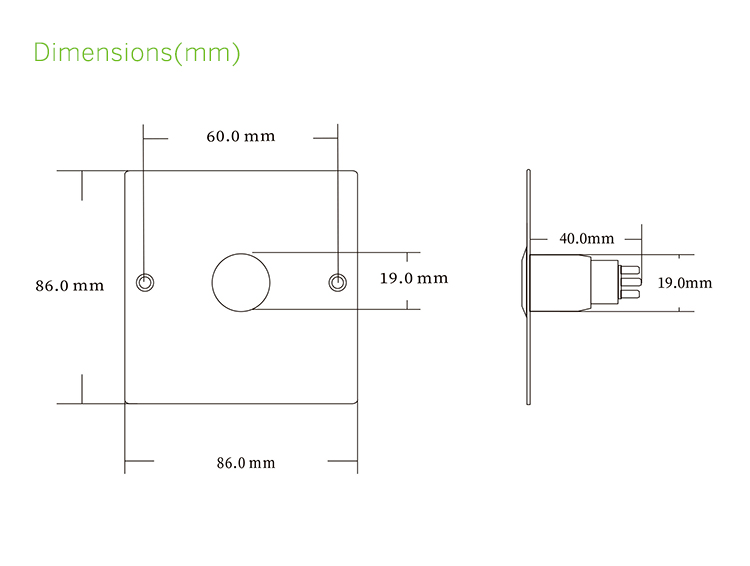

| Dimensions | 86Lx86W(mm) |
| Panel | 1.7mm Thick 304 Stainless Steel (Wire Drawing) |
| Input | 12VDC or 24VDC |
| Contact Rating | 3A/125-250VAC |
| Output Contact | NO/COM/+12V/GND |
| Mechanical Life | 500000 tests |
| Suitable for Door | Hollow Door |
| Operating temp | -20℃～+55℃(14-131F) |
| Suitable Humidity | 0-95% (relative humidity) |
| LED Color | Default Blue, Optional customized |
| LOGO | JINYINGCustomizable |
| Unit Weight | 0.15KG |
| Standard Package | 100PCS/carton |
| Carton Weight | 15KG |
| Carton Size | 50*45*28(cm) |
