Model:
EB-S86KLBrand:
JINYING| Product Parameter | Parameter Description |
| JINYINGModel | EB-S86KL |
| Product Name | Key Switch |

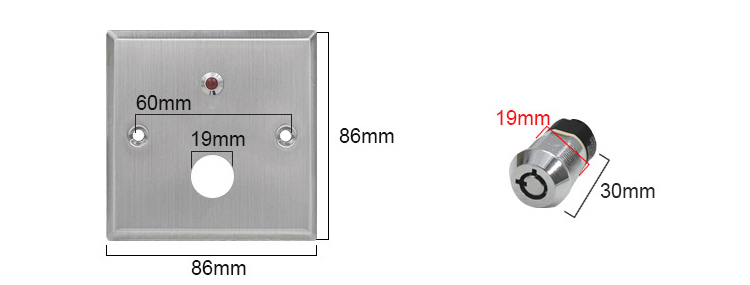

| Dimensions | 86Lx86W(mm) |
| Material | Stainless Steel |
| Output Contact | SPDT ( NO/NC/COM ) |
| Key | Round Key |
| LED | Red |
| Installation Diameter | 19mm |
| Input | DC12V |
| Contact Rating | 3A/125-250VAC |
| Mechanical Life | 500000 tests |
| Operating temp | -20℃～+55℃(14-131F) |
| Suitable Humidity | 0-95% (relative humidity) |
| Unit Weight | 0.147KG |
| Standard Package | 100PCS/carton |
| Carton Weight | 15.5KG |
| Carton Size | 50*45*28(cm) |
