| Size | 5 inch | 6 inch |
| Model | JINYING-E | JINYING-E |
| Weight Capacity | <=30KG/pcs | <=45KG/pcs |
| Door Width | <=1050mm | <=1200mm |
| Service Life | More than 300,000 times | More than 500,000 times |

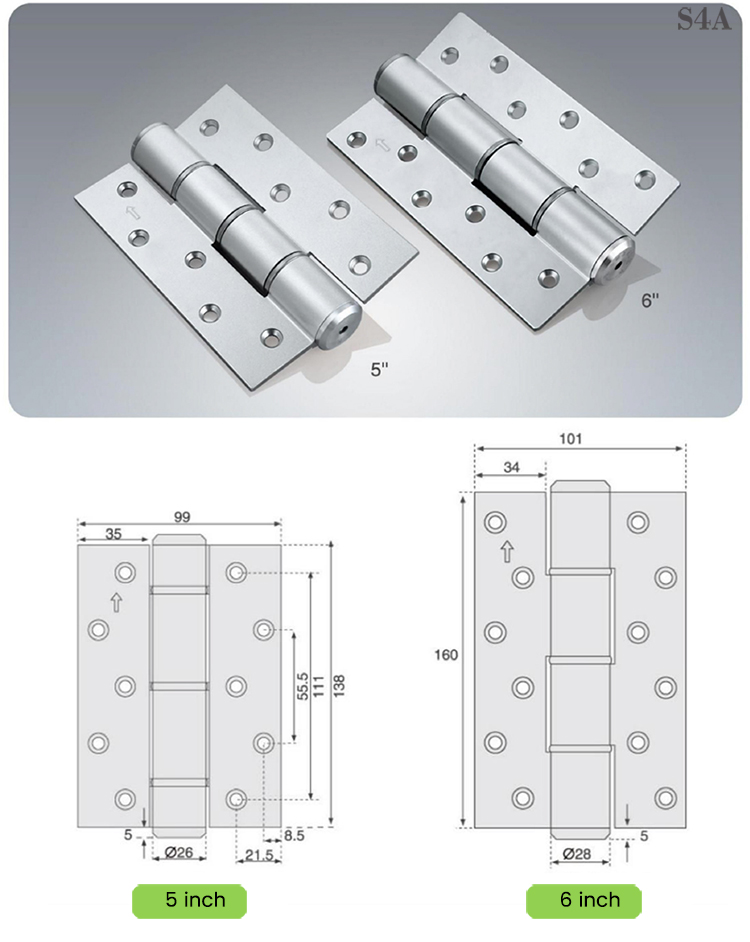

| Size (mm) | 148x100xØ26 Page size: 138x36x3.5 | 170x101xØ28 Page size: 160x36x3.5 |
| Slotting Method | Width of grooves is 35+0.5-0mm, depth of single grooves is 4mm | |
| Opening Direction | Open in one direction, maximum angle 175°. Installed in the left and right direction | |
| Temperature | (-30℃ ) ~ 60℃ | |
| Suitable | Fire doors, wooden doors, aluminum doors etc. Hotel, KTV, office building, door and other indoor door. | |
| Note | Stainless Steel sheet thickness 3mm | |
| Speed control | The closing and closing spped of the upper and lower ends can be adjusted freely. | |
| Function | With hydraulic, three-speed buffer, shock absorption function. Optional 90° positioning function and 180° automatic function. | |


5 inch Hinge Selection And Load Bearing Data:
| Door Weight | Door Size | Qty | Remarks |
| <=30kg | <=2000mm x 700mm | 1pcs Hydraulic + 1pcs Bearing Page | Use 2 Hydraulic Hinges is better |
| <=50kg | <=2000mm x 900mm | 2pcs Hydraulic Hinges | Door Height>2100mm add 1 pcs Bearing Hinge in the middle Use 3 Hydraulic Hinges is better |
| <=50kg | <=2000mm x 1100mm | 3pcs Hydraulic Hinges |
6 inch Hinge Selection And Load Bearing Data:
| Door Weight | Door Size | Qty | Remarks |
| <=45kg | <=2000mm x 700mm | 1pcs Hydraulic + 1pcs Bearing Page | Use 2 Hydraulic Hinges is better |
| <=75kg | <=2000mm x 900mm | 2pcs Hydraulic Hinges | Door Height>2100mm add 1 pcs Bearing Hinge in the middle Use 3 Hydraulic Hinges is better |
| <=110kg | <=2000mm x 1100mm | 3pcs Hydraulic Hinges |
