| Product Parameter | Parameter Description |
| 金颖 Model | WR1-W |

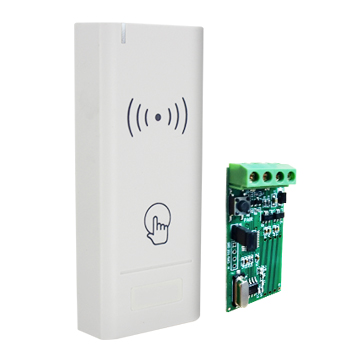

| Product Name | Wireless Wiegand Reader |
| Wireless Keypad Reader | |
| Card Type | 125KHz EM card |
| Operating Voltage | 3 units of AAA batteries |
| Idle Current | ≤5uA |
| Working Current | ≤35mA |
| Reading Distance | ≤3cm |
| Communication Frequency | 433MHz |
| Communication Distance | 30m Maximum |
| Operating Temperature | -20°C～+60°C (-4°F～+140°F) |
| Operating Humidity | 0%～86% |
| Index of Protection | IP65 |
| Color | Black, White optional |

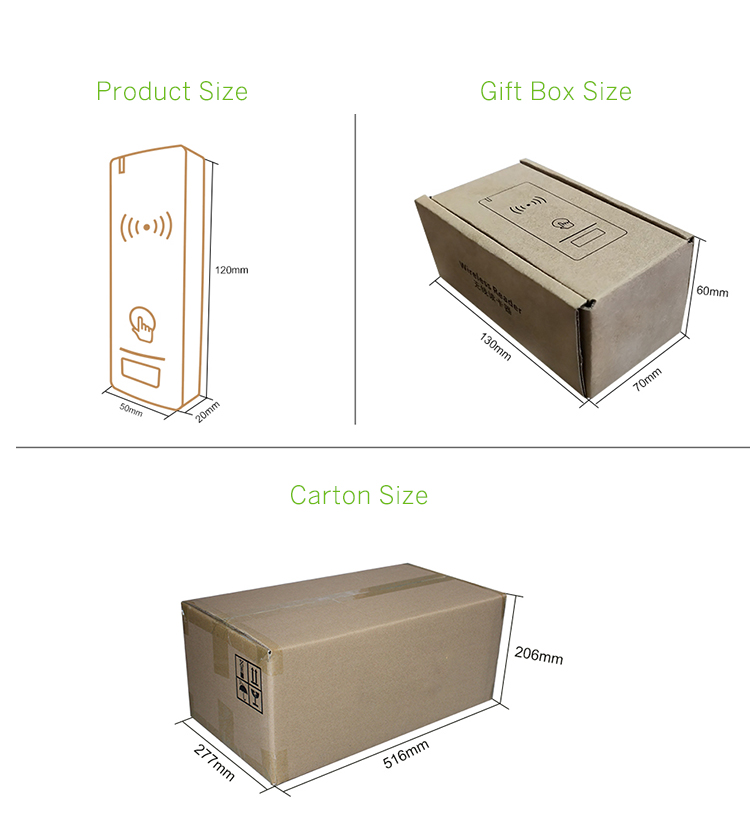

| Dimensions | L120 * W50 * H20 (mm) |
| Net Weight | 88g |
| Receiver | |
| Operating Voltage | 12V DC |
| Working Current | ≤15mA |
| Communication Frequency | 433MHz |

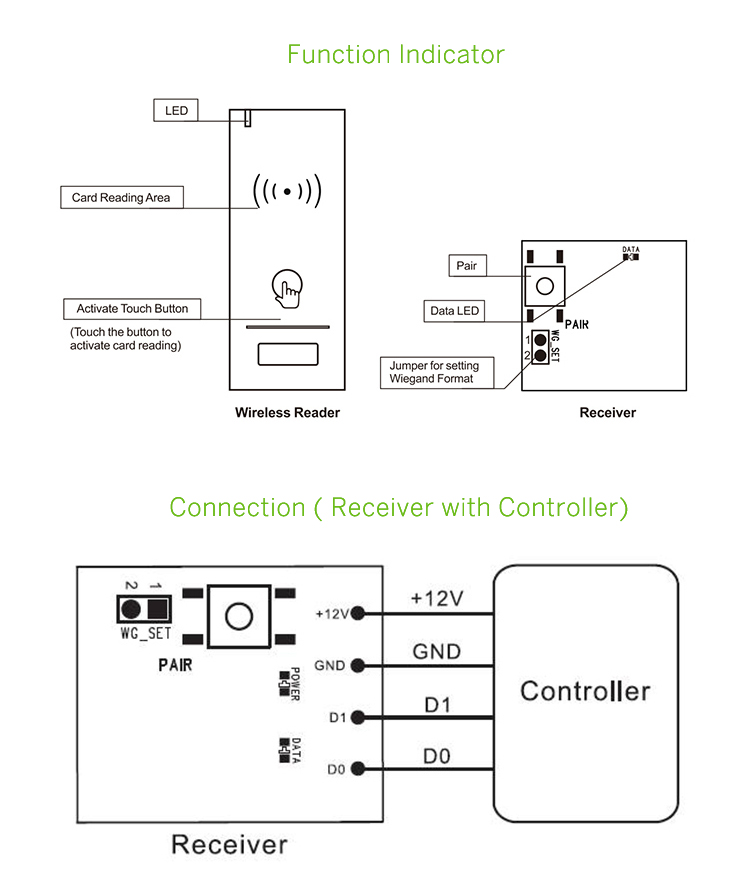

| Wiegand Output Format | 26 bits Or 34 bits (Default is 26 bits) |
| Operating Temperature | -20°C～+60°C (-4°F～+140°F) |
| Operating Humidity | 0%～86% |
| Dimensions | L25 * W50 (mm) |
| Net Weight | 10g |
