| Product Parameter | Parameter Description |
| 金颖 Model | WS1 |
| Product Name | Wireless Access Control Kits |
| User Capacity | 100 |
| PIN Length | 4-6 digits |
| Card Type | 125KHz EM / 13.56MHz Mifare card (optional) |
| Operating Voltage | |
| Wireless Lock | 2 units of AA batteries |
| Wireless Keypad | 3 units of AAA batteries |
| Wireless Exit Button | 1 units of 2032 Lithium battery |
| Remote Transmitter | 1 unit of 2032 Lithium battery |
| Idle Current | All items < 10uA |
| Working Current | |
| Wireless Keypad | < 50mA |
| Wireless Lock | < 42mA |
| Wireless Exit Button | < 3mA |
| Remote Transmitter | < 3mA |
| Communication Frequency | 433MHz |
| Communication Distance | 30m Maximum |
| Operating Temperature | |
| Wireless Lock | -20°C~+60°C (-4°F~+140°F) |
| Wireless Keypad | -40°C~+60°C (-40°F~+140°F) |
| Operating Humidity | |
| Wireless Lock | Zinc-Alloy |
| Others | ABS Shell |

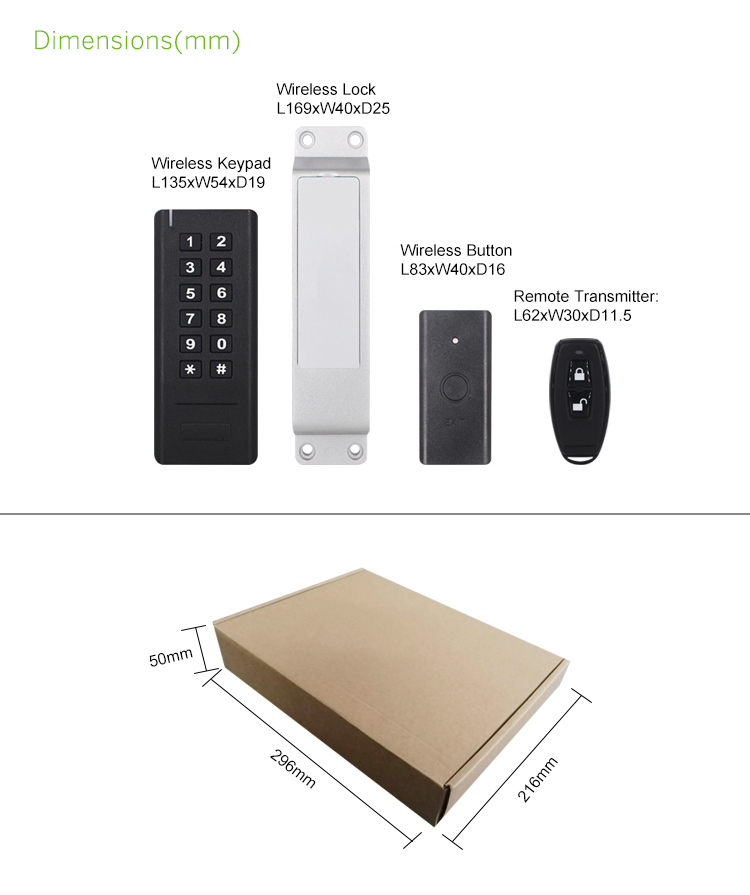

| Dimensions | |
| Wireless Keypad | L135 x W54 x D19(mm) |
| Wireless Lock | L170 x W39 x D25(mm) |
| Wireless Exit Button | L83 x W40 x D16(mm) |
| Remote Transmitter | L62 x W30 x D11.5(mm) |
| Unit Weight | 570g |
| Wireless Keypad | 90g |
| Wireless Lock | 400g |
| Wireless Exit Button | 30g |
| Remote Transmitter | 25g/pc |
